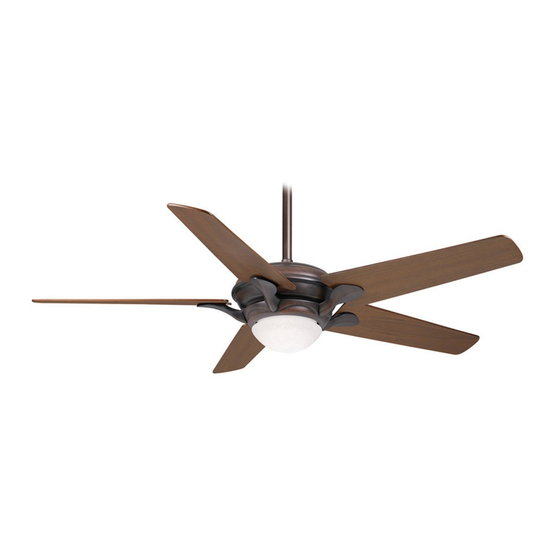

Casablanca BEL AIR Owner's Manual

Hide thumbs Also See for BEL AIR:

Advertisement

Quick Links

See also: Owner's Manual , Instruction Manual
INTRODUCTION
MOUNTING RECOMMENDATIONS
FAN INSTALLATION
CONTROL FEATURES:
INTELI•TOUCH OPERATION
INTELI•TOUCH TROUBLESHOOTING
ADVAN•TOUCH OPERATION
ADVAN•TOUCH TROUBLESHOOTING

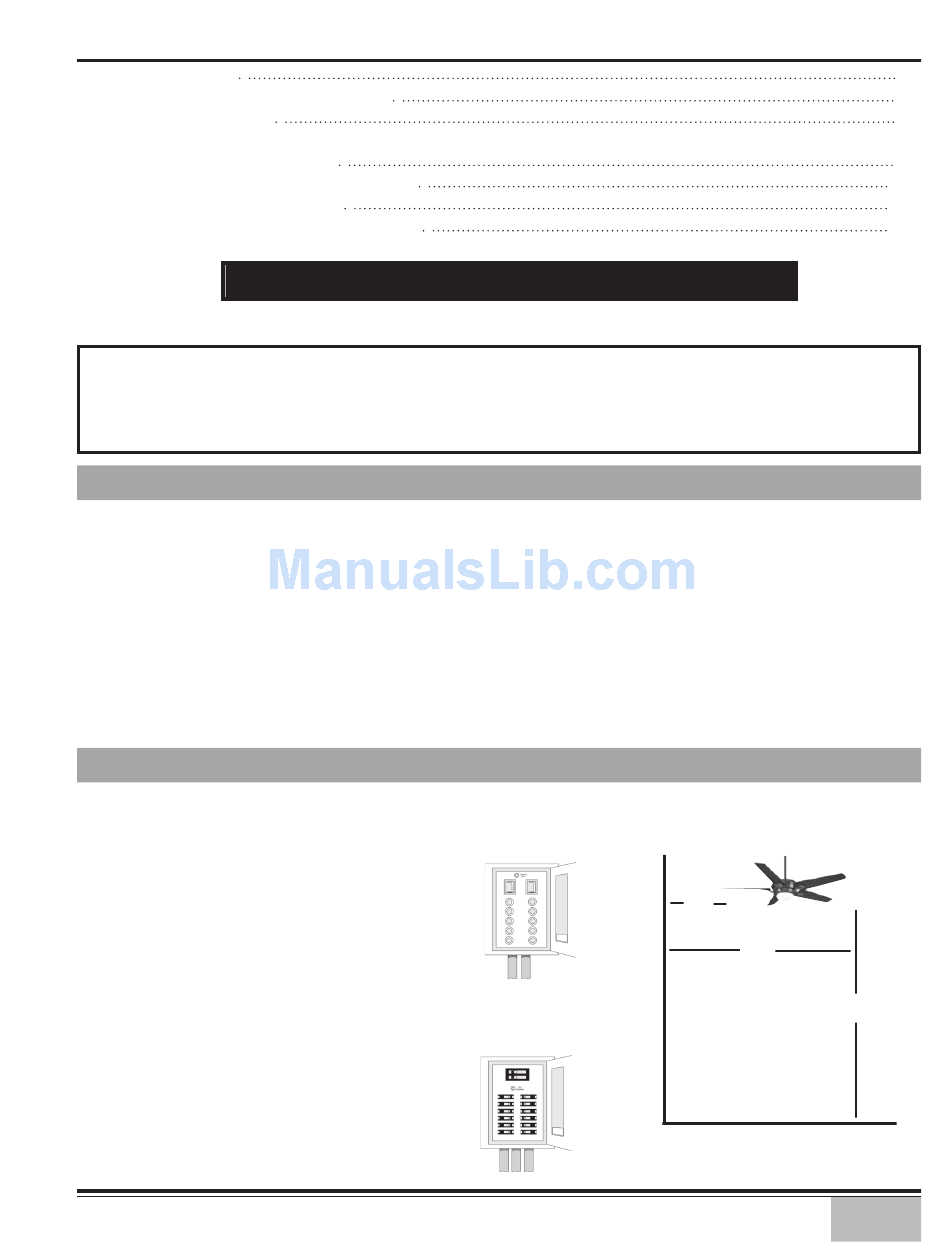

Safety and the proper operation of your Casablanca fan both require a thorough knowledge of the product and
proper installation; therefore, before attempting to install and operate your Casablanca fan, read this owner's
manual completely and carefully. Retain this manual for future reference.
CAUTION: To avoid possible electrical shock, make certain that electricity is turned off at the
circuit breaker or fuse box before attempting any installation procedure.
• CAUTION: RISK OF ELECTRICAL SHOCK! All wiring must be performed in accordance with national and local electrical codes. If
you are unfamiliar with the wiring codes, you should use a qualified electrician. To avoid overheating and possible damage to other
equipment, do not install control to a receptacle, fluorescent light fixture, motor operated appliance, or transformer-supplied appli-
ance..
• This fan is designed to be installed on an existing electrical outlet box. The outlet box must be UL Listed for ceiling fan installations, if
it is not, a new box must be installed. Casablanca extension poles are available for sloped or high ceiling installations.
• This ceiling fan requires a grounded electrical supply of 120 V AC, 60 Hz and a minimum 15 amp circuit. The maximum current require-
ment for the fan with light fixture is 3.8 amps. The fan uses about 1 amp or 100 watts. Maximum light current is 2.8 amps or 340 watts
of lighting.
• Where wire nuts are employed, be sure all bare wires are within the connectors. When installing the canopy hatch, make sure all wires
are within the canopy and that no wires are being pinched.
For best performance and for your warranty to be valid, use only genuine
• The blades in each pack are matched for equal
weight to assure smooth fan operation. If more
than one fan is being installed, be careful not to
mix blades from different cartons.
• Inspect the contents of your carton for possible
shipping or handling damage and report any such
damage directly to your authorized Casablanca
dealer.
• It is always a good idea to have an assistant to help
with the installation.
• When cleaning, painting, or working near your fan,
be very careful of the fan and blades. Always turn
the power OFF to the ceiling fan before servicing
it, working on it, or replacing light bulbs.
• Never insert anything into the path of the fan blades
while the fan is in operation.
• Never install a fan over a pool or spa.
• Never operate a fan that has been damaged in any
way. Contact Casablanca Fan Company by calling
1-888-227-2178, or contact your local authorized
Casablanca dealer for assistance in obtaining
service.
CONTENTS
READ AND SAVE THESE INSTRUCTIONS

SAFETY FIRST

BEFORE YOU START
Casablanca blades, light fixtures, and accessories.
SAFE USE
PN 1943660
FUSE BOX
(remove fuse for The
circuiT you will be
working on)
CIRCUIT BREAKER
(Trip breaker for The
circuiT you will be
working on)
AT0608
18"
70"
84"
1
1
2
3
8
11
12
15

Advertisement

loading

Related Manuals for Casablanca BEL AIR

Summary of Contents for Casablanca BEL AIR

  • Page 1: Safety First

    • Where wire nuts are employed, be sure all bare wires are within the connectors. When installing the canopy hatch, make sure all wires are within the canopy and that no wires are being pinched. For best performance and for your warranty to be valid, use only genuine Casablanca blades, light fixtures, and accessories. SAFE USE • The blades in each pack are matched for equal FUSE BOX weight to assure smooth fan operation. If more...
  • Page 2 MOUNTING RECOMMENDATIONS Before mounting your Casablanca fan, read the following helpful recommendations. The location of the fan, air circulation, and fan size are all important factors to consider before installation. Location Ceiling fans have practical uses in almost every room in your home. We suggest you follow these mounting recom- mendations as you decide where to install your Casablanca fan. • For safety reasons, the fan blades must be a minimum of 7” above the floor. • Do not locate the fan in a doorway or above a swinging door. • In any installation, the tips of the blades must be at least 18” from the wall in order to provide sufficient clearance for the blades.

  • Page 3: Important Safety Information

    WASHER (2) BRACKET GETTING STARTED Installing a New Ceiling Fixture Outlet box Using Existing Ceiling Fixture Outlet box If you do not have an existing fixture located where you wish After turning the power OFF at its source (either circuit to place your Casablanca fan, an approved ceiling fixture outlet breaker or fuse box), lower the old fixture and disconnect box must be installed and wired. the wiring. Check the ceiling fixture outlet box to be sure that it is marked ‘Approved for ceiling fan mounting’. If it is Warning: To reduce the risk of fire, electrical shock, or not, a new box must be installed. personal injury, mount to outlet box marked acceptable for ceiling fan support using the mounting hardware provided with the outlet box.
  • Page 4 CROSSBAR MOUNTIING BRACKET INSTALLATION Proceed with installation as follows: Step 1. Route the wires from the ceiling outlet box through CEILING the crossbar mounting bracket center hole. Attach the APPROVED bracket, with ground wire and ridges down, to the ceiling OUTLET fixture outlet box with the mounting hardware included with RIDGE...
  • Page 5 ® INSTALLING THE FAN BODy TOP COVER iMPortaNt! To avoid possible damage to the Halogen bulb holder the fan must be placed on the styrofoam packaging from the box. After removing the top cover from the upper half of the TOP COVER styrofoam, take the packaging from the box and RETAINING...
  • Page 6 HANGING THE FAN Step 7. To hang the fan body in the canopy, hold the fan body firmly and insert the ball into the canopy opening. Check that no wires were pinched. Rotate the fan body until the slot in the ball fits into the pin opposite the canopy opening.
  • Page 7 ® BLADE HOLDER HARDWARE BLADE SCREW (4 FLAT WASHER PER BLADE) (4 PER BLADE) CENTER STYLE BLADE HOLDER & BLADE BLADE SCREW Step 12. blade Installation (4 PER BLADE) Attach the blades to the blade holders with four blade FLAT WASHER screws and four steel washers (4 PER BLADE) provided for each blade. Hand tighten securely. INSTALLING THE HALOGEN BULB Step 13. Screw the 100 Watt Halogen bulb into the socket.
  • Page 8 For this reason the following precautions must be observed: 1. Use only the Casablanca W-32 wall control. 4. No other light fixtures or electrical appliances may be 2.

  • Page 9: Automatic Demonstration Program

    Inteli•Touch ® INTELI•TOUCH OPERATION POWER The POWER button is normally left in the on position. Always turn the power off during cleaning or servicing the fan and during thunderstorms. It is also used to exit or enter additional programs. POWER must be left on to retain a previously set fan speed or light level.
  • Page 10 Inteli•Touch ® INTELI•TOUCH OPERATION LIGHT -MINDER PROGRAM The Light-Minder program automatically turns OFF the fan mounted lights after two hours. To enter the Light-Minder Program: 1. Turn the POWEROFF for at least three seconds. POWER 2. Turn the POWER 3. Immediately operate the buttons in the following sequence: LIGHT LIGHT 4.
  • Page 11 Never Lubricate this Fan! should be used to prevent scratching the finish. A vacuum cleaner The precision motor at the heart of your Casablanca fan features brush nozzle can remove heavier dust. Surface smudges or an ac- sealed bearings that are lubricated for life. Do not attempt to oil cumulation of dirt and dust can easily be removed by using a mild the motor.
  • Page 12 •T ® DVAN OUCH SAFETy FIRST Warning: To reduce the risk of electrical shock, this fan must be installed with an isolating wall control/switch. ADVAN•TOUCH W-62 bRACkET/HOLSTER REMOVAL Step 1. Remove the two 6-32 x 5/16” screws holding the bracket to the holster.
  • Page 13 •T ® DVAN OUCH ADVAN•TOUCH bATTERy INSTALLATION Open Battery Door Install 4 “AAA” alkaline by pressing down on batteries in the space the insert tab pro- provided. Please observe vided. proper polarity placement. Replace Battery Door. BATTERY – – DOOR ADVAN•TOUCH IMPORTANT OPERATING NOTES Power turned off, interrupted or failure: The remote control is battery operated, therefore if the power is turned off, interrupted or you experience a power failure,...
  • Page 14 •T ® DVAN OUCH SECURITy FEATURE Pressing the ‘SECURITY’ button will start the Security lighting program. The controller beeps and indicates ‘SECURITY’ . The light will automatically turn ON and OFF in a seemingly random manner over an eight and a quarter hour programmed cycle that is designed to give the home a “lived-in”...
  • Page 15 Increase the separation between the equipment and receiver, Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Note: Any changes or modifications to the transmitter or receiver not expressly approved by Casablanca Fan Company may void one’s authority to operate this...
  • Page 16 PRODUCT SPECIFICATIONS ® ® Model Name: Bel Air Motor: XLP-2000 Model Number: 38xxA/T Blade Span With: 55" Blade Pitch: 14° Dimensions: 8.6" No. of Blades: B = 13.9" Advan•Touch ® Technology: W-62 2.8" Inteli•Touch ® W-32 D = 12.2" 100-watt halogen (1) Lightbulbs: 5.6"...
