Section 3 - Configuration

PORT TRIGGERING

Some applications require that specific ports in the Router's firewall be opened for access by the remote parties. Application rules dynamically open

up the Firewall ports when an application on the LAN initiates a TCP/UDP connection to a remote party using the Trigger ports. The router allows

the remote party from the WAN side to establish new connections back to the application on the LAN side using the Firewall ports. A maximum of

16 entries can be configured.

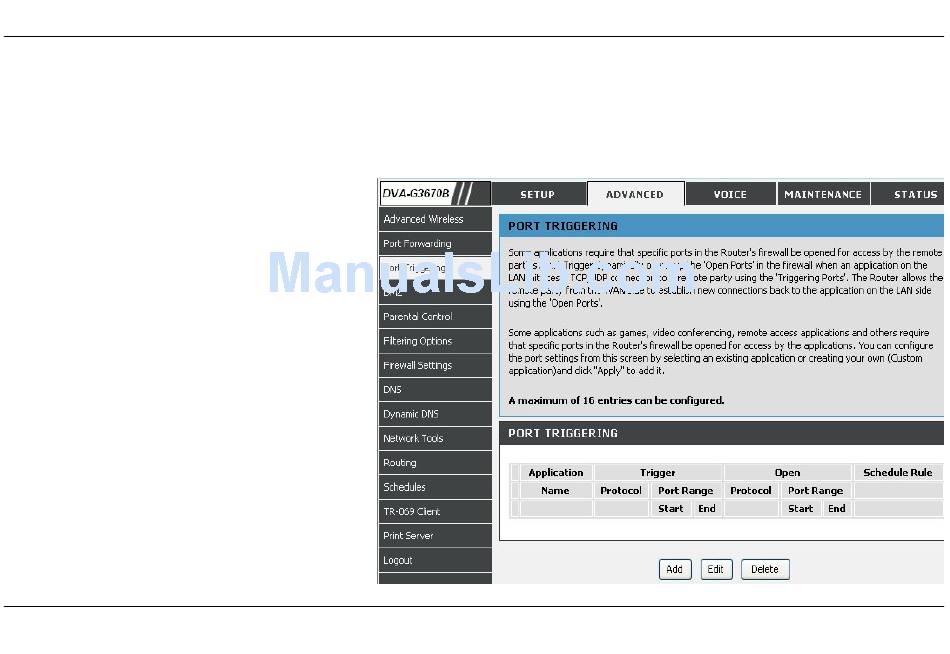

To access the PORT TRIGGER setting window, click on the PORT TRIGGER button in the ADVANCED directory.

PORT TRIGGER

Click Add button to set Port Forwarding Setup setting
