Section 1 - Product Overview
Power
Steady green light indicates the
unit is powered on. When the
device is powered off this
remains dark.
LAN
A solid green light indicates a
valid link on startup. These lights
blink when there is activity
currently passing through the
Ethernet port.
D-Link DVA-G3670B User Manual

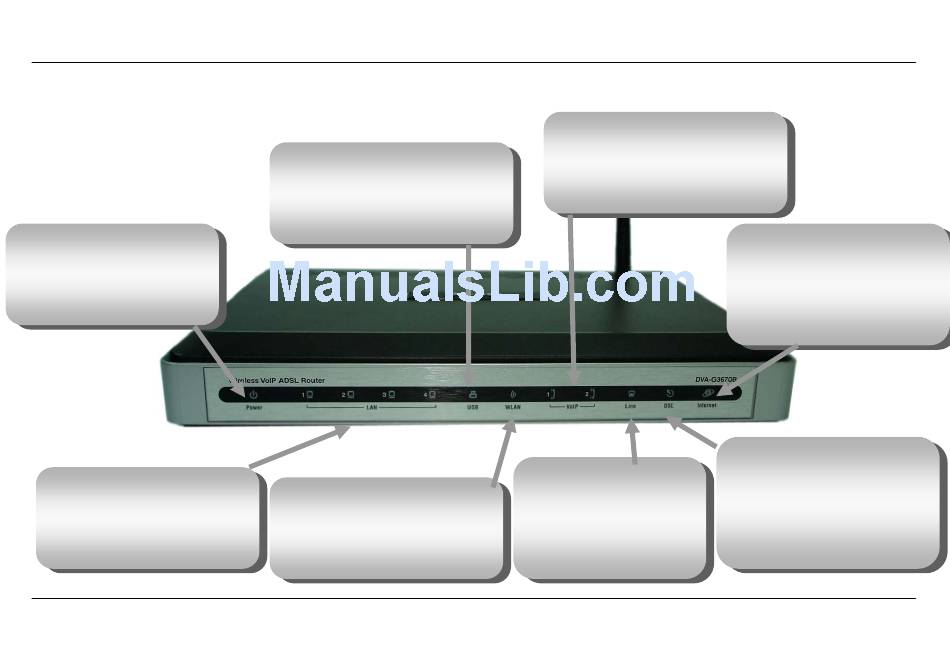

Hardware Overview

LEDs

USB
Steady green light indicates a valid
USB connection. This will light after
the USB negotiation process has
been settled. A blinking green light
indicates transmission on USB port
WLAN
Steady green light indicates a
wireless connection. A blinking green
light indicates activity on the WLAN
interface
VoIP
A solid green light indicates SIP
successful registration. These lights
blink when call is ringing or
connected. Dark if SIP registration is
failure
PSTN
A solid green light indicates a
valid PSTN connection.
These lights blink when call is
ringing or connected.
Internet
Steady green light indicates a
successful Internet connection.
Steady red light indicates failed
Internet connection. Dark if no
WAN protocol is configured.
interface.
DSL
Steady green light indicates a
valid ADSL connection. This will
light after the ADSL negotiation
process has been settled. A
blinking green light indicates
activity on the WAN (ADSL)
interface.
