Section 3 - Configuration

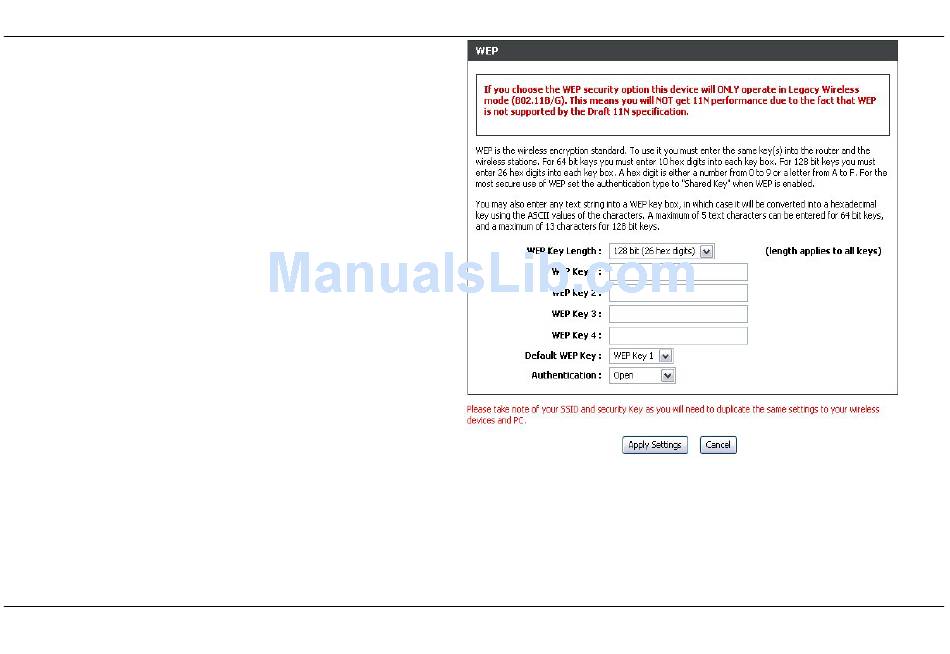

WIRELESS SECURITY MODE - WEP

WEP (Wireless Encryption Protocol) encryption can be enabled for

security and privacy. WEP encrypts the data portion of each frame

transmitted from the wireless adapter using one of the predefined

keys. The router offers 64 or 128 bit encryption with four keys

available.

Select WEP Key Length from the drop-down menu. (128 bit is

stronger than 64 bit)

Specify the encryption key from the Current Network Key drop-down

menu.

Enter the key into the WEP Key field 1~4. (Key length is outlined at the

bottom of the window.)

Select Authentication type from the drop-down menu. (Shared is

better than Open)

Click on the Apply Settings button to apply settings.
