Peer To Peer - D-Link DVA-G3670B User Manual

Section 3 - Configuration

PEER TO PEER

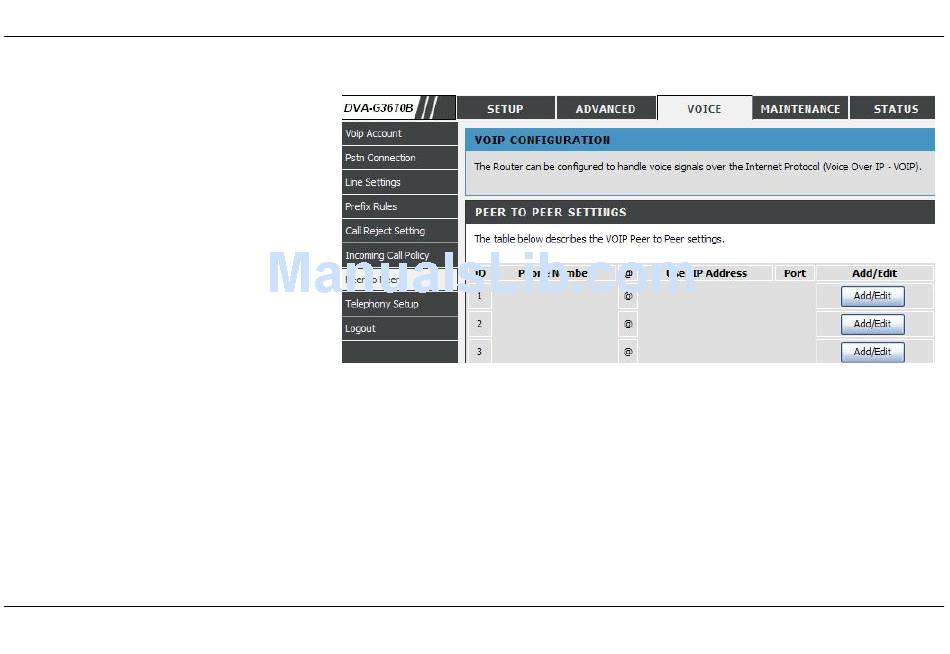

To access the PEER TO PEER setting window, click on the PEER TO PEER button under the VOICE tab.
You can add up to ten PEER TO PEER rules.
Click on the Add/Edit button to add(a new rule) or
edit(an existed rule). Delete button is enabled only
when editing an existed rule.
Index shows you what the current ID is for the
rules you are creating in the table.
Phone Number allows you to configure the Phone
Number that you wish to use to make this call.
User IP Address allows you to configure the IP
Address of the Phone you are trying to call. You will
notice there is a field either side of the "@" this will
allow for you to enter the predefined extension of
the phone if it has one in the first field. The second
field is for the IP address of the Phone.
Port: the port number the router will contact when
this call is being made.
D-Link DVA-G3670B User Manual 81
