Components (Generator) - MULTIQUIP DA7000SS Operation And Parts Manual

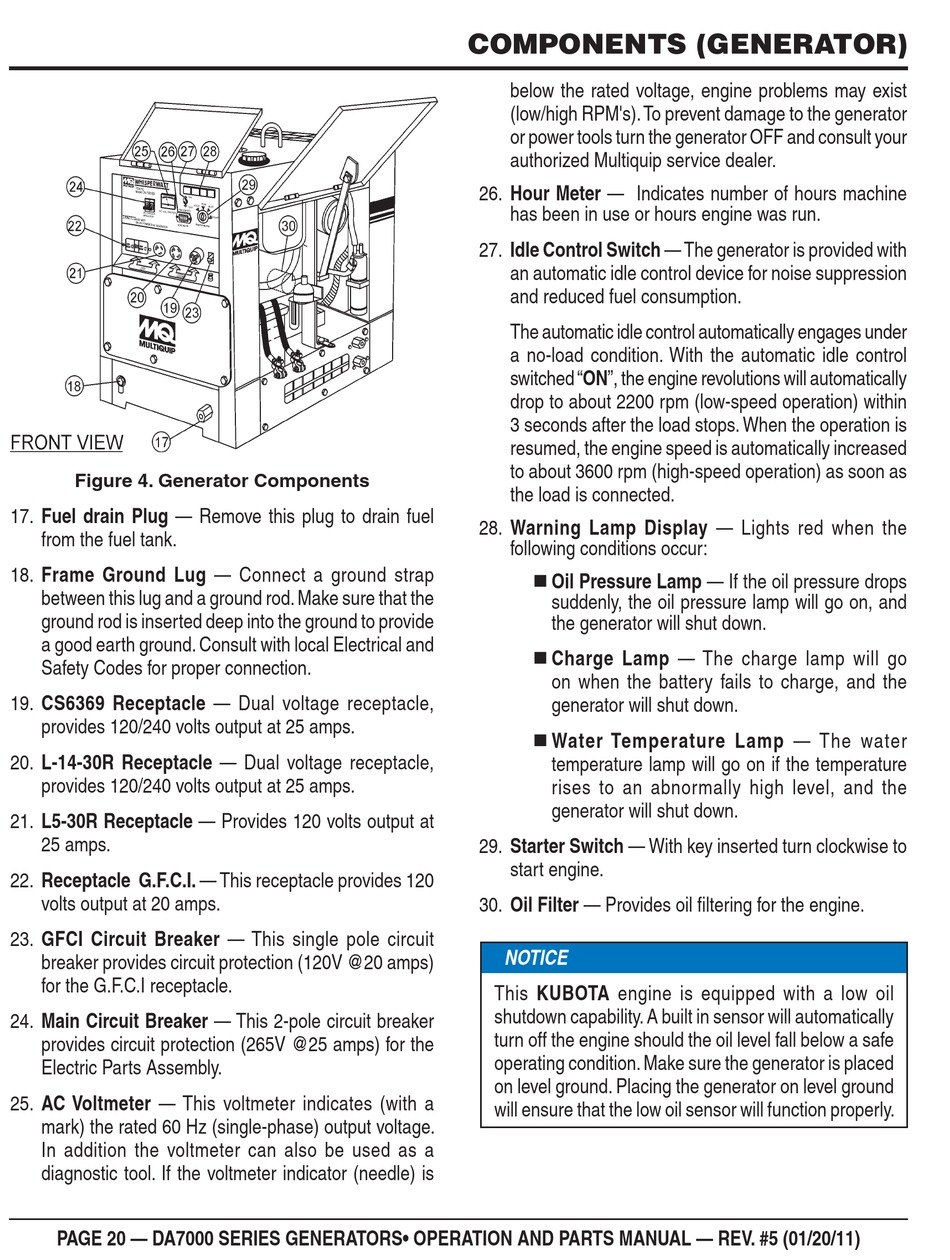

Figure 4. Generator Components
17. Fuel drain Plug — Remove this plug to drain fuel
from the fuel tank.
18. Frame Ground Lug — Connect a ground strap
between this lug and a ground rod. Make sure that the
ground rod is inserted deep into the ground to provide
a good earth ground. Consult with local Electrical and
Safety Codes for proper connection.
19. CS6369 Receptacle — Dual voltage receptacle,
provides 120/240 volts output at 25 amps.
20. L-14-30R Receptacle — Dual voltage receptacle,
provides 120/240 volts output at 25 amps.
21. L5-30R Receptacle — Provides 120 volts output at
25 amps.
22. Receptacle G.F.C.I. — This receptacle provides 120
volts output at 20 amps.
23. GFCI Circuit Breaker — This single pole circuit
breaker provides circuit protection (120V @20 amps)
for the G.F.C.I receptacle.
24. Main Circuit Breaker — This 2-pole circuit breaker
provides circuit protection (265V @25 amps) for the
Electric Parts Assembly.
25. AC Voltmeter — This voltmeter indicates (with a
mark) the rated 60 Hz (single-phase) output voltage.
In addition the voltmeter can also be used as a
diagnostic tool. If the voltmeter indicator (needle) is
PAGE 20 — DA7000 SERIES GENERATORS• OPERATION AND PARTS MANUAL — REV. #5 (01/20/11)

COMPONENTS (GENERATOR)

below the rated voltage, engine problems may exist
(low/high RPM's). To prevent damage to the generator
or power tools turn the generator OFF and consult your
authorized Multiquip service dealer.
26. Hour Meter — Indicates number of hours machine
has been in use or hours engine was run.
27. Idle Control Switch — The generator is provided with
an automatic idle control device for noise suppression
and reduced fuel consumption.
The automatic idle control automatically engages under
a no-load condition. With the automatic idle control
switched "ON", the engine revolutions will automatically
drop to about 2200 rpm (low-speed operation) within
3 seconds after the load stops. When the operation is
resumed, the engine speed is automatically increased
to about 3600 rpm (high-speed operation) as soon as
the load is connected.
28. Warning Lamp Display — Lights red when the
following conditions occur:
 Oil Pressure Lamp — If the oil pressure drops
suddenly, the oil pressure lamp will go on, and
the generator will shut down.
 Charge Lamp — The charge lamp will go
on when the battery fails to charge, and the
generator will shut down.
 Water Temperature Lamp — The water
temperature lamp will go on if the temperature
rises to an abnormally high level, and the
generator will shut down.
29. Starter Switch — With key inserted turn clockwise to
start engine.
30. Oil Filter — Provides oil fi ltering for the engine.
NOTICE
This KUBOTA engine is equipped with a low oil
shutdown capability. A built in sensor will automatically
turn off the engine should the oil level fall below a safe
operating condition. Make sure the generator is placed
on level ground. Placing the generator on level ground
will ensure that the low oil sensor will function properly.
