ASSEMBLY

• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked "L" or "Left" and right parts
are marked "R" or "Right."
• To identify small parts, see page 5.

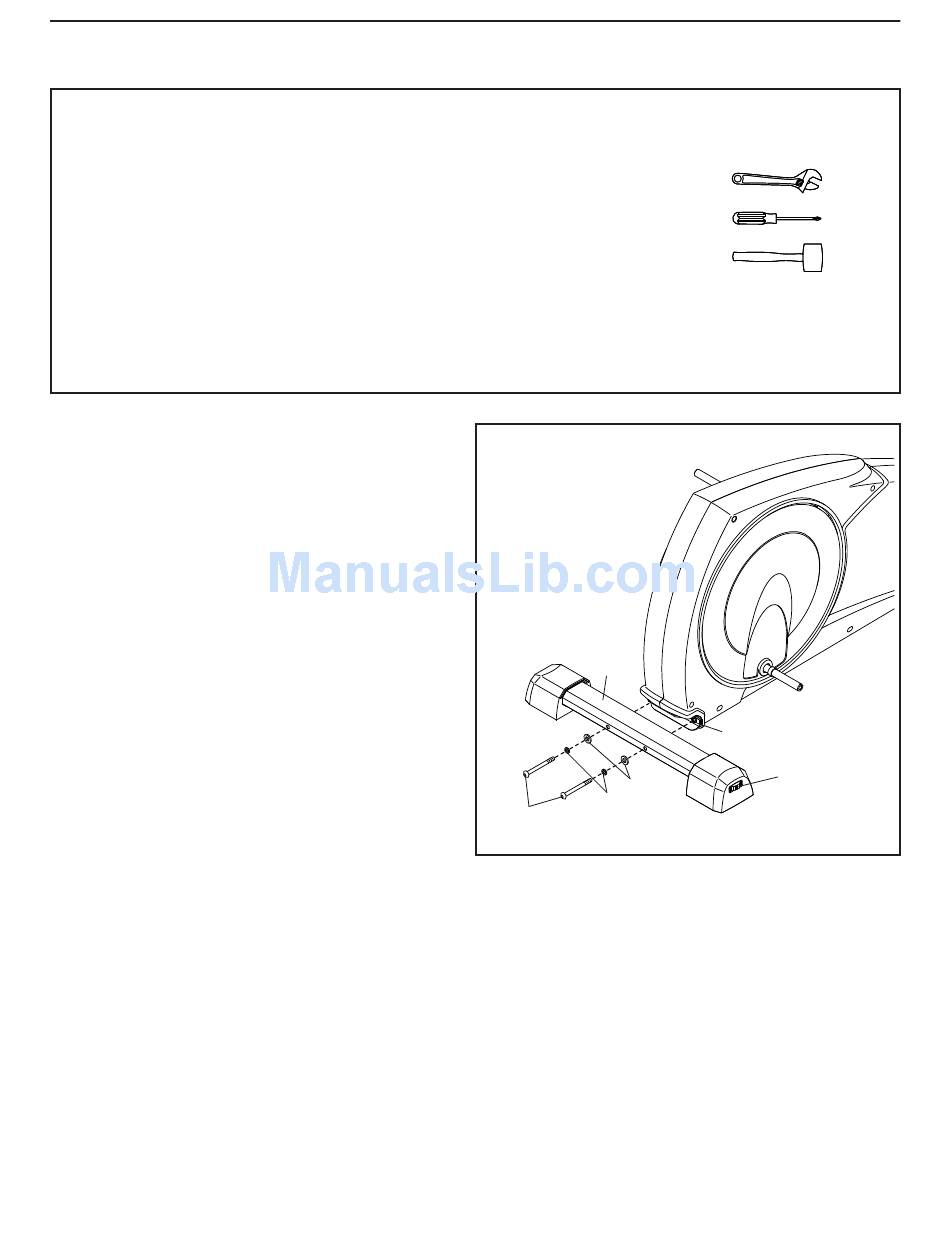

1. Identify the Rear Stabilizer (52), which has a lev-
eling dial on each end. Note: The Rear Stabilizer
does not have wheels.
Set a sturdy piece of packing material under the
rear of the Frame (54). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Attach the Rear Stabilizer (52) to the Frame (54)
with two M8 x 82mm Screws (53), two M8 Split
Washers (8), and two M8 Washers (71).
Remove the packing material.
• In addition to the included tool(s), assembly
requires the following tools:
one adjustable wrench
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
52
71
8
53
6
54
Leveling
Dial
