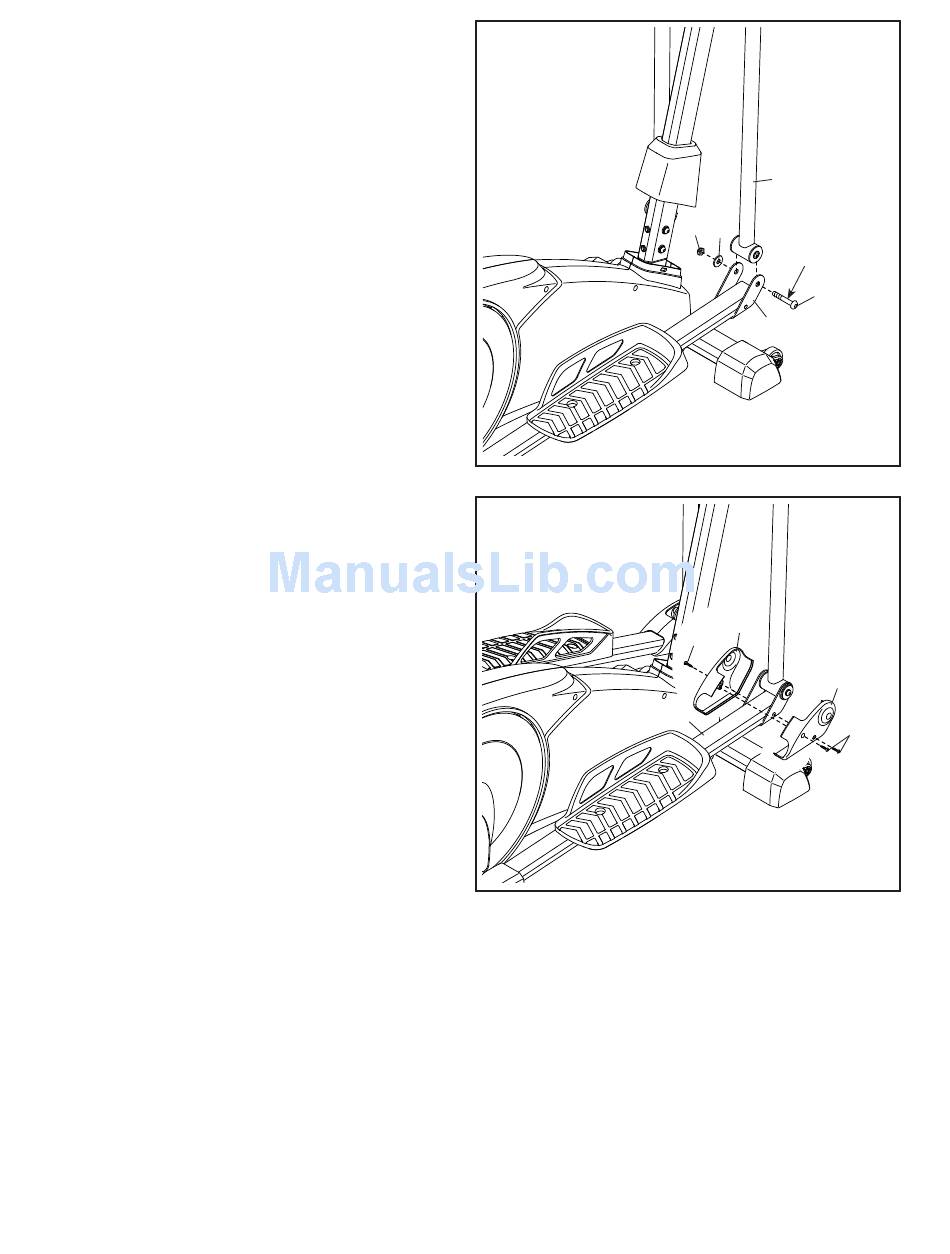

6. Apply a small amount of grease to an M10 x
76mm Bolt (30).
Hold the end of the Right Upper Body Leg (80)
inside the bracket on the Right Pedal Arm (75).
Attach the Right Upper Body Leg (80) to the
Right Pedal Arm (75) with the M10 x 76mm Bolt
(30), an M10 Washer (10), and an M10 Locknut
(32). Do not overtighten the Bolt; the Right
Upper Body Leg must pivot freely.
Repeat this step on the other side of the
elliptical.
7. Attach a set of Left and Right Upper Body Leg
Covers (90, 91) to the Right Pedal Arm (75) with
three M4 x 20mm Screws (93).
Repeat this step on the other side of the
elliptical.
6
7
9
80
32 10
Grease
30
75
90
93
91
75
93
