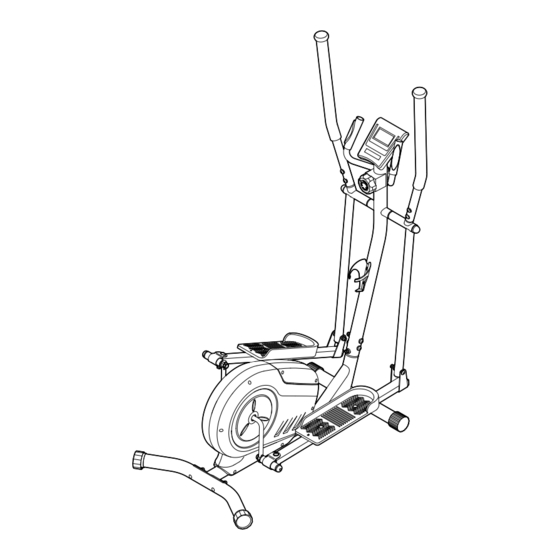

Weslo MOMENTUM ELLIPTICAL User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

weslo.com

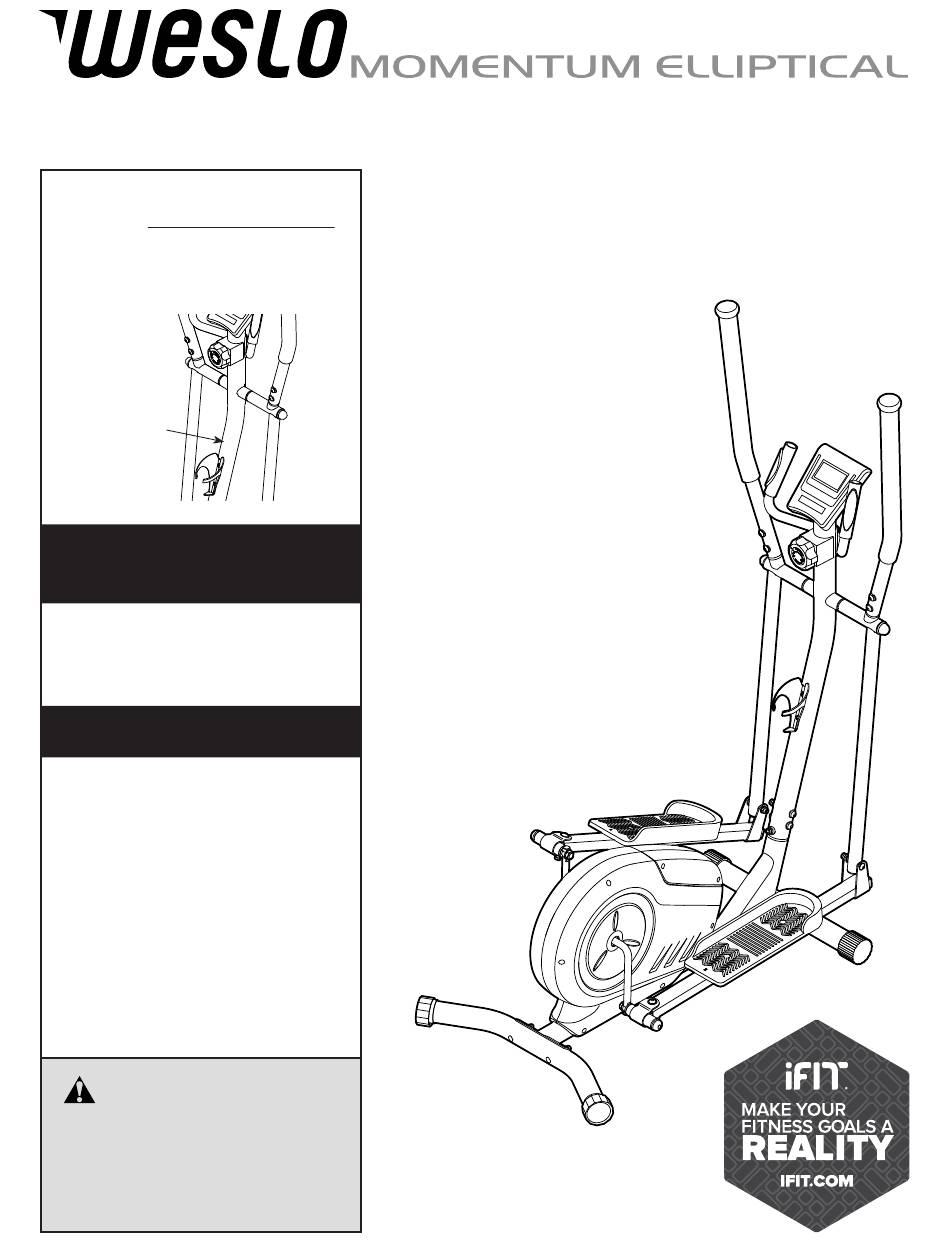

Model No. WLEL19917.0
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to my.weslo.com.
CUSTOMER CARE
For service at any time, go to
wesloservice.com.
Or call 1-866-699-3756
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOMENTUM ELLIPTICAL and is the answer not in the manual?

Questions and answers

Related Manuals for Weslo MOMENTUM ELLIPTICAL

Summary of Contents for Weslo MOMENTUM ELLIPTICAL

  • Page 1 Number Decal ACTIVATE YOUR WARRANTY To register your product and activate your warranty today, go to my.weslo.com. CUSTOMER CARE For service at any time, go to wesloservice.com. Or call 1-866-699-3756 Mon.–Fri. 6 a.m.–6 p.m. MT Sat. 8 a.m.–12 p.m. MT Please do not contact the store.

  • Page 2: Table Of Contents

    If a decal is missing or illegible, see the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. WESLO is a registered trademark of ICON Health & Fitness, Inc.

  • Page 3: Important Precautions

    IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your elliptical before using your elliptical. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
  • Page 4 STANDARD SERVICE PLANS...

  • Page 5: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the revolutionary WESLO reading this manual, please see the front cover of this ® MOMENTUM elliptical. The MOMENTUM elliptical manual. To help us assist you, note the product model provides an impressive selection of features designed number and serial number before contacting us.

  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly.

  • Page 7: Assembly

    To avoid damaging parts, do not use • To identify small parts, see page 6. power tools. 1. Go to my.weslo.com on your computer and register your product. • activates your warranty • saves you time if you ever need to contact Customer Care •...
  • Page 8 3. Attach the Front Stabilizer (3) to the Frame (1) with two M8 x 65mm Carriage Bolts (73), two M8 Curved Washers (65), and two M8 Acorn Nuts (82); start both Carriage Bolts, and then tighten the Acorn Nuts. 4. While a second person holds the Upright (2) near the Frame (1), connect the Upright Wire (49) to the Reed Switch Wire (7).
  • Page 9 5. Insert the excess wire and cable into the Frame (1). Tip: Avoid pinching the wires and the cables. Slide the Upright (2) onto the Frame (1). Attach the Upright (2) with two M8 x 65mm Bolts (75), four M8 Curved Washers (65), two M8 Split Washers (90), and two M8 Locknuts (84);...
  • Page 10 7. Attach the Water Bottle Holder (41) to the Upright (2) with two M4 x 16mm Flange Screws (95); start both Flange Screws, and then tighten them. 8. Identify the Right Lower Arm (11). Using a plastic bag to keep your fingers clean, apply a generous amount of the included grease to the right axle on the Upright (2).
  • Page 11 9. Identify the Right Upper Arm (13) and orient it as shown. Then, slide the Right Upper Arm onto the Right Lower Arm (11). Attach the Right Upper Arm (13) with two M8 x 16mm Screws (74), two M8 Split Washers (90), and two M8 Curved Washers (65);...
  • Page 12 11. Orient the Right Pedal (33) as shown, and attach it to the Right Pedal Arm (15) with two M10 x 45mm Bolts (76), two M10 Washers (72), and two M10 Locknuts (83); start both Bolts, and then tighten the Locknuts. Attach the Left Pedal (32) to the Left Pedal Arm (14) in the same way.
  • Page 13 13. Tip: Avoid pinching the wire. Attach the Handlebar (6) to the Upright (2) with two M8 x 16mm Screws (74), two M8 Split Washers (90), and two M8 Curved Washers (65); start both Screws, and then tighten them. Avoid pinching the wire 14.

  • Page 14: How To Use The Elliptical

    HOW TO USE THE ELLIPTICAL HOW TO MOVE THE ELLIPTICAL HOW TO USE THE ELLIPTICAL Stand in front of the elliptical, hold the upright (A), and To mount the elliptical, hold the upper arms (D) or the place one foot against one of the transport wheels (B). handlebars (E) and step onto the pedal (F) that is in Pull on the upright and have a second person lift the the lower position.
  • Page 15 HOW TO ADJUST THE PEDALING RESISTANCE HOW TO LEVEL THE ELLIPTICAL To increase the resistance of the pedals, turn If the elliptical the resistance knob (G) clockwise; to decrease the rocks slightly on resistance, turn the knob counterclockwise. your floor during use, turn one or both of the leveling caps (H)

  • Page 16: How To Use The Console

    HOW TO USE THE CONSOLE CONSOLE DIAGRAM Calories (CAL)—This mode displays the approximate number of calories you have burned during your work- out. Note: If you set a calorie-burning goal (see step 2 on page 16), this display will show the number of calories still to be burned in your workout.
  • Page 17 4. Measure your heart rate if desired. Next, press the SET button repeatedly to set a goal or a target heart rate. To set a goal or a target heart rate quickly, hold down the SET button. To reset the Note: If there are sheets of plas- goal or target heart rate, press the RESET button.

  • Page 18: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING MAINTENANCE HOW TO ADJUST THE REED SWITCH Regular maintenance is important for optimal If the console does not display correct feedback, the performance and to reduce wear. Inspect and properly reed switch should be adjusted. tighten all parts each time the elliptical is used. To adjust the reed switch, first turn the resistance Replace any worn parts immediately.

  • Page 19: Fcc Information

    HOW TO ADJUST THE DRIVE BELT If you can feel the pedals slip while you are pedaling, even when the resistance is at the highest level, the drive belt may need to be adjusted. See assembly step 10 on page 11. Remove the Right Arm Bracket (88) from the right arm of the Crank (18).

  • Page 20: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 21: Part List

    PART LIST Model No. WLEL19917.0 R1018A Key No. Qty. Description Key No. Qty. Description Frame M4 x 20mm Self-tapping Screw Upright M4 x 20mm Screw Front Stabilizer M6 x 100mm Bolt Rear Stabilizer M8 x 60mm Bolt Console M8 x 16mm Hex Bolt Handlebar M6 Nut Reed Switch/Wire...

  • Page 22: Exploded Drawing

    EXPLODED DRAWING A Model No. WLEL19917.0 R1018A...
  • Page 23 EXPLODED DRAWING B Model No. WLEL19917.0 R1018A...

  • Page 24: Ordering Replacement Parts

    ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
