Weslo Momentum R 5.2 Elliptical User Manual page 8

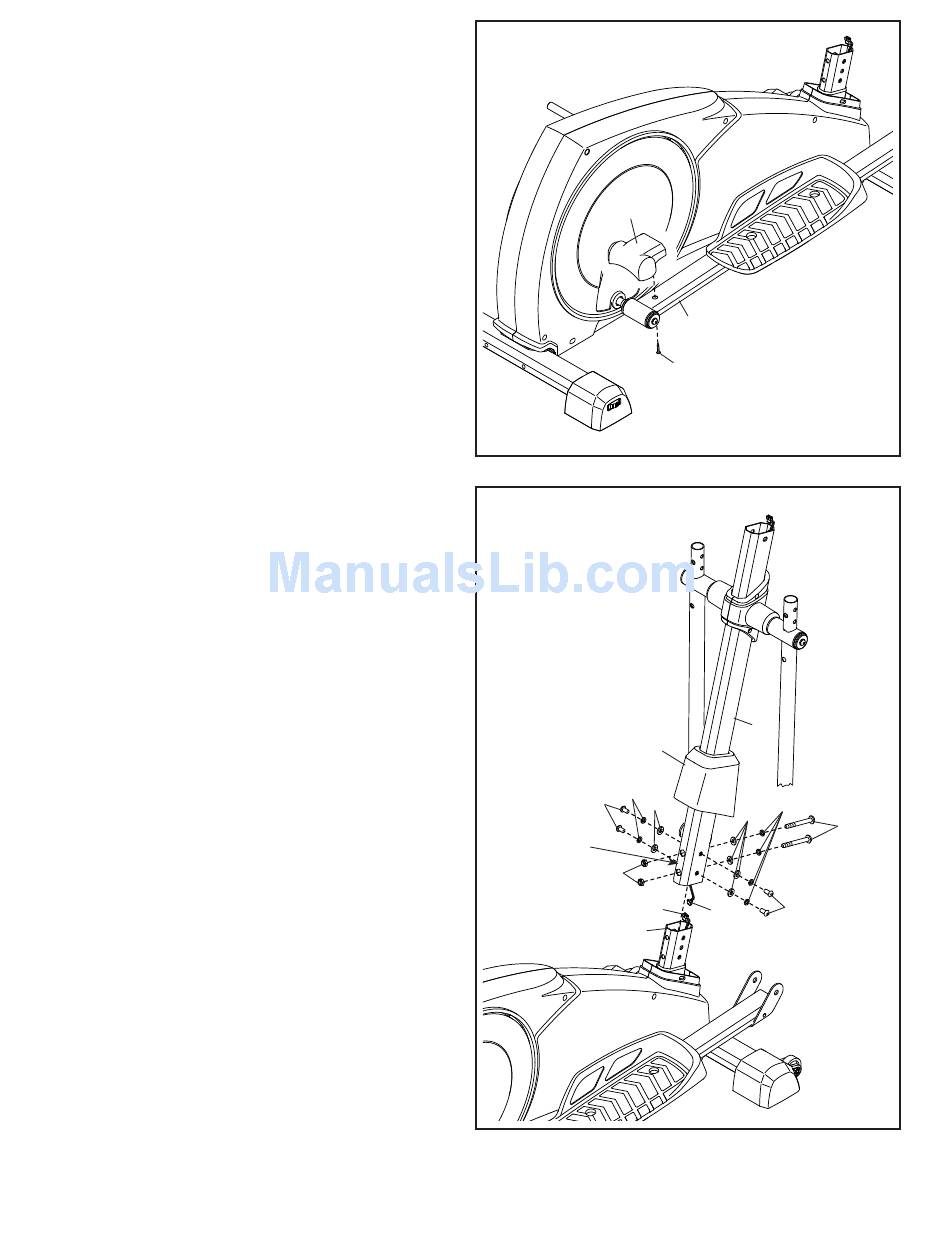

4. Attach the Right Pedal Arm Cover (85) to the
Right Pedal Arm (75) with an M4 x 20mm Self-
tapping Screw (45).
Repeat this step on the other side of the
elliptical.
5. Orient the Upright (9) assembly and the Lower
Upright Cover (83) as shown. Slide the Lower
Upright Cover upward onto the Upright.
Have a second person hold the Upright (9) and
the Lower Upright Cover (83) near the Frame
(54). Connect the Extension Wire (16) to the
Main Wire (26).
Tip: Avoid pinching the wires. Slide the
Upright (9) onto the Frame (54).
Attach the Upright (9) with two M8 x 78mm Bolts
(38), two M8 Split Washers (8), two M8 Washers
(71), and two M8 Locknuts (27). Make sure that
the Locknuts are inside the hexagonal holes.
Do not fully tighten the Bolts yet.
Then, attach the Upright (9) with four M8 x
16mm Screws (35), four M8 Split Washers (8),
and four M8 Washers (71). Do not fully tighten
the Screws yet.
Slide the Lower Upright Cover (83) downward
to the Frame (54). Do not press the Lower
Upright Cover into place yet.
4
85
5
Avoid pinching
the wires
83
8
35
71
Hexagonal
Holes
27
26
54
8
75
45
9
8
71
38
35
16
