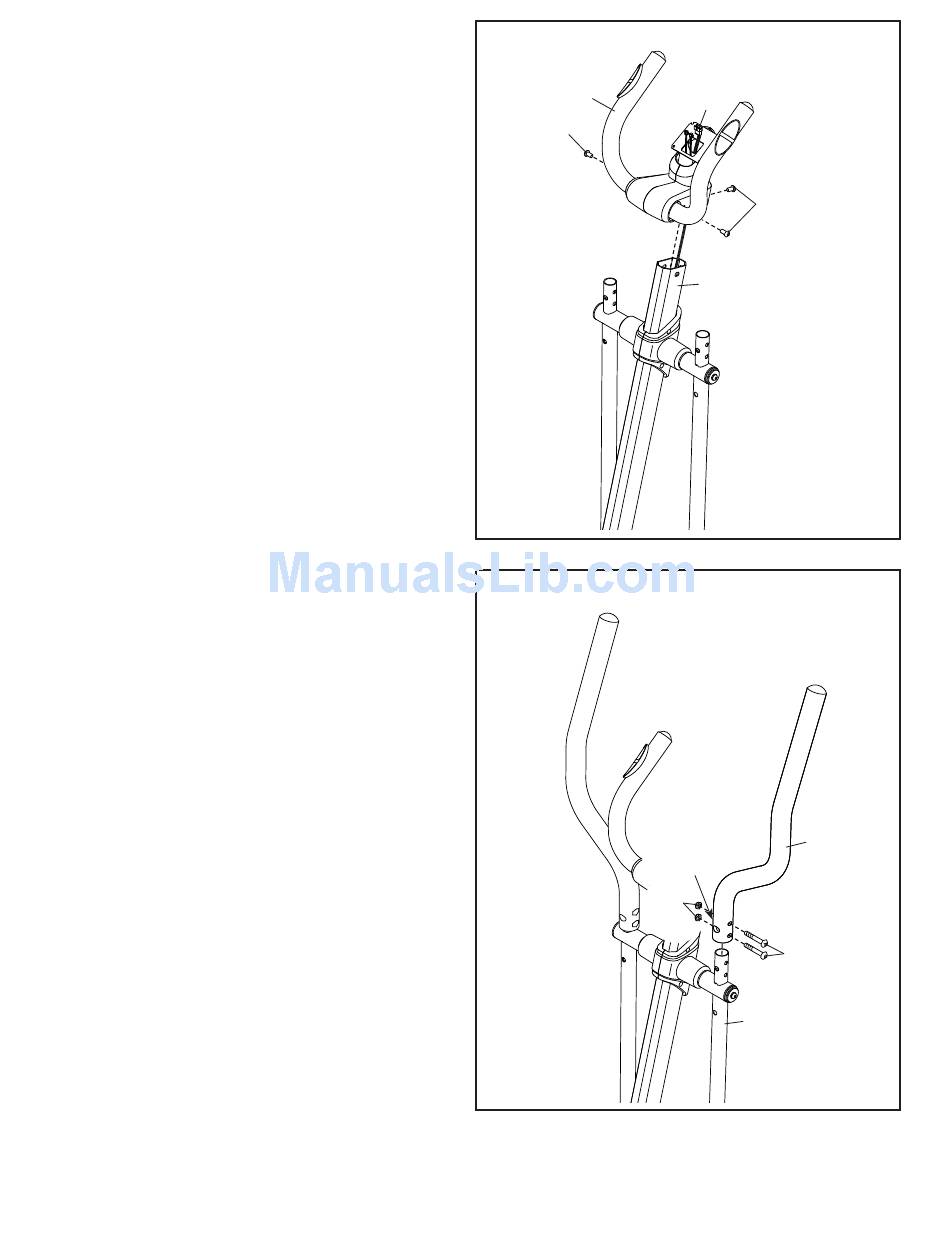

8. Orient the Handlebar (4) as shown.
Have a second person hold the Handlebar (4)
near the Upright (9). Insert the Extension Wire
(16) into the Handlebar and pull it out of the top
of the Handlebar.
Tip: Avoid pinching the wires. Attach the
Handlebar (4) to the Upright (9) with three M8 x
20mm Screws (7).
9. Slide the Right Upper Body Arm (15) onto the
Right Upper Body Leg (80).
Attach the Right Upper Body Arm (15) with two
M8 x 36mm Bolts (22) and two M8 Locknuts
(27). Make sure that the Locknuts are inside
the hexagonal holes.
Repeat this step on the other side of the
elliptical.
8
4
7
9
10
16
7
Avoid pinching
9
the wires
15
Hexagonal
Holes
27
22
80
