NordicTrack Smart Terrain 12.0 Elliptical Manual page 9

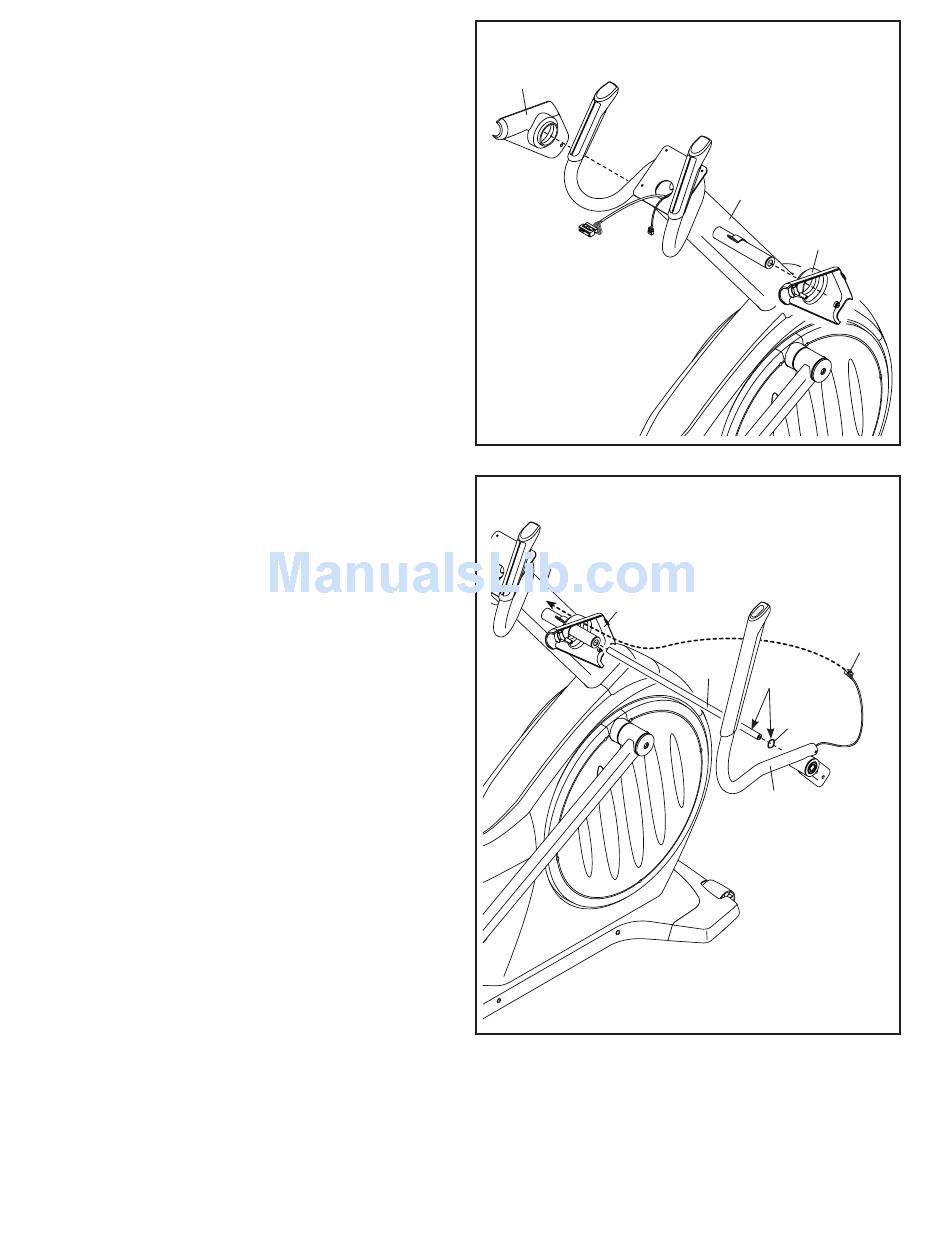

8. Identify the Left and Right Inner Covers (55, 68),
which are marked with “"Left”" and “"Right”" stick-
ers, and orient them as shown.
Slide the Left Inner Cover (55) onto the left side
of the Upright (4). Then, slide the Right Inner
Cover (68) onto the right side of the Upright.
9. Using a small plastic bag to keep your fingers
clean, apply some of the included grease to the
Pivot Axle (35) and to two Wave Washers (95).
Insert the Pivot Axle (35) through the Upright (4)
and then center it. Tip: It may be helpful to use
a rubber mallet.
Identify the Right Upper Body Arm (61), which
is marked with a “"Right”" sticker, and orient it as
shown.
Tip: Avoid pinching the Right Control Wire
(41). Slide a Wave Washer (95) and the Right
Upper Body Arm (61) onto the right side of the
Pivot Axle (35).
Insert the Right Control Wire (41) through the
Right Inner Cover (68) as shown.
Repeat this step for the Left Upper Body Arm
(not shown).
8
55
9
4
68
9
4
68
Avoid pinching
the wires
35
Grease
95
61
41
