NordicTrack Smart Terrain 12.0 Elliptical Manual page 7

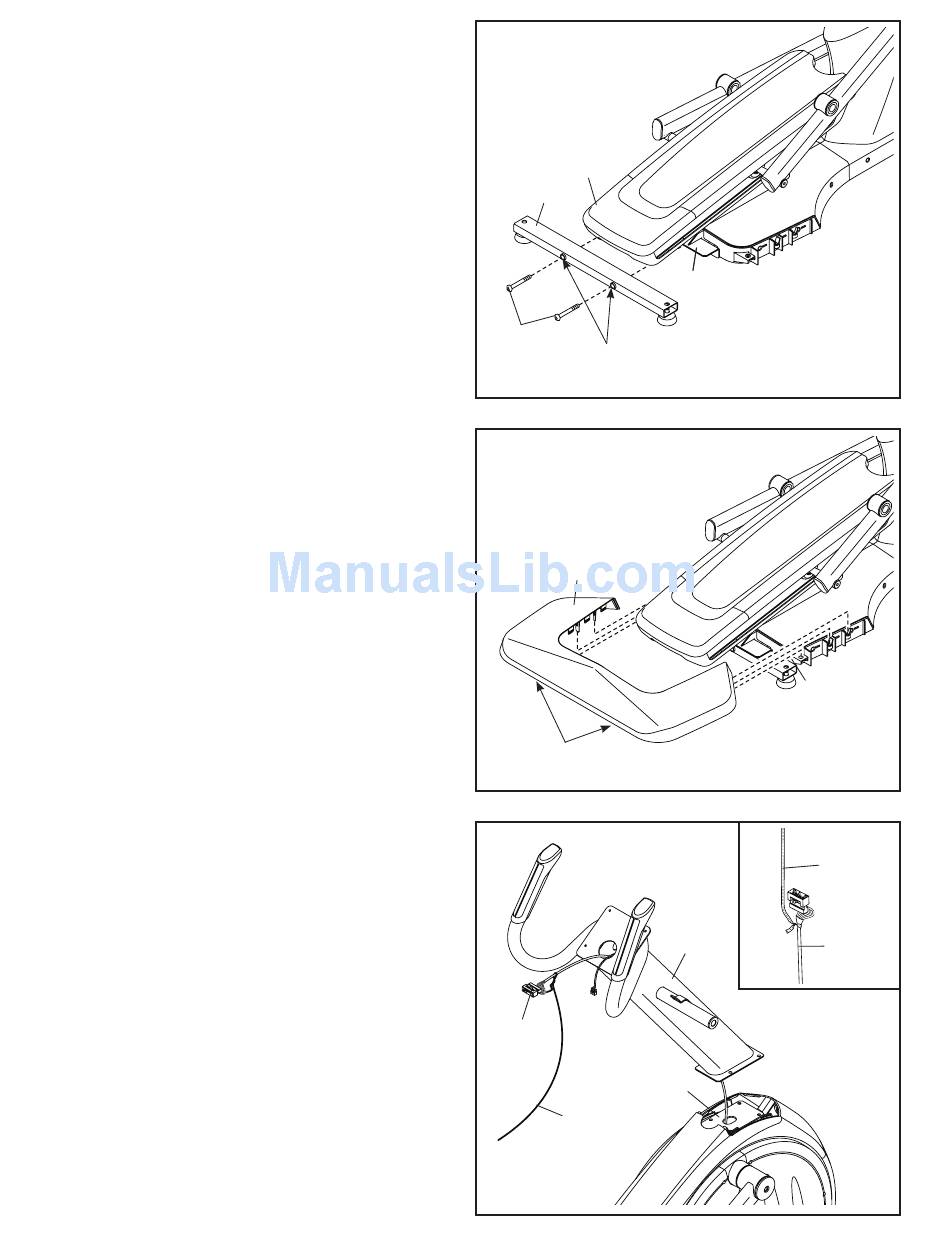

3. Remove the screws (not shown) and the ship-
ping bracket (not shown) from the rear of the
Frame (1). Discard the screws.
With the help of a second person, place the ship-
ping bracket (not shown) under the rear of the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Orient the Rear Stabilizer (5) so that the welded
tubes are in the locations shown.
Attach the Rear Stabilizer (5) to the Frame (1)
with two M10 x 75mm Screws (119).
Then, remove and discard the shipping bracket
(not shown).
4. Orient the Rear Stabilizer Cover (2) as shown.
Press the Mounts (117) on the Rear Stabilizer
Cover (2) into the Frame (1). Then, press the
Rear Stabilizer Cover into place.
5. Have a second person hold the Upright (4) near
the Frame (1).
See the inset drawing. Locate the wire tie in the
lower end of the Upright (4). Tie the wire tie to
the Main Wire (110). Then, pull the upper end of
the wire tie until the Main Wire is routed through
the Upright.
Tip: To prevent the Main Wire (110) from fall-
ing into the Upright (4), secure the Main Wire
with the wire tie.
3
3
5
119
Welded Tubes
4
2
117
5
110
Wire
Tie
7
1
1
Wire
Tie
4 110
1
