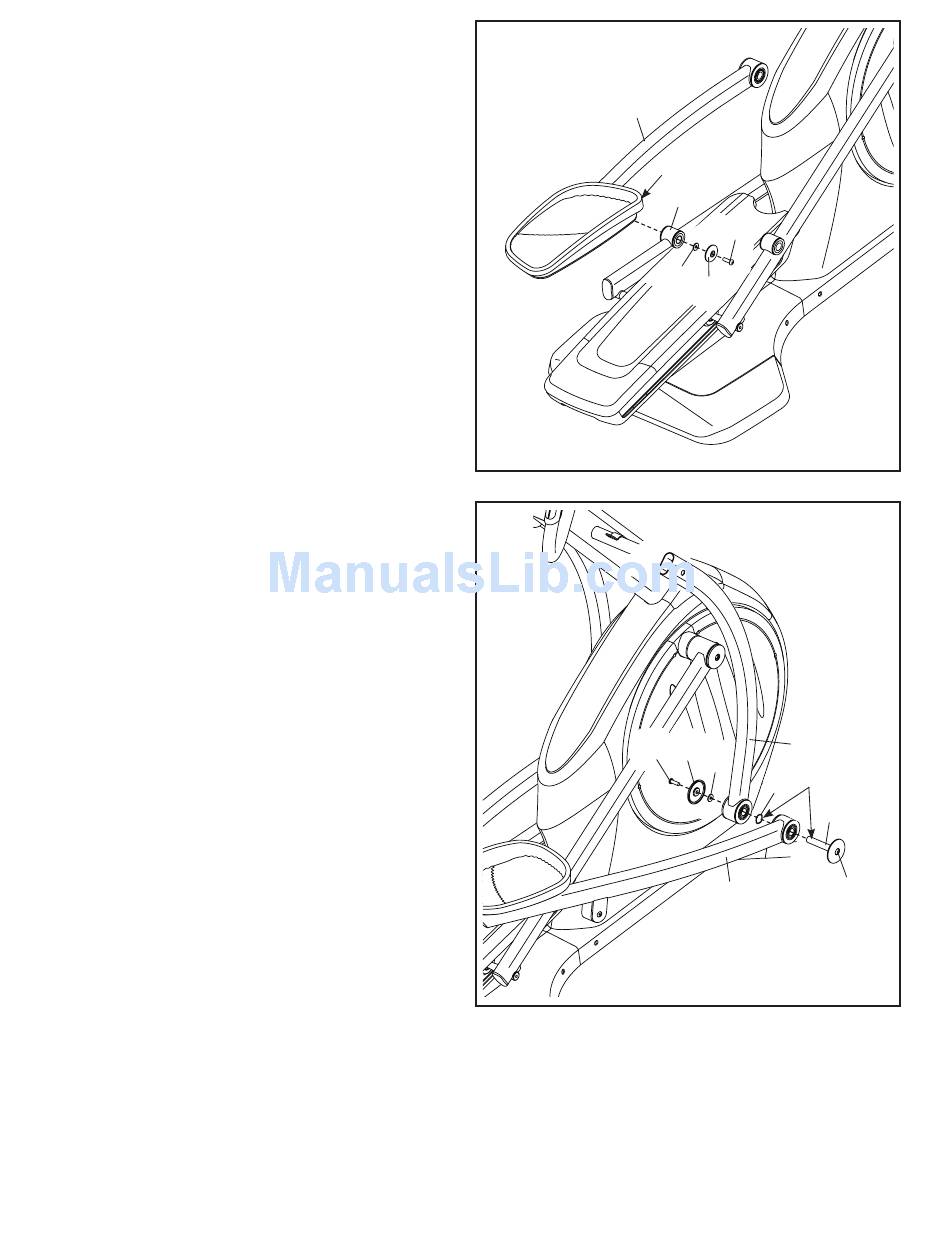

12. Orient the Left Pedal Arm (44) as shown.
Apply grease to the axle on the Left Pedal Arm
(44).
Attach the Left Pedal Arm (44) to the Left Roller
Arm (12) with an M8 x 16mm Screw (120), a
Roller Arm Cover (81), and an M8 x 25mm
Washer (98).
Repeat this step for the Right Pedal Arm (not
shown).
13. Apply grease to a Pedal Arm Axle (36) and to a
Wave Washer (95).
Orient an Upper Body Leg (46) as shown.
Note: For clarity, the Right Upper Body Arm (61)
is not shown in this step.
Insert the Pedal Arm Axle (36) through the Right
Pedal Arm (58), the Wave Washer (95), and the
Upper Body Leg (46).
Next, insert a hex key into the M8 x 16mm Screw
(120) in the Pedal Arm Axle (36).
Using a second hex key, tighten another M8 x
16mm Screw (120), an Axle Cover (53), and an
M8 x 25mm Washer (98) into the other end of
the Pedal Arm Axle (36).
Repeat this step on the other side of the
elliptical.
12
44
13
120
11
Grease
12
120
98
81
46
53
98
Grease
95
36
120
58
