5-Port PoE Switch

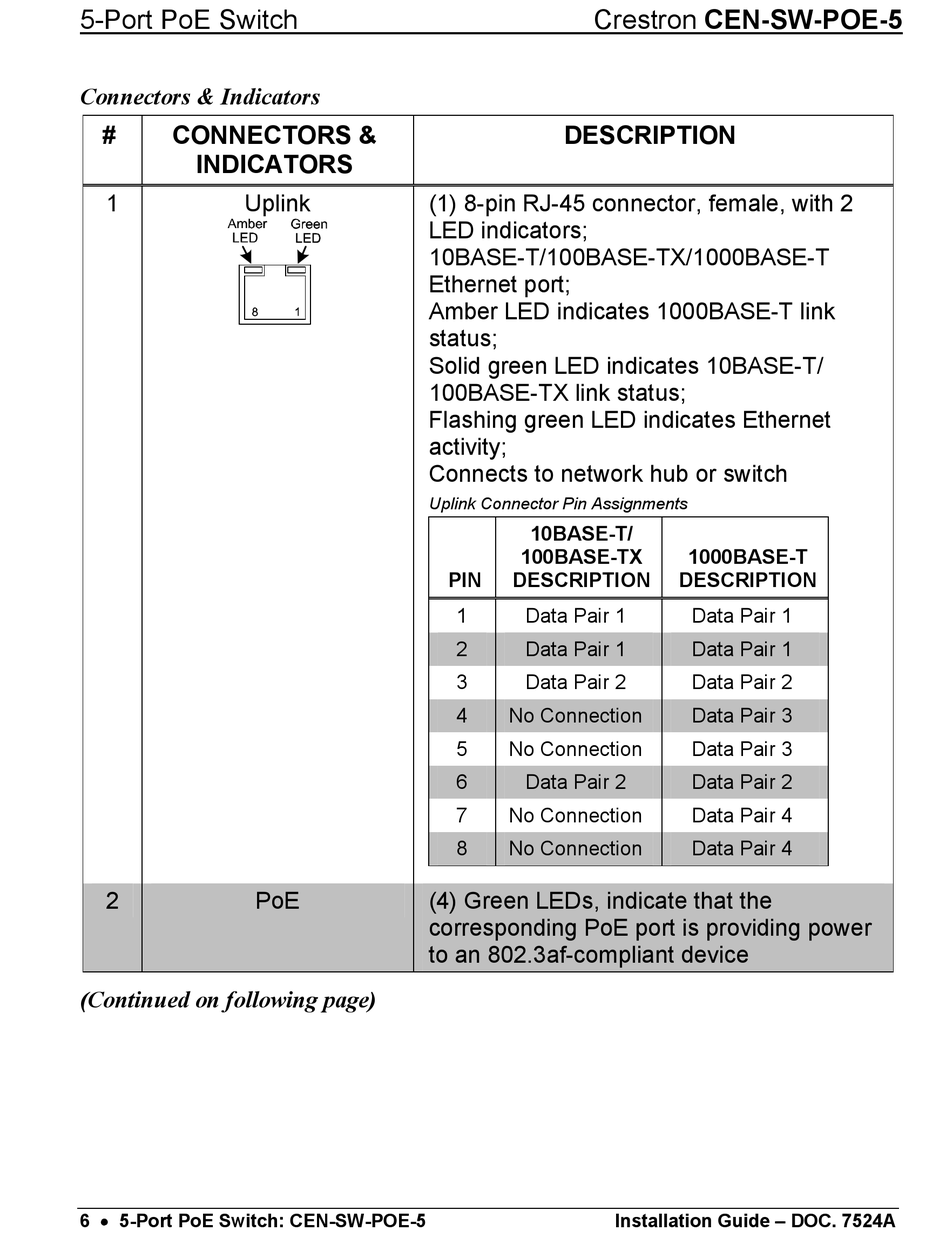

Connectors & Indicators
# CONNECTORS &
INDICATORS
1 Uplink
2 PoE
(Continued on following page)
6  5-Port PoE Switch: CEN-SW-POE-5
Crestron CEN-SW-POE-5
DESCRIPTION
(1) 8-pin RJ-45 connector, female, with 2
LED indicators;
10BASE-T/100BASE-TX/1000BASE-T
Ethernet port;
Amber LED indicates 1000BASE-T link
status;
Solid green LED indicates 10BASE-T/
100BASE-TX link status;
Flashing green LED indicates Ethernet
activity;
Connects to network hub or switch
Uplink Connector Pin Assignments
10BASE-T/
100BASE-TX
PIN DESCRIPTION
1 Data Pair 1
2 Data Pair 1
3 Data Pair 2
4 No Connection
5 No Connection
6 Data Pair 2
7 No Connection
8 No Connection
(4) Green LEDs, indicate that the
corresponding PoE port is providing power
to an 802.3af-compliant device
1000BASE-T
DESCRIPTION
Data Pair 1
Data Pair 1
Data Pair 2
Data Pair 3
Data Pair 3
Data Pair 2
Data Pair 4
Data Pair 4
Installation Guide – DOC. 7524A
