Crestron CEN-SWPOE-16 Quick Start

CEN-SWPOE-16
16-Port Managed PoE Switch

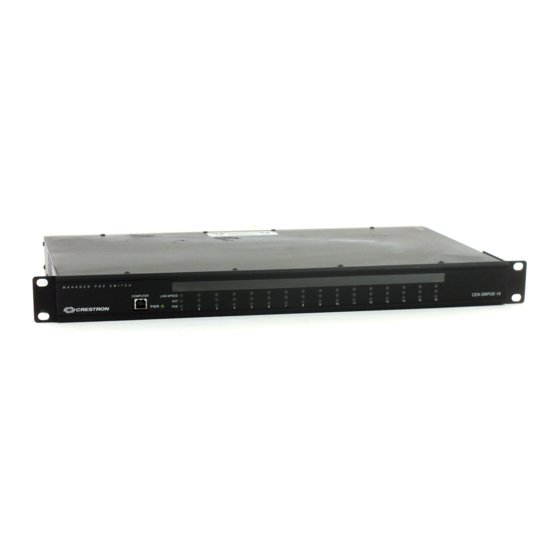

The Crestron® CEN-SWPOE-16
PoE+ in an AV-friendly rack-mount form factor.
In the Box
1 CEN-SWPOE-16, 16-Port Managed PoE Switch
Additional Items
2 Bracket, Rack Ear, 1U (2032122)
4 Foot, 0.5 in. x 0.5 in. x 0.23 in., Adhesive (2002389)
1 Cable, Power, 6 ft 7 in. (2 m) (4505164)
is a 16-port Gigabit Ethernet switch with
Install the Device
The CEN-SWPOE-16 can be mounted into a rack or placed on a flat
surface.
Mount into a Rack
The CEN-SWPOE-16 occupies 1U of rack space. Use the three screws
from the front part of each side panel, and a #1 or #2 Phillips screwdriver
to attach the two included rack ears to the device, as shown in the
following illustration. Then mount the device into the rack using four
mounting screws (not included).
Rack Mounting Safety Precautions
Elevated Operating Ambient Temperature: If installed in a closed or
multi-unit rack assembly, the operating ambient temperature of the rack
environment may be greater than room ambient temperature. Therefore,
consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma)
specified by the manufacturer.
Quick Start
1
