Positioning the Scan Material
A. Positioning Transparencies
• To scan standard-size transparent film such as 35mm slides, 35mm filmstrips, 4"x5" film, or 120 film:
Use the individual film templates included with the TMA 1600-III package. Make sure the templates are
oriented correctly on the scanner glass surface, with the Microtek logo on the templates facing up. Keep
the calibration strip on the glass surface clear and free of obstruction at all times.
Important:
When using the templates,
make sure you use the correct
side up. The correct side up is
the side showing the "Microtek"
logo facing up.

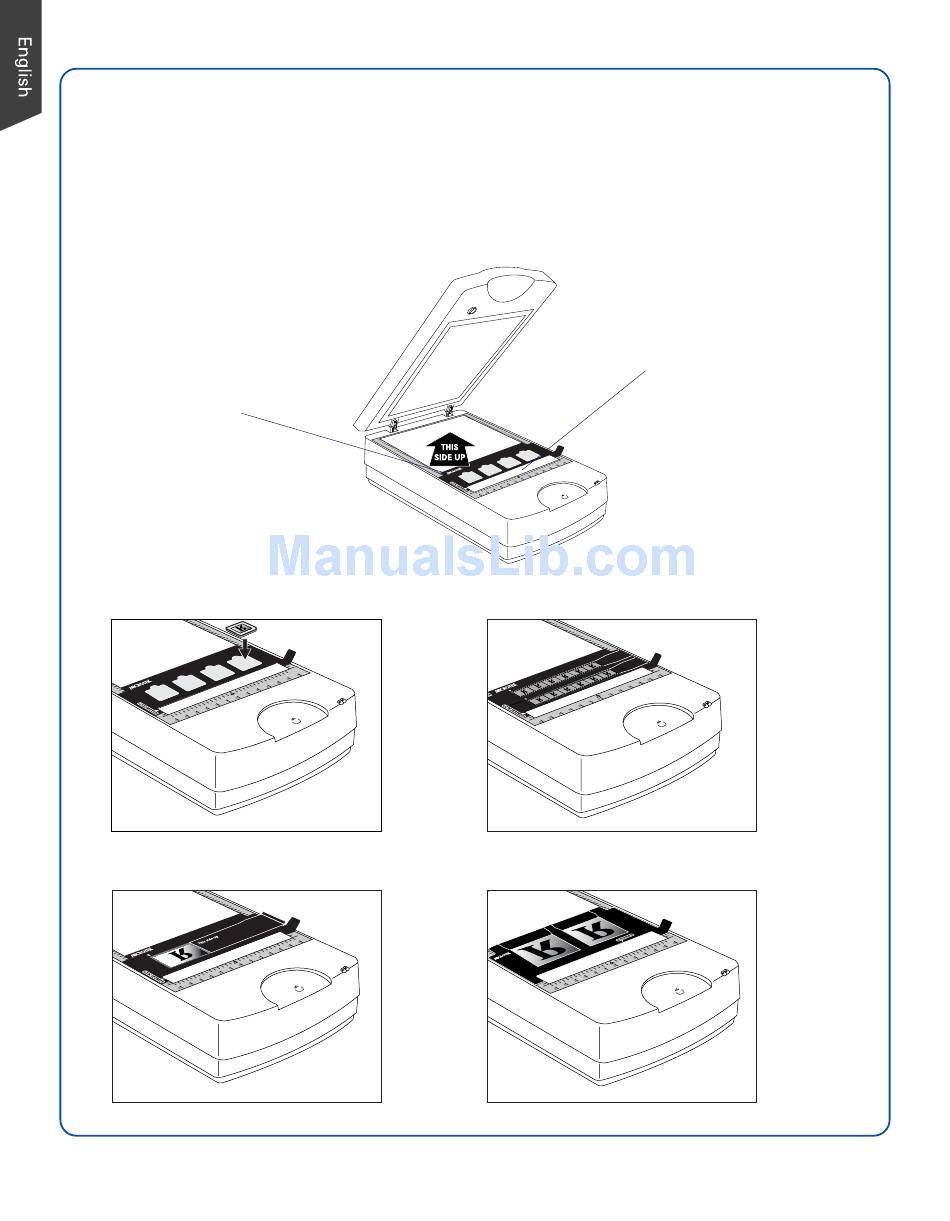

Using the 35mm Slide Template
Using the 120 Film Template
Calibration strip
(Keep clear and unobstructed)
Using the 35mm Filmstrip Template
Using the 4" x 5" Film Template
