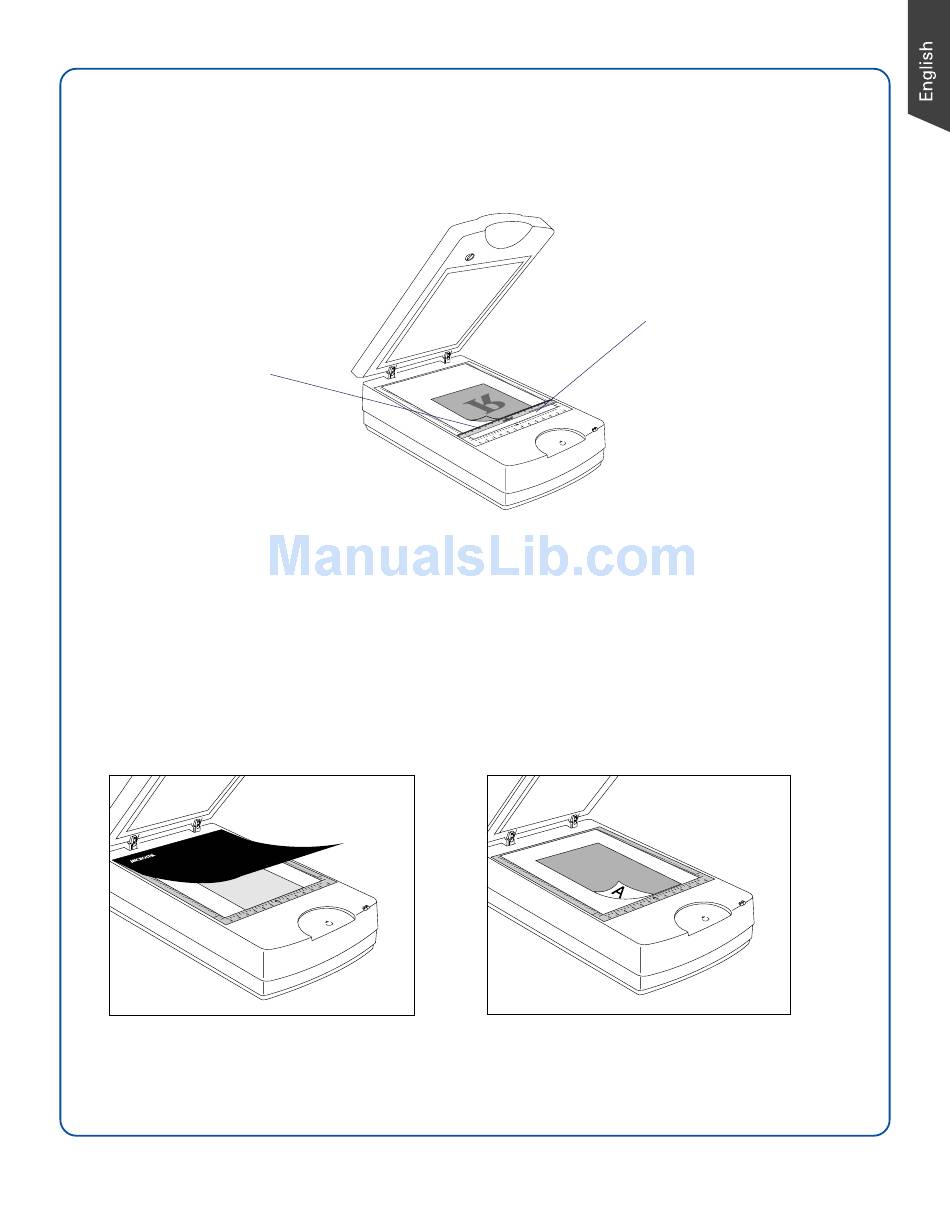

• To scan non-standard-size transparent film, use the Film Alignment Ruler included with the TMA 1600-
III package. Place the Film Alignment Ruler on the scanner glass surface. Then place the film to be
scanned face down on the scanner glass surface, centering the film along the Film Alignment Ruler.
Make sure you keep the calibration strip on the glass surface clear and free of obstruction at all times.
Film Alignment Ruler
B. Positioning Reflectives
To scan reflective originals such as photos, you can use the ScanMaker 9800XL Plus with or without the
TMA 1600-III.
• If you purchased your ScanMaker 9800XL Plus with the TMA, you will need to use the Black Plate
included with your TMA 1600-III package to shield unwanted light.
• If you purchased your ScanMaker 9800XL Plus without the TMA, simply lift the scanner lid, and place
the reflective original to be scanned on the glass surface. Center the photo along the U-shaped ruler of
the scanner.
With TMA 1600-III
Calibration strip
(Keep clear and unobstructed)
Without TMA 1600-III
