Tools
Required
Materials
Required
Hardware
Supplied
Hardware
Recommendations

Flooring

Step 1
Remove
Packaging
8
• Tinsnips to cut banding
• Stepladder
• Bucket
• Level
• 1-1/4" open-end wrench
• 2x4, 35" long, for Anti-Tip support, see page 10
• Stick-on hook and loop fastener strips for 1/4" side panels
• 1/4" copper water line tubing or GE SmartConnect
• 1/4-1/4 union with nuts
• Anti-tip mounting brackets
• Water shut-off valve
• Water filter WR97X0214
For proper installation, the refrigerator and freezer must
be placed on a level surface of hard material that is at
the same height as the rest of the flooring. The floor
must be strong enough to support a fully loaded product,
or approximately 1,200 lbs.
CAUTION
Refrigerator is much heavier at the top than at the
bottom – be careful when moving. When using a
hand truck, handle from side only.
PRUDENCE
Le réfrigérateur est beaucoup plus lourd en haut
qu'en bas. Il faut être prudent lors des déplacements.
Si un diable est utilisé, il faut soulever le réfrigérateur
sur le côté seulement.
• Remove outer carton.
– Carefully cut banding at the top and bottom.
• Slide out back corner posts (2).
• Slide carton off top of cabinet.
• Remove styrofoam pads taped to base cabinet.
NOTE: IT IS NOT NECESSARY TO LAY CABINET DOWN
IN ORDER TO REMOVE SKID!

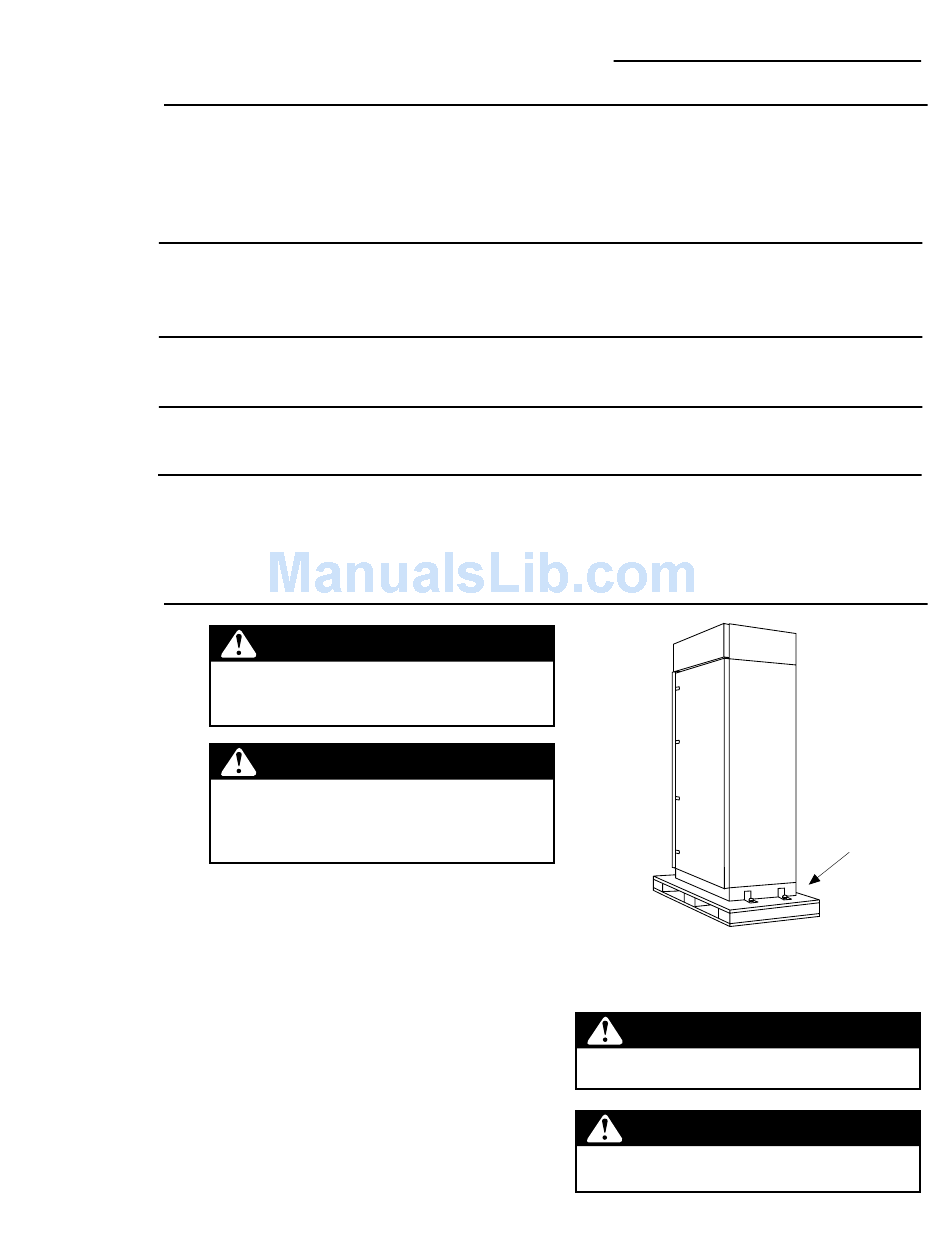

• The unit is secured to the skid with 3 slotted tie-down
straps. First remove the 5/16" bolts from the base
channels in the tie-downs, then remove the 7/16" bolts
securing the straps to the skid.
• Protect the flooring. Cut a large piece of the card-
board carton and place under the product where you
are working.
• Support blocks on the bottom must be removed before
the refrigerator is taken off the skid or damage will
occur. Remove support blocks by carefully tilting
cabinet to side and sliding out.
• Lift the refrigerator off the skid with an appliance
dolly. Handle from the sides.
Installation Preparation
• Appliance hand truck
• Tubing cutter
• 7/16" open-end wrench
• #2 Phillips screwdriver
• Stubby Phillips screwdriver
™
Tubing Kit
NOTE: Protect the finish of the flooring. Cut a large
section of the cardboard carton and place under the
product where you are working.
DO NOT ATTEMPT TO ROLL UNIT OFF SKID.
IL NE FAUT PAS ESSAYER DE FAIRE ROULER LE
RÉFRIGÉRATEUR POUR L'ENLEVER DE LAY PALETTE.
36" Stainless Steel Refrigerators, Freezers
• Drill and appropriate bits
• 7/16" socket with 3" extension for
ratchet
• Safety glasses
• Water shut-off valve
• Screws to secure refrigerator to cabinetry
CAUTION
PRUDENCE
7/16" Bolt
