Step 9
Install
Soffit
Vent Top
Step 10
Mount
Unified
Grille Panel
18

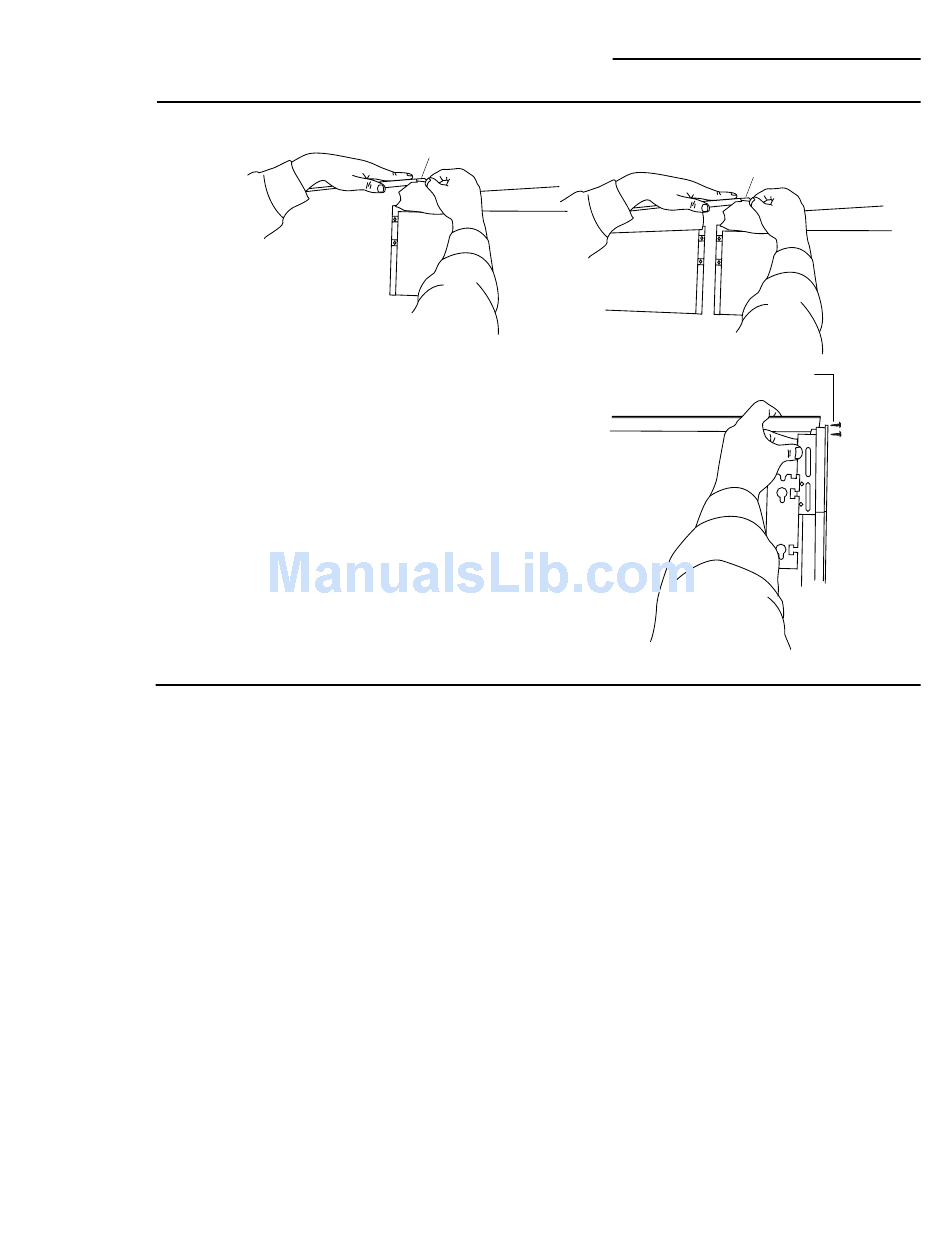

• Separate the top and hinge side trim pieces by
removing side screws. Discard top piece; retain
screws.
• Install one end piece to unified top piece with
2 original screws.
• Slip end of rubber dust gasket into end of top unified
piece and slide trim towards the center. Engage the
second piece of gasket and continue sliding trim until
even with opposite ends.
• Reinstall end pieces to case trims. Push top piece up
against soffit or to installation height. Tighten screws
on both sides.
• Whenever possible, place a level on the top trim.
Adjust side trims until entire grille frame is level.
• Mount the unified grille panel by dropping into slots on
the outside case trim.
ZUGSS Trim Kit
Slip Dust Gasket
Into Trim On One End
Unified Stainless Steel Grille Panel
Slip Second Dust
Gasket Into Trim
Reinstall
Screws
