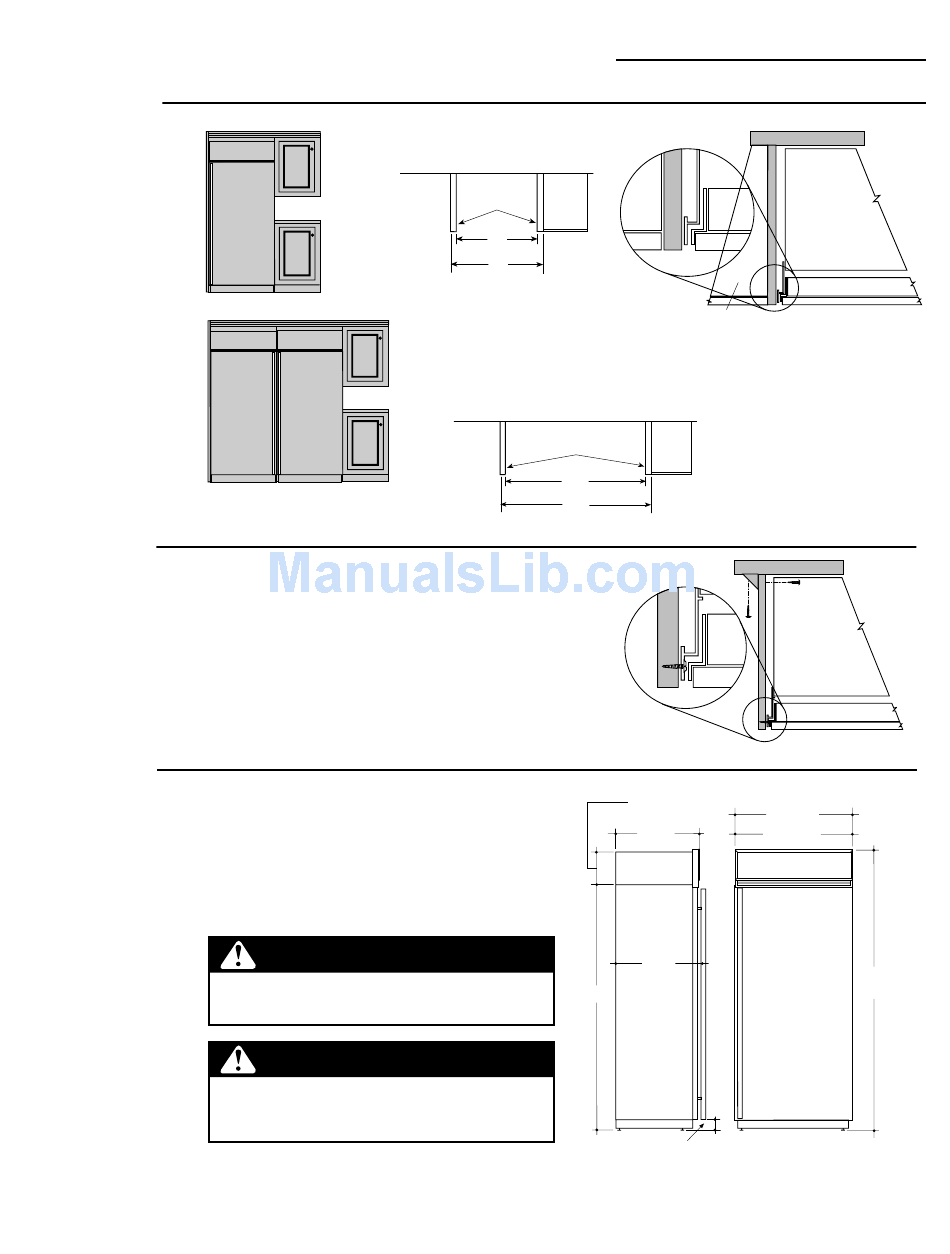

Installation
At End-of-Run
Frameless
Cabinets
Product
Dimensions
Finished Dim.
Roughed-In Dim.
Refrigerator or Freezer
Refrigerator and Freezer
installed side-by-side
Side panels, 1/2" minimum thickness are required when
using frameless cabinets. The side panel acts as a
spacer between the cabinet and the case trim and
prevents interference with cabinet door swing.
The leading (front) edge must be finished to match
surrounding cabinetry.
ZIRS36N RH, Refrigerator
ZIFS36N RH, Freezer
Handle on the left side, the door swings left to right.
ZIRS36N LH, Refrigerator
ZIFS36N LH, Freezer
Handle on the right side, the door swings right to left.
CAUTION
Refrigerators are much heavier at the top than at
the bottom – be extra careful when moving.
PRUDENCE
Les réfrigérateurs sont beaucoup plus lourds en
haut qu'en bas. Il faut être prudent lors des
déplacements.
Design Information
1/2" Thick
Side Panels
36"
37"
1/2" Thick
Side Panels
Finished Dim.
72"
Rough-In Dim.
73"
1/2" To 3/4" Side Panels. Leading
Edge Flush With Cabinet
73-1/2"
36" Stainless Steel Refrigerators, Freezers
Refrigerator
Cabinet
NOTE: 1/2" thick side panels shown.
Side panels can be any thickness.
Add side panel thickness to outside
trim width, (36" or 72" for two models)
to calculate the rough-in dimension.
The leading (front) edge must be
finished to match surrounding
cabinetry.
Refrigerator
Cabinet
Refrigerator door
10-3/4" Max.
35" Case
10" Min.
24-3/4"
36" Overall
26-3/4"
4"
Cabinet
Refrigerator door
84-1/2" Max.
83-1/2" Min.
5
