Advance Planning
Flush or
Semi-Flush
Enclosure
Installations
0"
Enclosure
Cutout and
Product
Dimensions
will align evenly with the front
face of adjacent cabinet doors.
The refrigerator blends into the

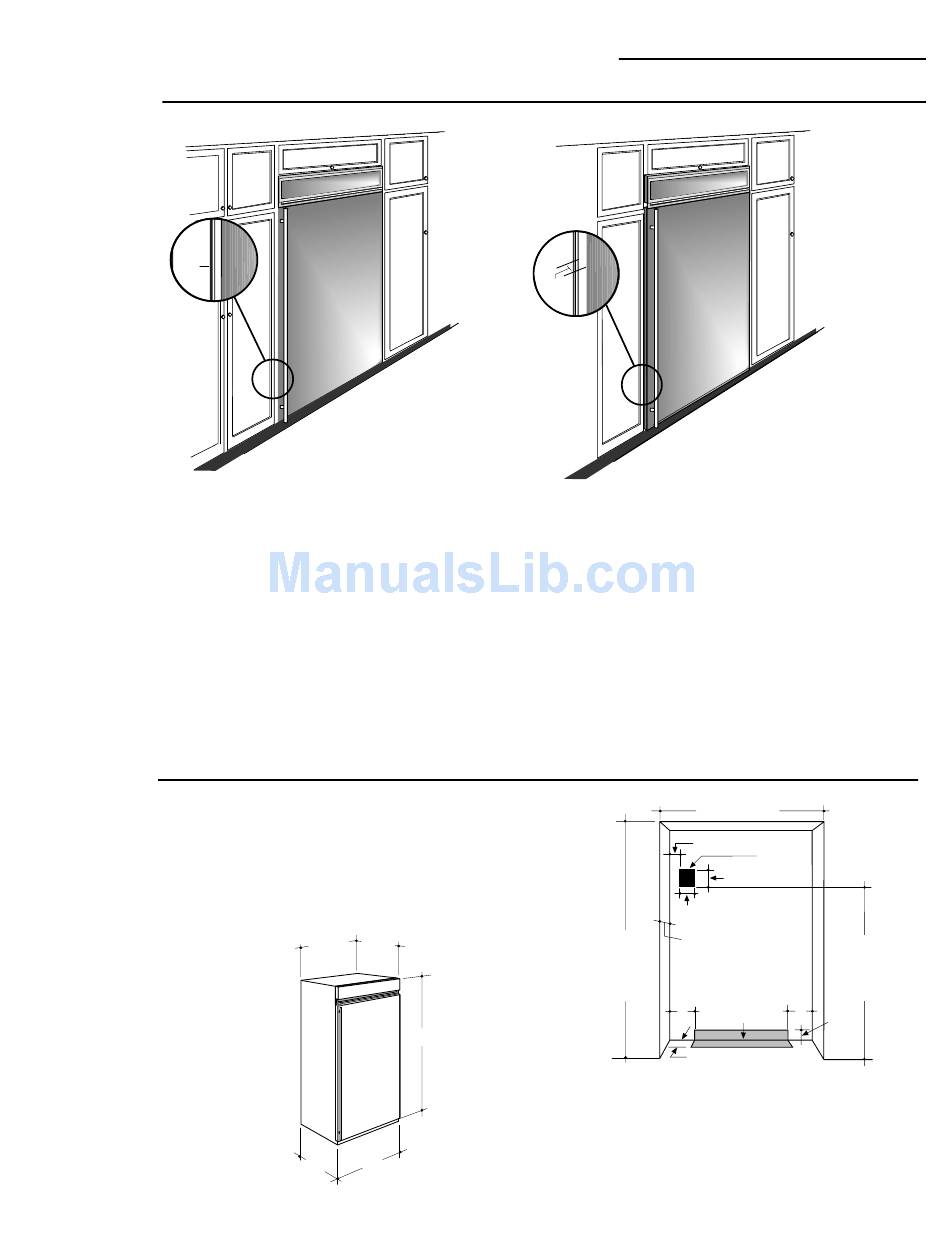

Monogram built-in refrigerators and freezers can be
installed flush with typical 24-3/4" deep cabinetry.
When installed semi-flush, the case trim will conceal
slight gaps around the enclosure. The refrigerator will
project forward approximately 3/4" beyond the front
face of surrounding cabinetry.
• To achieve a flush fit, the finished cutout width must be
at least 36" wide.
• In a semi-flush installation, the finished cutout must be
35-1/2".
• The electrical and water locations must be located
as shown for either type of installation.
35"
24-3/4"
Case
Case
Width
Depth
36" Frame to Frame
26-3/4"
Including
*Shipped at 84" installation height.
Tubular
Can be adjusted to 83-1/2"
Handles
or 84-1/2" with grille panel kits.
Design Information
3/4"
True Flush Installation
In a flush installation,
the refrigerator door
surrounding cabinetry.
Side Panel Requirements:
• Side panels are not required whenever the
refrigerator or freezer is installed into an enclosure
or between pantry and oven cabinets.
• Side panels are required whenever the sides of the
product are exposed.
• Side panel sizes vary depending on the type of
installation being made.
To accomplish an attractive installation, you must:
1. Determine the need for side panels.
2. Determine side panel thickness.
3. Order matching side panels from the cabinet
manufacturer. Be sure to provide the exact dimensions.
84 1/2" max
84"*
*36" for a flush installation.
35-1/2" Min. for a semi-flush installation.
NOTE: Additional cutout width may be required when side
panels are used. Add side panel thickness to the finished
cutout to calculate rough-in width. See installation examples
on the following page.
36" Stainless Steel Refrigerators, Freezers
semi-flush into an enclosure
using the minimum cutout
width. The case trim creates a
frame around the opening.
*Finished Width
2 1/2"
Electrical
Area
6"
5"
24 3/4" Total
Depth
83 1/2" min
Finished
Opening
5" Water Supply
3 1/2"
Semi-Flush Installation
These refrigerators
can also be installed
Wall View
75" From Floor
to Bottom
of Electrical
Area
5"
3 1/2"
3
