Side By Side
Installation
Of Freezer
And Refrigerator
Accessory
Grille Panel
Kits
Installation
Examples
Installation
Between
Base and
Wall Cabinets
4

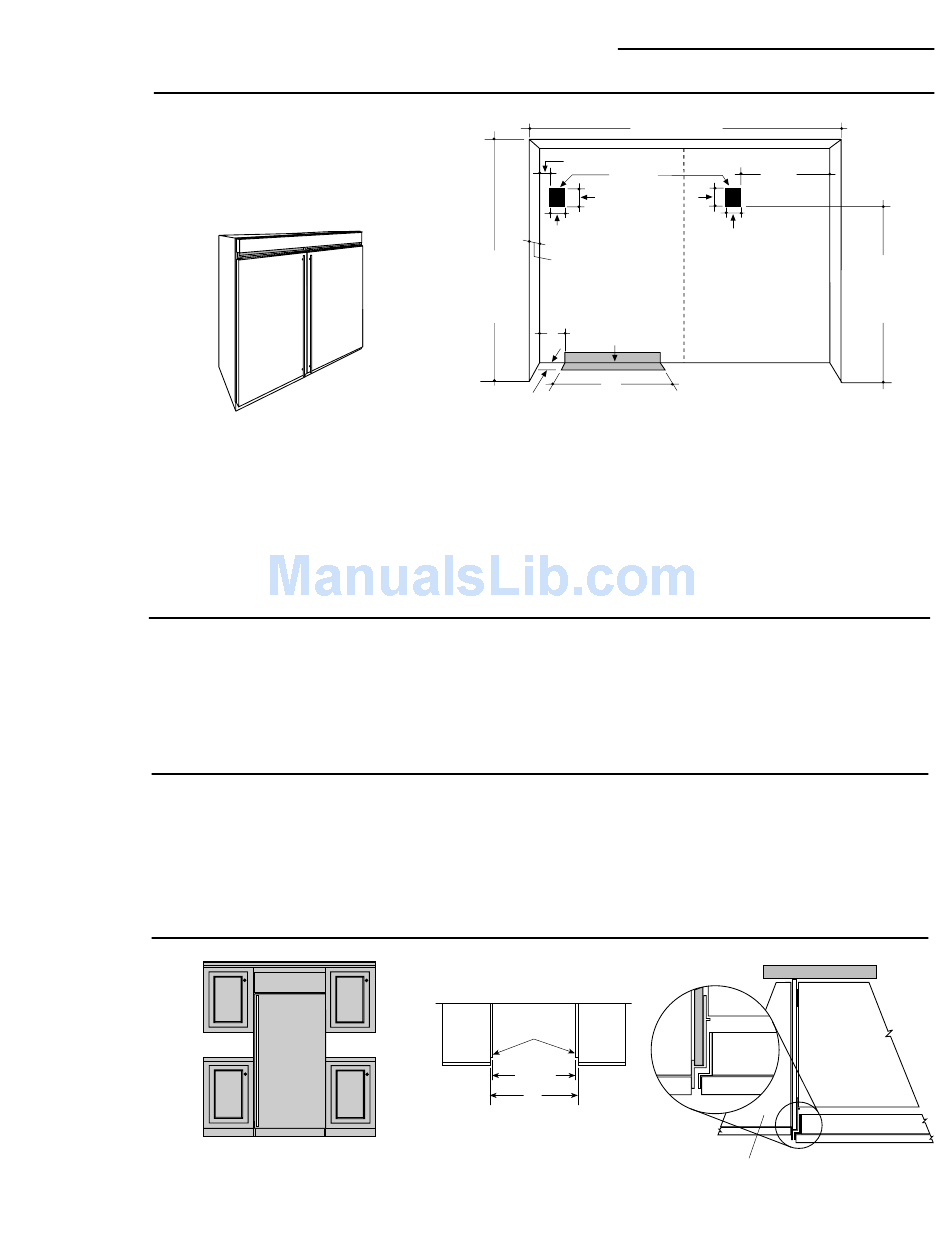

For a complete food storage center, install a Monogram
Freezer and Refrigerator side by side. For even more
capacity, install two refrigerators and one or two freezers.
• Order ZUGSS Unified Grille Panel Kit for one
continuous stainless steel grille panel.
• Electrical and water locations must be located as
shown for either type of installation. A separate
115V, 60Hz, 20 amp power supply is recommended
for each product.
These models are factory set for 84" installation height.
Adjustments to 83-1/2" or 84-1/2" heights can be made
by changing the grille panel.
Order ZGCSS36RH (right hand) or ZGCSS36LH (left
hand) Grille Panel Kit. These kits include 2 grille panels,
for 83-1/2" and 84-1/2" installation heights.
Side panels are required whenever the sides of the
product will be exposed.
1/2" to 3/4" side panels are normally set into place and
fastened to adjacent cabinetry or to the back wall before
rolling the refrigerator or freezer into the opening.
Refrigerator or Freezer
Design Information
2 1/2"
5"
24 3/4" Total
84 1/2" max
Depth
83 1/2" min
Finished
Opening
5"
Water Supply
3 1/2"
Freezer
*72" min. for a flush installation
71-1/2" min. for a semi-flush installation
NOTE: Additional cutout width may be required when side
panels are used. Add side panel thickness to the finished cutout
to calculate rough-in width. See installation examples below.
ZUGSS Unified Grille Panel Kit
For side by side installation, order ZUGSS grille panel
kit. This kit provides one continuous panel to span the
width of two products installed together for a unified
appearance.
Therefore, the rough-in dimensions must allow for
side panel thickness. In both a flush and semi-flush
installation, the finished dimension (the width of
the opening after side panels are installed) must
accommodate the full width of the product.
See page 10 for side panel sizes.
1/4" Thick
Side Panels
Finished Dim.
35-1/2"
Rough-In Dim.
36"
NOTE: 1/4" thick side panels can be inserted
into the case trim, making the rough-in the
same as the outside trim width: 36".
36" Stainless Steel Refrigerators, Freezers
*Finished Width
Electrical 28 1/2"
6"
6"
5"
26"
Refrigerator
Cabinet
Wall View
75" From Floor
to Bottom
of Electrical
Area
Refrigerator
Cabinet
Refrigerator door
