Zugss Unified Grille Panel Kit - GE Monogram ZIRS36N RH Installation Instructions Manual

Step 1
Install
Spacer Pads,
Replace
Side Case Trims
14
Tools and Materials Required:
• #1 and #2 Phillips screwdrivers or sockets
• 1/4" angled wrench and 1-1/2" open ended
wrench
• Drill and appropriate bits
• Custom grille panel
• Safety glasses
• Gloves to protect against
sharp edges

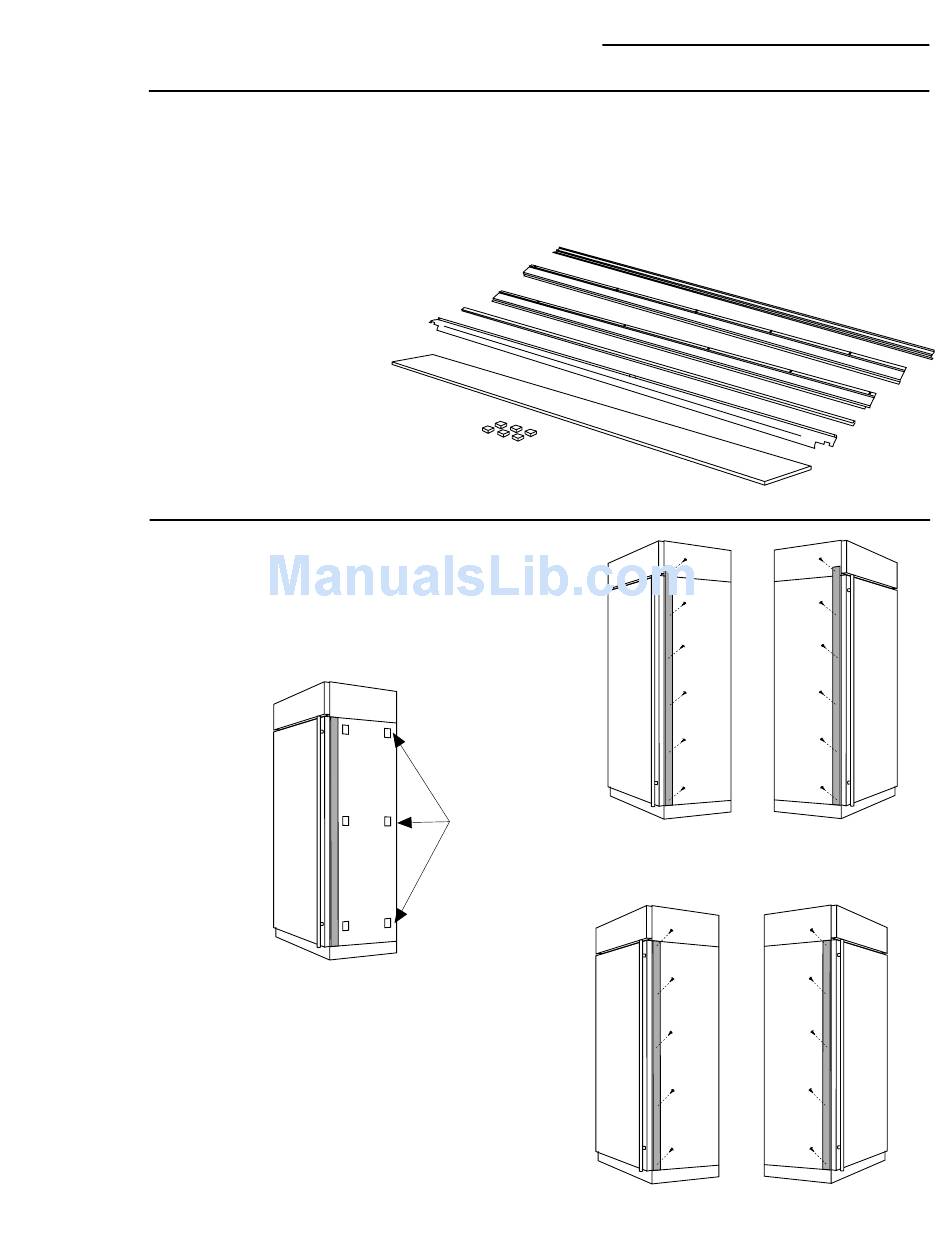

Parts List:
A. Soffit Vent Top
B. Left Side Case Trim
C. Right Side Case Trim
D. Center U-Shape Trim
E. Grille Base Wrap
F. Stainless Steel Unified Panel
G. Foam Spacer Pads
Handle parts with care to avoid scratching.
CAUTION:
In a side by side installation, the inside case trim of both
products will be removed and replaced with a shorter
trim.
• Lift up to remove the supplied grille panel assembly on
both products. Discard both assemblies.
• Apply the supplied foam spacer pads to the mating
side of one product as shown.
ZUGSS Trim Kit
A
B
C
D
E
F
G
Foam
Spacer
Pads
Unified Stainless Steel Custom Grille Panel
Completion Time: Allow approximately 3 hours to install
this kit.
IMPORTANT: 2 People are required to install this kit.
CAUTION: Disconnect power before you begin.
• Remove the Phillips head screws from the inside case
trim of each product as shown. Remove and discard
side trim. Retain screws.
• Install new side case trim with notches toward the
bottom. Install with original screws.
