Auto Provision - ATCOM AT820 User Manual

AT820 Series User Manual

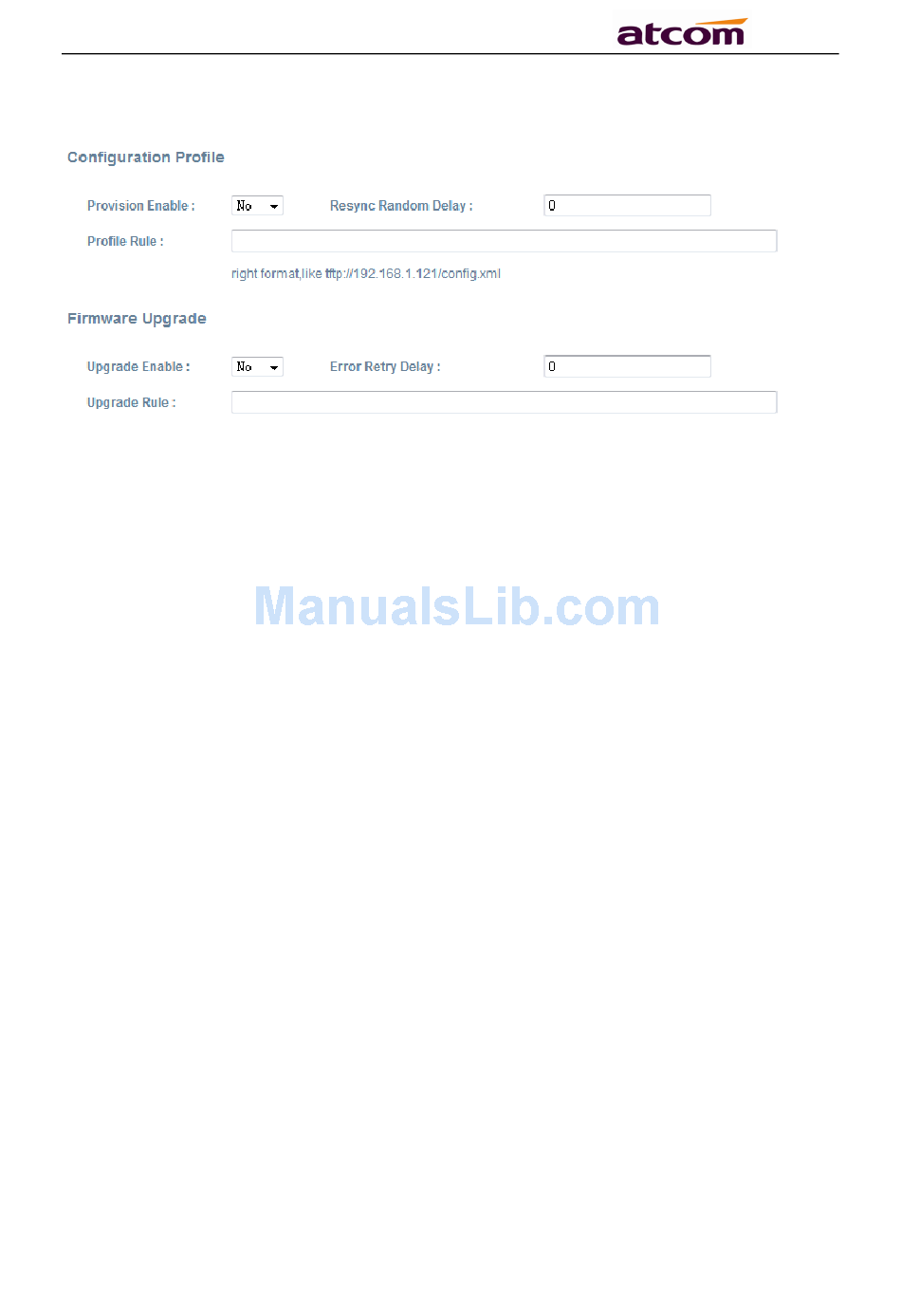

5.6.2 Auto Provision

A. Provision Enable: Whether to enable auto provision or not.
B. Resync Random Delay: Set a random delay to resync.
C. Profile Rule: It supports TFTP/FTP/HTTP auto provision. FTP only supports
anonymous account login. After configuring the TFTP/FTP/HTTP server, set profile
rule as below:
1. TFTP rule: tftp://ip-address/config.xml.
2. FTP rule: ftp://ip-address/config.xml.
3. HTTP rule: http://ip-address/config.xml.
Click on "Submit" after configuration, the phone will reboot, and it will download the
config file automatically and update during the time the phone is rebooting.
D. Upgrade Enable: Whether to enable auto firmware upgrade or not.
E. Error Retry Delay: Set a retry delay when error occurs.
F. Upgrade Rule: It supports TFTP/FTP/HTTP auto provision. FTP only supports
anonymous account login. After configuring the TFTP/FTP/HTTP server, set profile
rule as below:
4. TFTP rule: tftp://ip-address/AT820.xml.
5. FTP rule: ftp://ip-address/AT820.xml.
6. HTTP rule: http://ip-address/AT820.xml.
Click on "Submit" after configuration, the phone will reboot, and it will download the
upgrade file automatically and update during the time the phone is rebooting.
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn
41
