AT820 Series User Manual

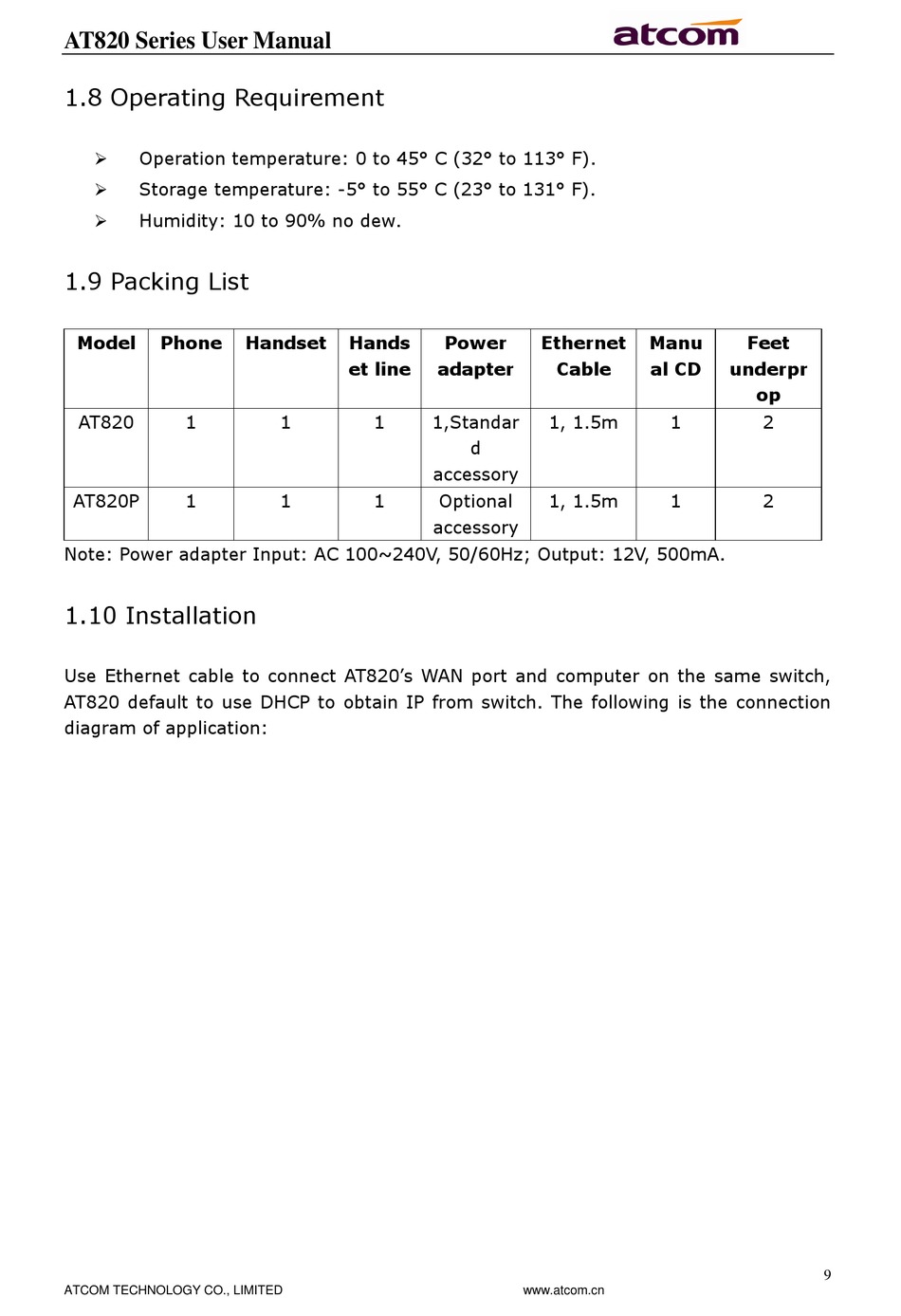

1.8 Operating Requirement

Operation temperature: 0 to 45° C (32° to 113° F).

Storage temperature: -5° to 55° C (23° to 131° F).

Humidity: 10 to 90% no dew.


1.9 Packing List

Model Phone
AT820 1
AT820P 1
Note: Power adapter Input: AC 100~240V, 50/60Hz; Output: 12V, 500mA.

1.10 Installation

Use Ethernet cable to connect AT820's WAN port and computer on the same switch,
AT820 default to use DHCP to obtain IP from switch. The following is the connection
diagram of application:
ATCOM TECHNOLOGY CO., LIMITED
Handset Hands
et line
1 1
1 1
Power Ethernet
adapter Cable
1,Standar 1, 1.5m
d
accessory
Optional 1, 1.5m
accessory
www.atcom.cn
Manu Feet
al CD underpr
op
1 2
1 2
