4

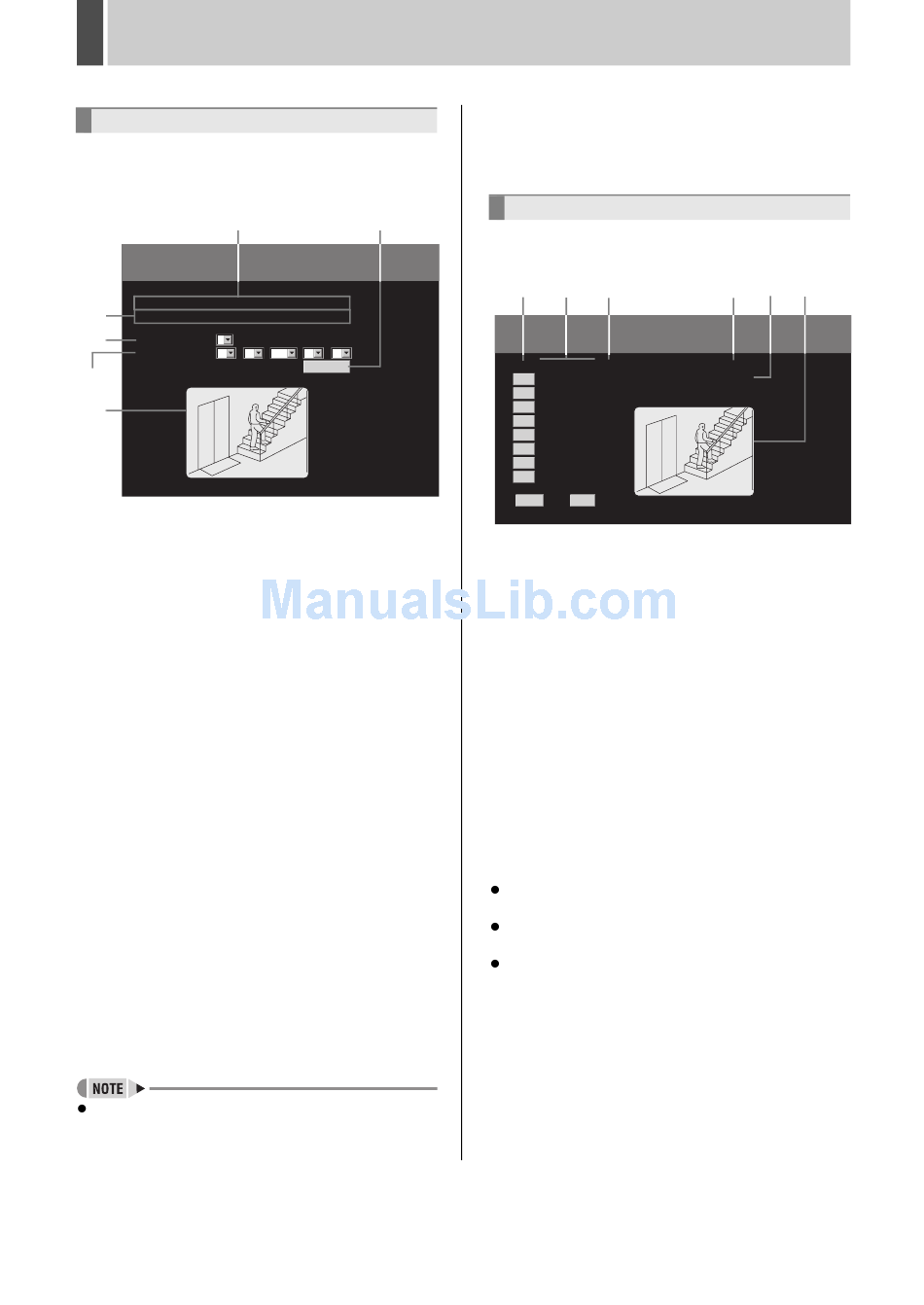

OPERATIONS IN SEARCH MODES
3. TIME/DATE SEARCH
In date/time search mode, images from the normal
recording area or the alarm recording area can be played
back by specifying the corresponding date and time.
TIME/DATE SEARCH
RECORDING TOP
01 - 01 -
(2)
RECORDING END
01 - 01 -
(3)
CHANNEL
--
SEARCH
01
(4)
(6)
PLEASE CLICK THE IMAGE TO PLAY.
(1) RECORDING TOP: Displays the date and time of the
oldest recording
(2) RECORDING END: Displays the date and time of the
newest recording
(3) CHANNEL: Displays the channel (or camera number)
(4) SEARCH: Used to set the recording date and time of
the image to be played back
(5) [PREVIEW]: Used to indicate preview display
(6) PREVIEW: Displays a preview of the image
corresponding to the specified date and time
1
Select "3. TIME/DATE SEARCH" from
the "SEARCH" menu.
The TIME/DATE SEARCH screen is displayed.
2
Specify the channel or camera number
from "CHANNEL" pull-down menu.
3
Specify the recording date and time for
the image to be played back from
"SEARCH" pull-down menu.
Day/Month/Year/Hours/Minutes
4
Click [PREVIEW].
When the search has been completed, the image
corresponding to the specified date and time will be played
back.
If no image exists for the specified date and time, the
image with the nearest recording date and time will be
displayed.
English
(1)
(5)
DATE
TIME
04
00 : 35
04
00 : 35
:
-
-
01
2004
00
35
PREVIEW
PREVIEW
5
Click the preview screen for the image
to be played back.
Full-screen playback will start.
4. ARCHIVE AREA SEARCH
In archive area search mode, you can play back recorded
images stored (or copied) to the archive area.
(1)
(2)
(3)
ARCHIVE AREA SEARCH
NO
DATE
TIME
CH
01- 01 00 :36 01
0001
01- 01 00 :36 01
0002
0003
01- 01 00 :36 01
01- 01 01 :48 01
0004
02- 01 01 :48 01
0005
0006
03- 01 01 :52 01
03- 01 01 :53 01
0007
0007
03- 01 01 :55 01
0008
BACK
NEXT
PAGE
PLEASE CLICK THE IMAGE TO PLAY.
(1) NO: Image number
(2) DATE/TIME: Recording date and time
(3) CH: Displays the channel on which recording was
performed.
(4) CAPACITY TOTAL: Total capacity of the archive area
(5) CAPACITY USED: Amount of archive area capacity
currently storing data
(6) PREVIEW: Displays a preview of the recorded image
1
Select "4. ARCHIVE AREA SEARCH"
from the "SEARCH" menu.
The search screen for the archive area is displayed.
This screen contains a list of stored images displayed in
sequence from the earliest item.
2
Select the image number to be played
back from the stored image list.
A preview of the corresponding stored image is
displayed.
A maximum of 8 stored images can be displayed on a
full screen.
Click [BACK] or [NEXT] button to display the image list
for the previous or subsequent 8 images accordingly.
3
Click the preview screen for the image
to be played back.
Full-screen playback will start.
21
(4)
(5)
(6)
CAPACITY TOTAL-816 MB
USED -
1MB
PREVIEW NO 0001
