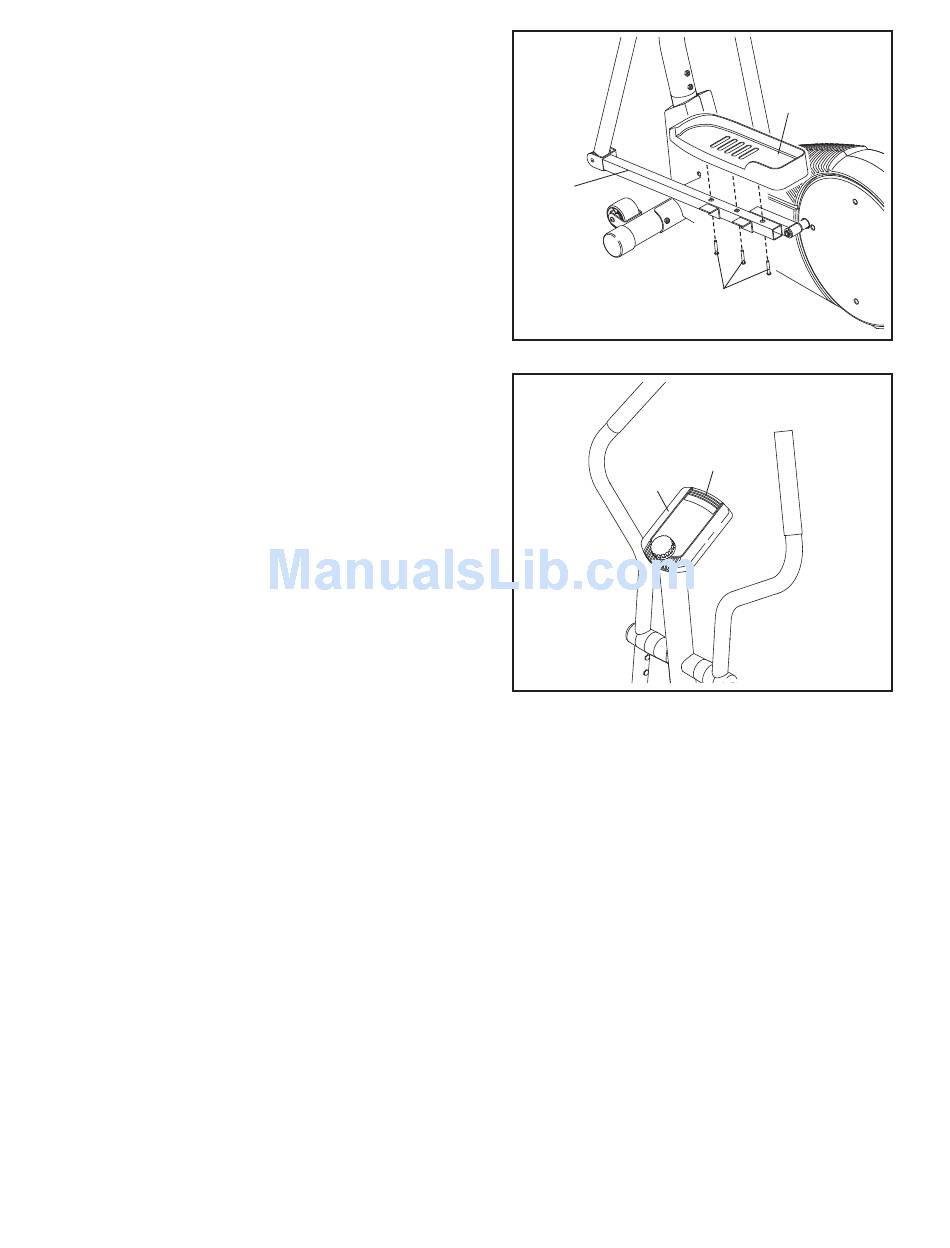

8. Find the Left Pedal (13), which has a ridge on the

right side. Attach the Left Pedal to the Left Pedal Arm

(11) with three M4 x 19mm Flange Screws (36) as

shown.

Attach the Right Pedal to the Right Pedal Arm (not

shown) in the same way.

9. The Console (23) requires three 1.5V "AAA" batteries;

alkaline batteries are recommended. Slide off the

Battery Cover (29) and press the batteries into the

battery clip; make sure that the negative ("–") ends

of the batteries are touching the springs in the

battery clip. Reattach the Battery Cover.

10. Make sure that all parts of the elliptical exerciser are properly tightened. Place a mat under the elliptical

exerciser to protect the floor or carpet from damage.
