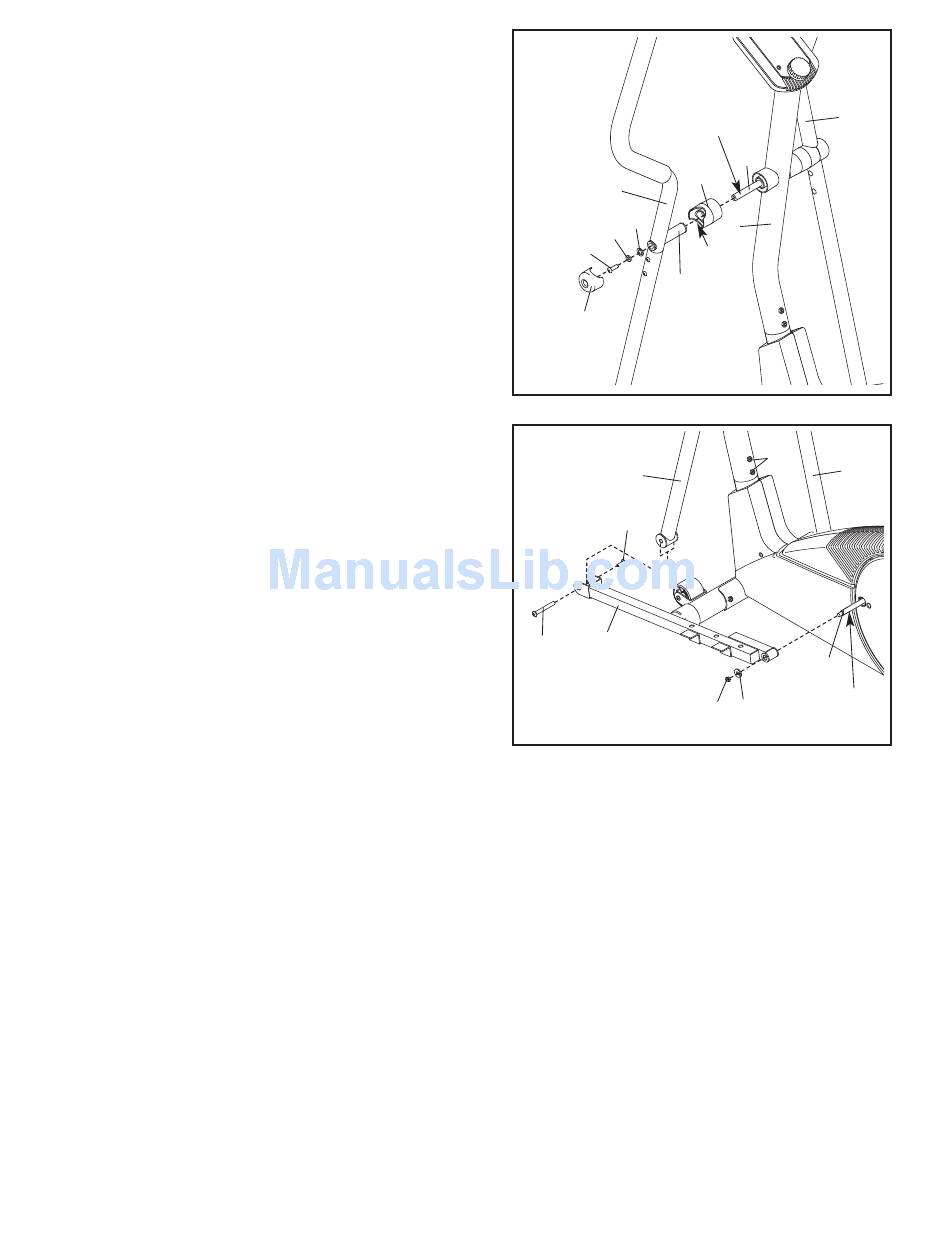

6. Apply a generous amount of the included grease to the
Pivot Axle (71) and to the two M8.5 Washers (55).
Insert the Pivot Axle into the Upright (2) and center it.
Reapply grease to both ends of the Pivot Axle.
Slide a Handlebar Spacer (47) onto the short tube on
each Handlebar (6, 8), and rotate the Handlebar
Spacers so the small arrows are pointing toward the
floor. Then, slide the Handlebars onto the Pivot Axle
(71). Make sure that the Handlebars are on the cor-
rect sides.
Tighten an M8 x 25mm Patch Screw (56) with an M8.5
Washer (55) and a Wave Washer (43) into each end of
the Pivot Axle (71). Orient the two Handlebar Caps (46)
as shown, and press the small tabs on the Handlebar
Caps into the two Handlebar Spacers (47).
7. Apply a small amount of grease to the axle on the left
Disc Crossbar (16). Slide the Left Pedal Arm (11) onto
the axle, and attach it with an M8.5 Large Washer
(35) and an M8 Nylon Locknut (38).
Insert the left Handlebar Arm (5) into the bracket on
the end of the Left Pedal Arm (11), and attach it with
a Pedal Arm Bolt Set (40).
Repeat this step to attach the Right Pedal Arm (not
shown).
See step 5. Tighten the M8 x 45mm Button Bolts
(50) in the Handlebar Arms (5).
Tighten the two M10 x 76mm Button Bolts (67).
6
6
43
55
56
46
7
5
40
11
40
8
8
Grease
71
47
2
Arrow
Tube
67
16
Grease
35
38
5
