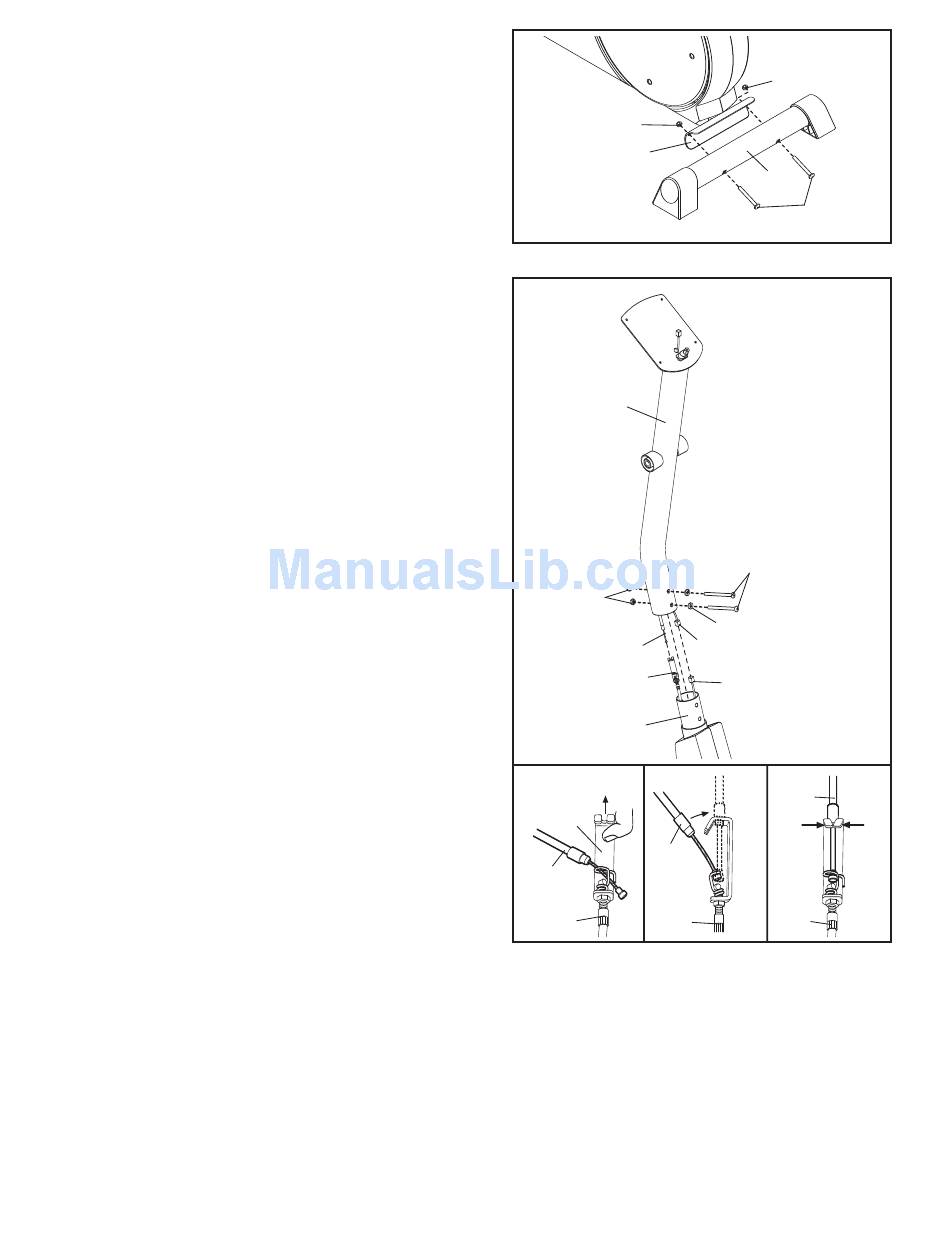

2. While another person lifts the back of the Frame (1)
slightly, attach the Rear Stabilizer (9) to the Frame
with two M10 x 75mm Carriage Bolts (34) and two
M10 Nylon Locknuts (33).
3. While another person holds the Upright (2) near the
Frame (1) as shown, connect the Upper Wire (44) to
the Reed Switch Wire (53).
Next, connect the Resistance Cable (45) to the
Lower Resistance Cable (65) in the following way:
• See drawing A. Pull up on the metal bracket, and
insert the tip of the Resistance Cable (45) into the
wire clip on the Lower Resistance Cable (65) as
shown.
• See drawing B. Firmly pull the Resistance Cable
(45) and slide it into the metal bracket on the
Lower Resistance Cable (65) as shown.
• See drawing C. Using pliers, squeeze the prongs
on the upper end of the metal bracket together.
Slide the Upright (2) onto the Frame (1); make sure
not to pinch the wires or cables. Attach the Upright
with two M10 x 76mm Button Bolts (67), two M10
Nylon Locknuts (33), and two M10 Split Washers (59).
Do not tighten the Button Bolts yet.
2
33
1
3
2
33
45
65
1
A
Metal
Bracket
45
65
6
33
9
34
Make sure not to
pinch the wires
or cables.
59
67
59
44
53
B C
45
45
65 65
