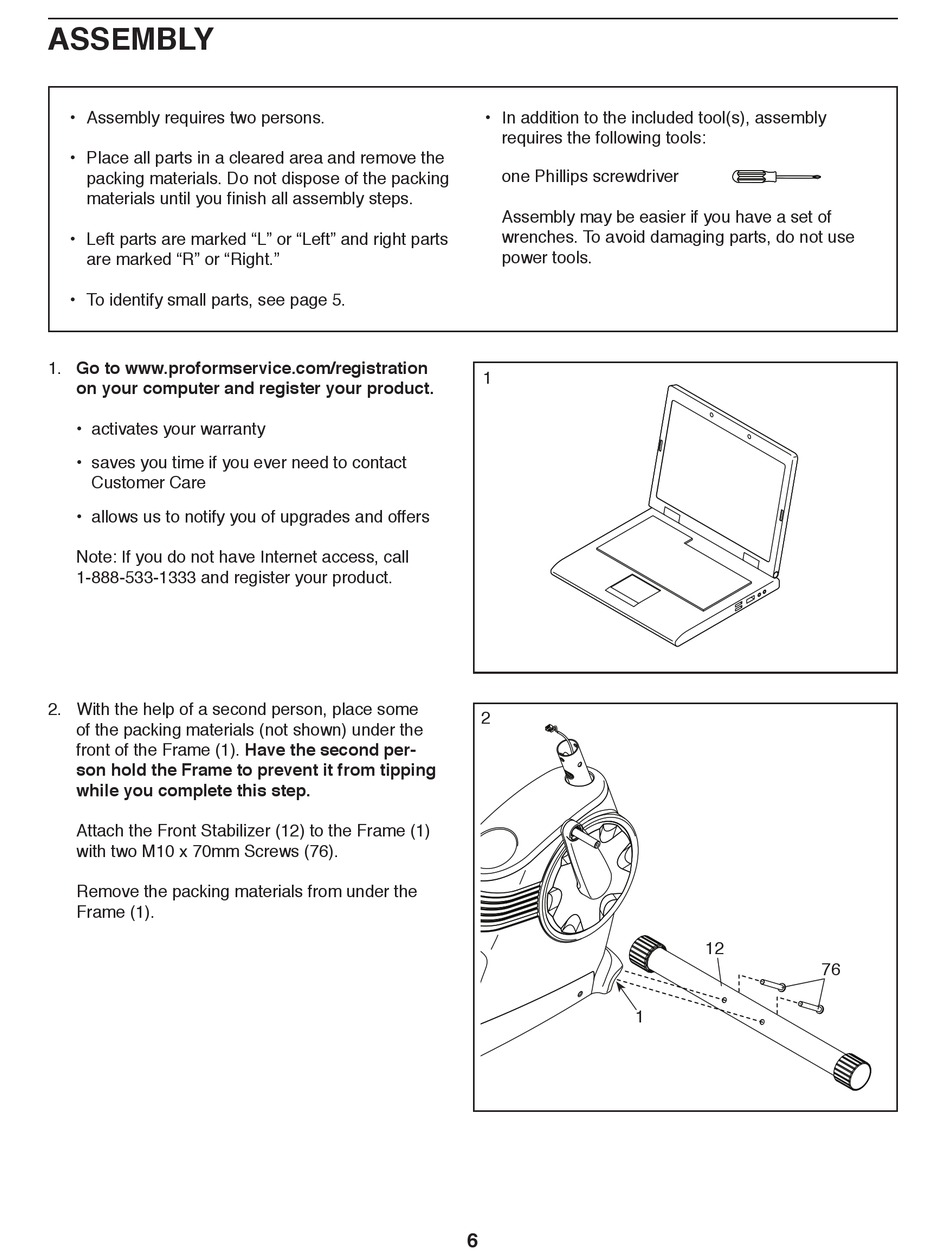

ASSEMBLY

•• Assembly requires two persons.
•• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you  nish all assembly steps.
•• Left parts are marked “"L”" or “"Left”" and right parts
are marked “"R”" or “"Right.”"
•• To identify small parts, see page 5.
1. Go to www.proformservice.com/registration
on your computer and register your product.
•• activates your warranty
•• saves you time if you ever need to contact
Customer Care
•• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
1-888-533-1333 and register your product.
2. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (12) to the Frame (1)
with two M10 x 70mm Screws (76).
Remove the packing materials from under the
Frame (1).
•• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
2
1
6
12
76
