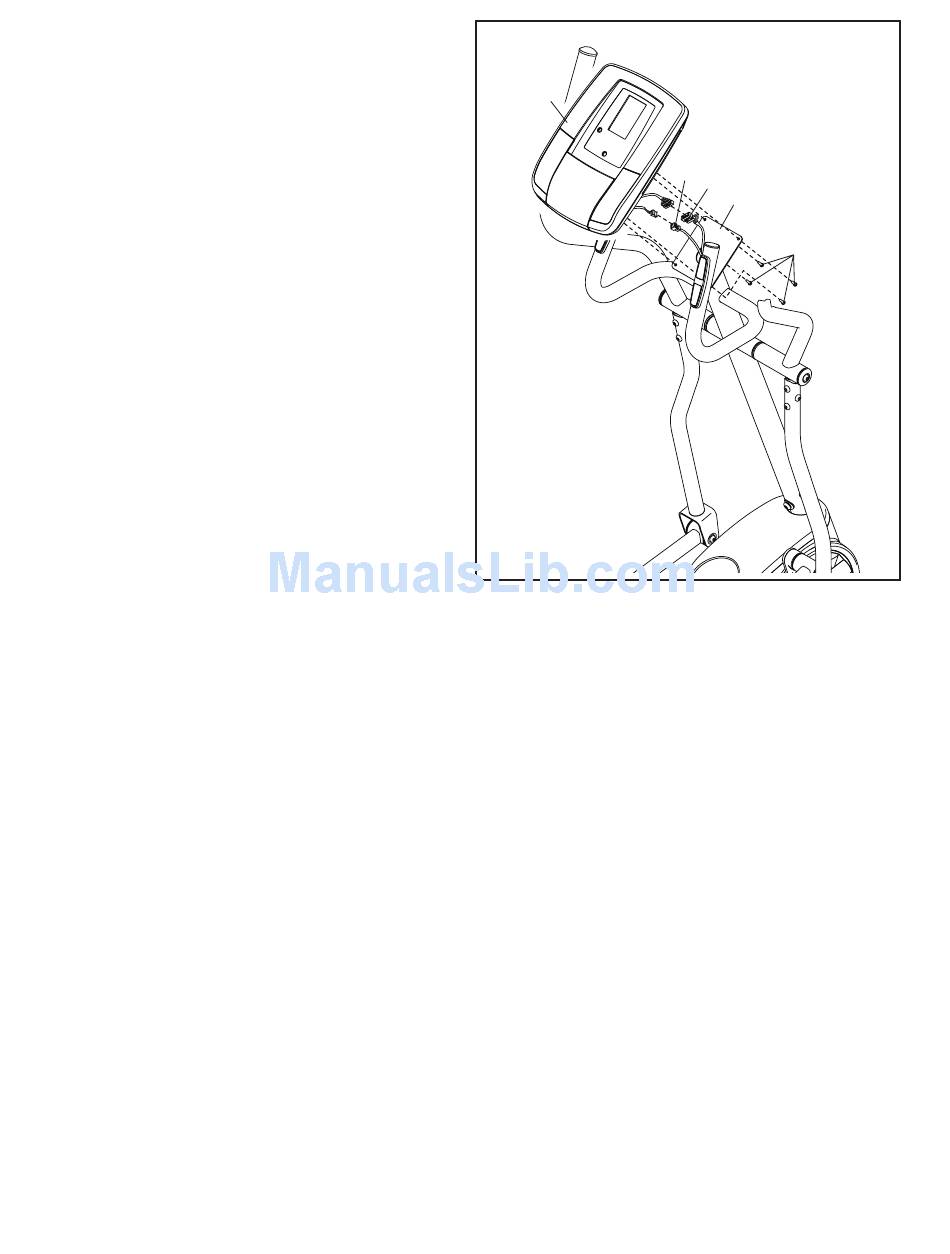

13. Remove and discard the wire tie on the Main
Wire Harness (32).
Have a second person hold the Console (30)
near the Upright (2).
Connect the wires on the Console (30) to the
Main Wire Harness (32) and to the Pulse Wire
Harness (31).
Insert the excess wire into the Upright (2).
Tip: Avoid pinching the wires. Attach the
Console (30) to the Upright (2) with four M4 x
16mm Screws (56).
See step 5. Tighten the M10 x 53mm Screw
(73), the M10 x 20mm Screw (74), and the M10
x 60mm Bolt (72).
See step 7. Tighten the M8 x 38mm Bolts (59).
14. Make sure that all parts are properly tightened before you use the elliptical. Note: Extra parts may be
included. Place a mat beneath the elliptical to protect the floor.
13
30
12
Avoid pinching
the wires
31
32
2
56
