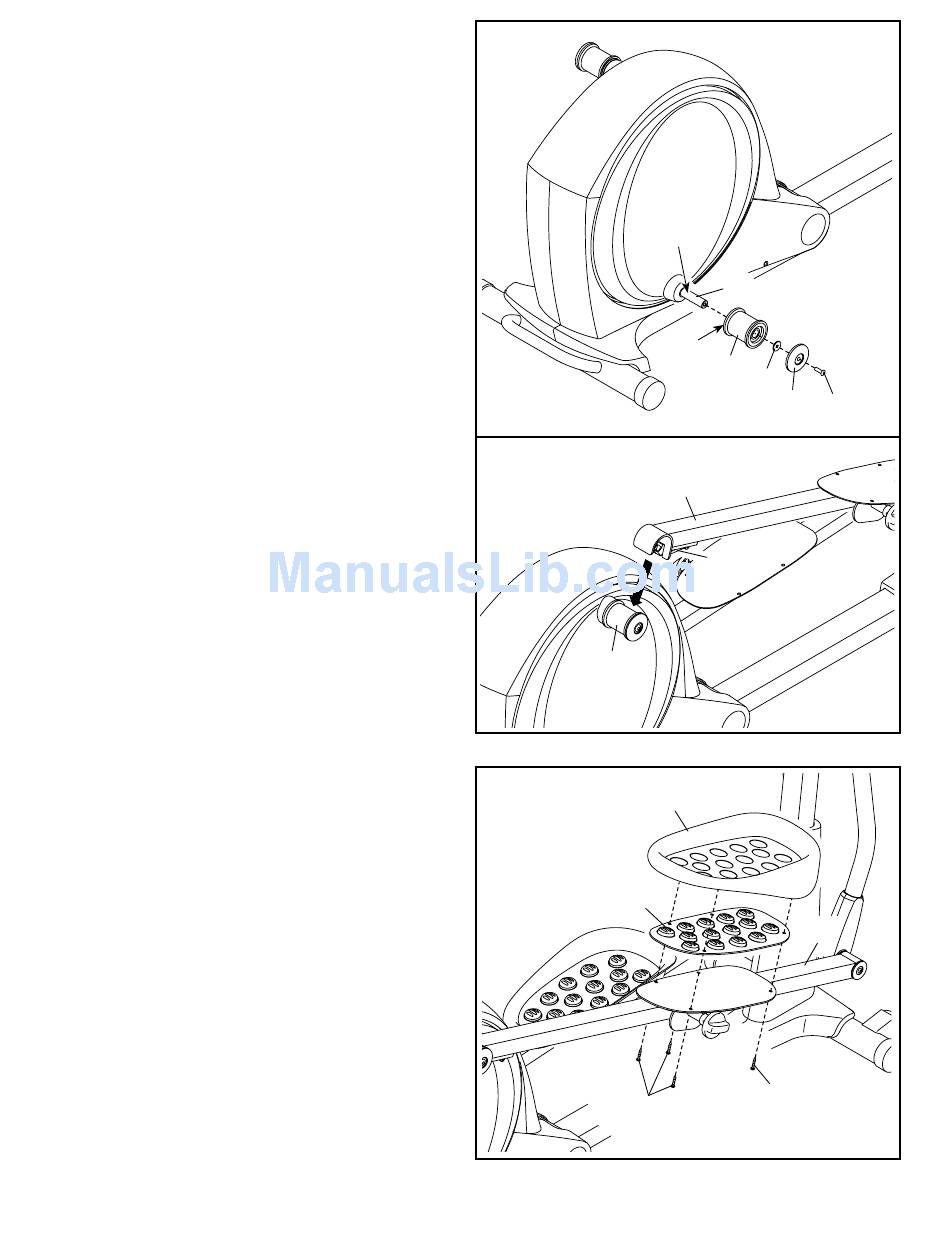

7. See drawing 7a. Apply grease to the axle on the
Right Crank Arm (39).
Orient an Adjustment Sleeve (46) so that the flat
side is facing the elliptical. Slide the Adjustment
Sleeve onto the axle on the Right Crank Arm
(39).
Attach the Adjustment Sleeve (46) with an M8
x 25mm Screw (113), a Crank Cap (43), and an
M8 x 25mm Washer (45). Tip: Avoid damaging
the Crank Cap when tightening the Screw.
See drawing 7b. Lift the Latch (50) on the
underside of the Right Pedal Arm (12), and
then press the Right Pedal Arm onto the right
Adjustment Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
8. Identify the Right Pedal (14) and the Right Pedal
Insert (112), which are marked with “"Right”" stick-
ers, and orient them as shown.
Set the Right Pedal Insert (112) on the Right
Pedal Arm (12). Then, set the Right Pedal (14)
on the Right Pedal Insert.
Attach the Right Pedal (14) and the Right Pedal
Insert (112) to the Right Pedal Arm (12) with four
M6 x 12mm Screws (111).
Repeat this step on the other side of the
elliptical.
7a
Grease
7b
46
8
112
111
9
39
Flat
Side
46
45
43
113
12
50
14
12
111
