Pro-Form 405 Ce Elliptical Manual page 10

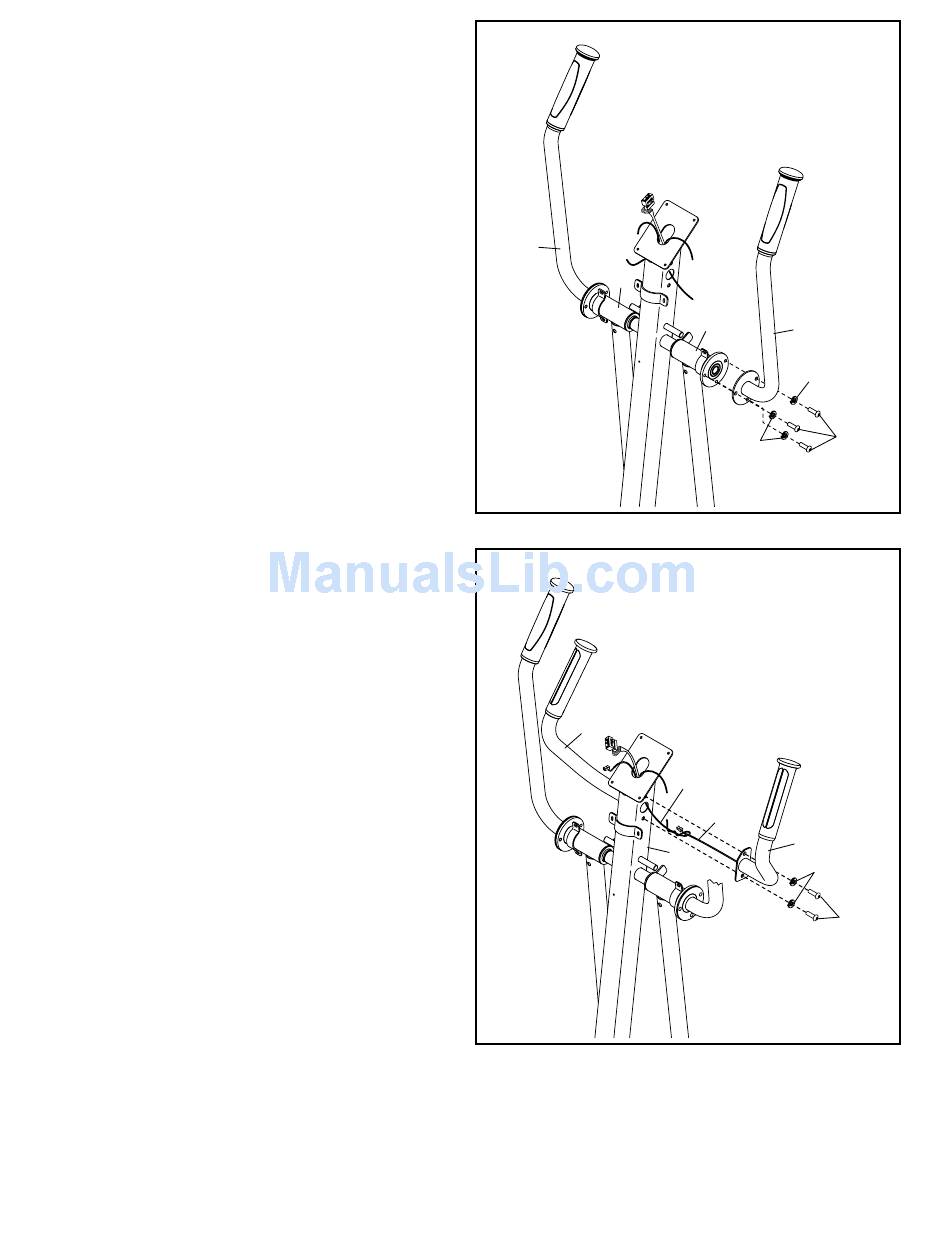

9. Identify the Right Upper Body Arm (8), which
is marked with a “"Right”" sticker, and orient it as
shown.
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x 16mm
Screws (102) and three M8 Split Washers (103).
Attach the Left Upper Body Arm (9) to the
Left Upper Body Leg (7) in the same way.
10. Identify the Right Handlebar (10), which is
marked with a “"Right”" sticker, and orient it as
shown.
Have a second person hold the Right Handlebar
(10) near the right side of the Upright (5).
Locate the indicated wire tie in the Upright (5).
Tie the lower end of the wire tie to the Sensor
Wire (34) inside the Right Handlebar (10). Next,
pull the upper end of the wire tie upward out of
the top of the Upright. Then, untie and discard
the wire tie.
Tip: Avoid pinching the Sensor Wire (34).
Attach the Right Handlebar (10) to the Upright
(5) with two M8 x 16mm Screws (102) and two
M8 Split Washers (103).
Attach the Left Handlebar (11) in the same
way.
9
9
7
10
11
10
6
8
103
102
103
Avoid pinching the
Sensor Wire (34)
Wire Tie
34
10
5
103
102
