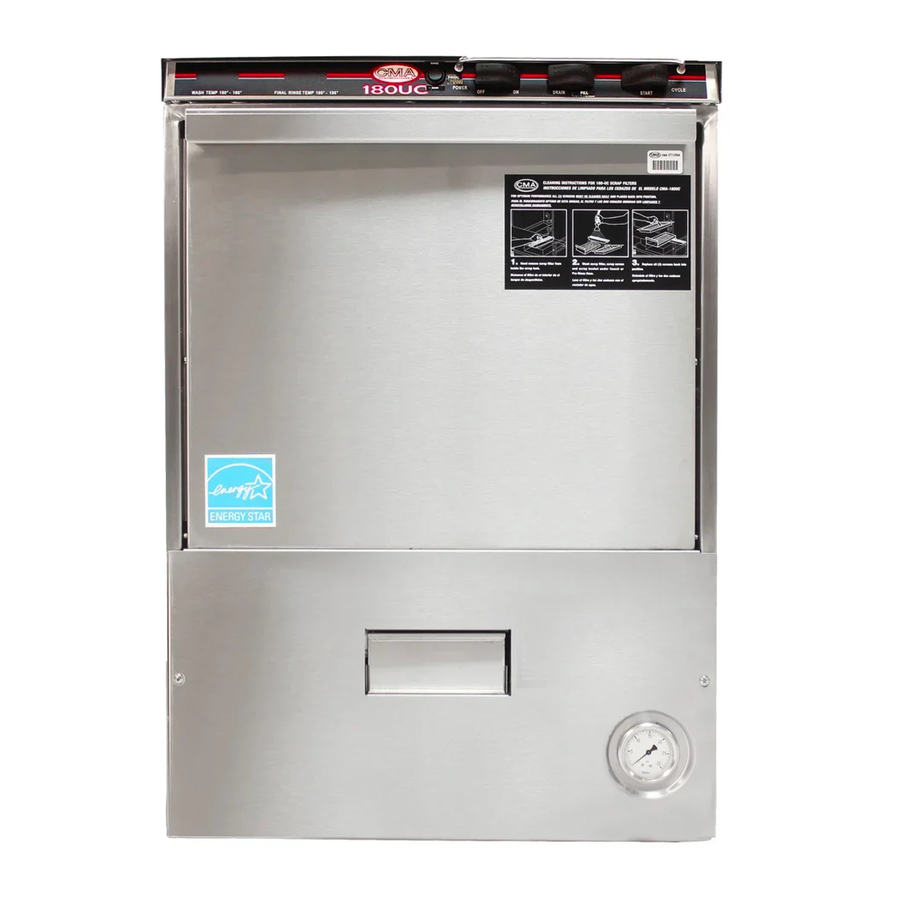

CMA Dishmachines CMA-180UC Installation & Operation Manual

Rev 1.16a
Hide thumbs Also See for CMA-180UC:
Table of Contents

Advertisement

Quick Links

See also: Service & Parts Manual
Owner's Manual
Keep with machine for reference
MODEL CMA-180UC
&
INSTALLATION
OPERATION
Rev 1.16A
C M A D I S H M A C H I N E S
1 2 7 0 0 K N O T T A V E N U E
GARDEN GROVE, CALIFORNIA 92841
8 0 0 - 8 5 4 - 6 4 1 7
F A X 7 1 4 - 8 9 5 - 2 1 4 1
www.cmadishmachines.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMA-180UC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CMA Dishmachines CMA-180UC

Summary of Contents for CMA Dishmachines CMA-180UC

  • Page 1 Owner’s Manual Keep with machine for reference MODEL CMA-180UC & INSTALLATION OPERATION Rev 1.16A C M A D I S H M A C H I N E S 1 2 7 0 0 K N O T T A V E N U E...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS CMA-180UC ODEL 1. SPECIFICATIONS ..................2 1.1. CMA-180UC ......................... 2 1.2. CMA-180UC O ..................3 PERATIONAL YCLE 2. GETTING STARTED ..................5 2.1. CMA-180UC ................... 5 NTRODUCTION TO 2.2....................6 ECEIVING AND NSTALLATION 2.2.1. Electrical ........................6 2.2.2.

  • Page 3: Mcma-180Uc

    THIS SYSTEM REQUIRES THREE POWER WIRES, WHICH INCLUDES A CURRENT CARRYING NEUTRAL. AN ADDITIONAL FOURTH WIRE MUST BE PROVIDED FOR MACHINE GROUND. SHIPPING WEIGHT 234# (106 kg) * For machines having "SAFETY TEMP" feature. ** For faster heat recovery. Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 4: Cma-180Uc Operational Cycle

    1.2. CMA-180UC Operational Cycle The CMA-180UC Operational Cycle has a total cycle time of 2 minutes (120 seconds). The Timing Diagram and the steps listed below detail the individual functions that are executed during each Operational Cycle. Seconds: Instant Start Relay...
  • Page 5 180 degrees. Machine will remain in wash cycle mode until 180-degree rinse temperature is reached, and at this time the cam timer will advance automatically into the rinse cycle and dispense 180 degrees rinse water over the dishes. Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 6: Getting Started

    180°F final rinse water each cycle. The supply water to the CMA-180UC must be a minimum of 140°F at 24 PSI (Pounds per Square Inch) with a 6 GPM (Gallons Per Minute) flow rate and 60 GPH (Gallons Per Hour) recovery rate.

  • Page 7: Receiving And Installation

    ½”. The supply water to the CMA-180UC must be a minimum of 140°F at 24 PSI (Pounds per Square Inch) with a 6 GPM (Gallons Per Minute) flow rate and 60 GPH (Gallons Per Hour) recovery rate.

  • Page 8: Beta Detergent And Rinse Dispenser (Optional)

    Undercounter machine with the optional dispenser must be ordered separately, as option at time of order. Optional dispenser has to be pre-wired prior to shipment (see electrical diagram for wiring options). Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 9: Nova Detergent And Rinse Dispenser (Optional)

    All electrical and plumbing connections must be made by a qualified person who will comply with all available Federal, State, and Local Health, Electrical, Plumbing and Safety codes Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...
  • Page 10 The reference manual supplied with the dispenser shows you how to program it.  Keep in mind while reading the reference manual that the CMA-180UC operates in “probe-less” mode. (This mode is selected by setting a value of “2”...

  • Page 11: Safe Ttemp Feature

    #21/NC on contactor, and spade end to top terminal on 5 micro switch. HEATER CONTACTOR SafeTtemp harness Dishmachine harness Female bullet connector Male bullet connector Female bullet connector Male bullet connector Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 12: Water Tempering Kit

    2.2.6. Water Tempering Kit Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 13: Booster Heater Setup

    Machine has been “hard-wired” with correctly sized wire  Booster tank has been filled with water (before High Limit Switch is reset)  High Limit Switch for heater has been reset (after Booster Tank has been filled) Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 14: Operation

    Flow Disc reduces pressure to the standard recommended 20 PSI. 3.1.2. Rinse Pressure Regulator (Old Models Prior January 2008). The CMA-180UC requires a supply water input pressure of 24 PSI minimum. This pressure is then reduced by the supply water regulator. Use the following procedure to adjust the rinse pressure to 20 PSI: 1.

  • Page 15: Operating And Cleaning Instructions

    Parts Manual 3.3. Operating and Cleaning Instructions Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 16: Preventive Maintenance Chart

    Parts Manual 3.4. Preventive Maintenance Chart Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 17: Quick Service Guide

    Clean bearing and arm jets Tank discharge screen dirty Clean screen Wash tank will not drain. Drain valve not operating Check power to drain valve Drain valve faulty Replace Drain valve, P/N 04103.00 Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 18: Troubleshooting

    Replace heater contactor P/N: 15504.50 *The timer assembly motor ( ) or micro switches ( ) can be replaced P/N: 00501.00 P/N: 00411.00 independently if that’s the only component that’s failed. Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 19: Parts Manual

    Replace timer assembly* P/N: 14408.80 *The timer assembly motor ( ) or micro switches ( ) can be replaced P/N: 00501.00 P/N: 00411.00 independently if that’s the only component that’s failed. Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...
  • Page 20 Defective thermister Replace thermister P/N: 03202.65 *The timer assembly motor ( ) or micro switches ( ) can be replaced P/N: 00501.00 P/N: 00411.00 independently if that’s the only component that’s failed. Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 21: Parts Kit

    Pump Seal Kit 13417.89 Heater Thermostat 17523.60 High Limit Switch 200°F 00411.00 Microswitch 03202.66 Thermocouple (Control Products) 03604.30 Dema Valve Repair Kit 3/8",1/2" & 3/4 41015.60 Water Solenoid Coil Only 110V Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 22: Drain Pump

    Drain Line Gooseneck 15601.10 Black Drain Hose 1" ID X 3 1/2" 03801.10 10-32 SS Nut 15605.00 Drain Hose with Goose Neck 04806.00 #10 Brass Washer 15601.60 Robber Hose 90 Deg. Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 23: Drain Pump Removal Instructions

    Remove this hose clamp over Drain Valve. Remove drain hose from the drain gooseneck Disconnect 3- inch pump inlet drain hose. Figure 1 Figure Figure 2 Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 24: Customer Notice

    Automatic Dispensing Equipment 1. Applications utilizing automated dispensers for administering warewash chemicals must use 110v dispenser equipment. There is a 110v power block for installing this equipment inside the control panel. Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...

  • Page 25: Electrical Diagram

    Electrical Diagram 6. Electrical Diagram Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...
  • Page 26 Electrical Diagram Page MODEL CMA-180UC INSTALLATION & OPERATION MANUAL Rev. 1.16A...
