Summary of Contents for IMC Networks iMcV-T1/E1/J1

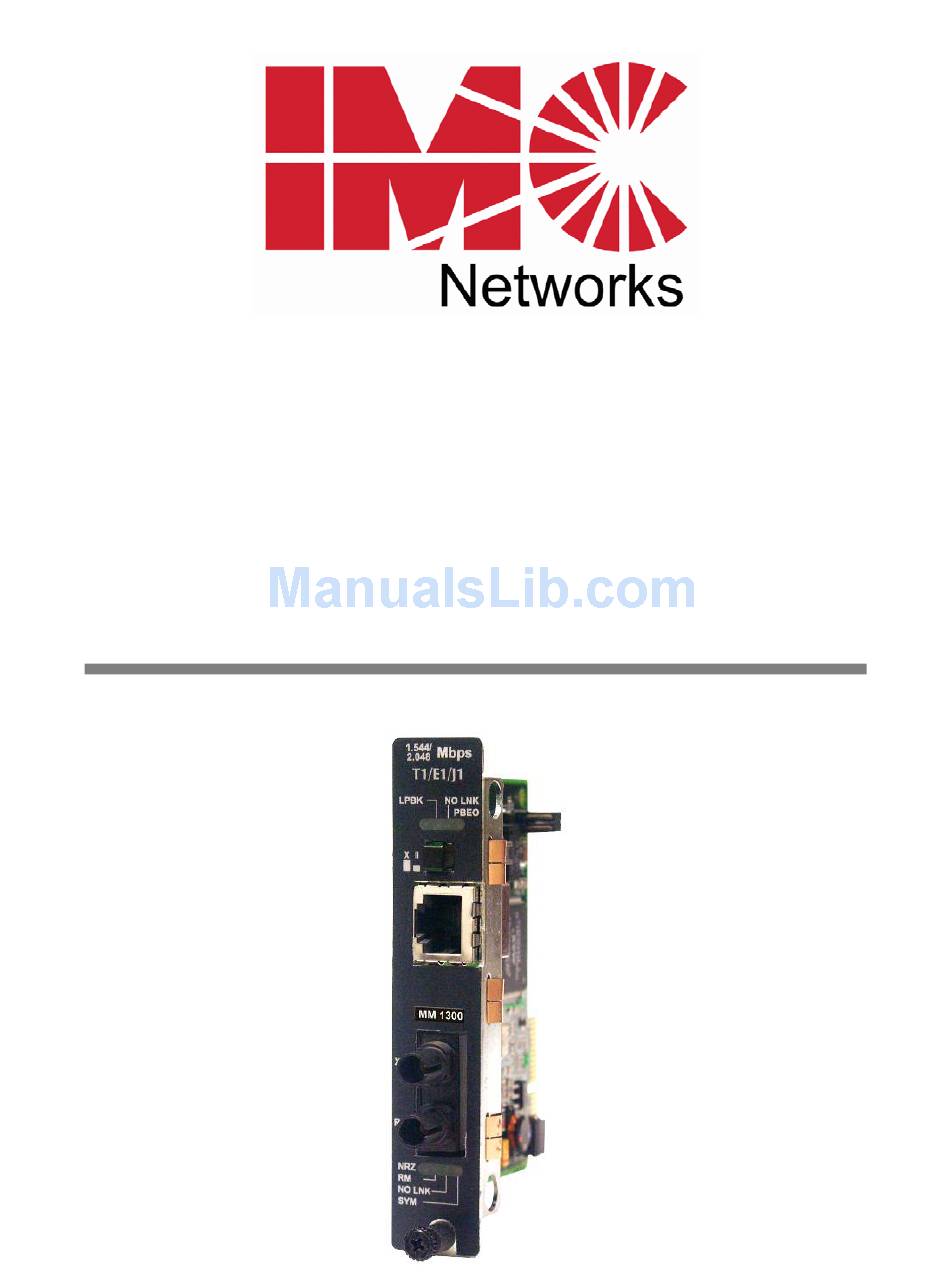

- Page 1 Repeater Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the iMcV-T1/E1/J1 Repeater..............1 Installating an iMcV-T1/E1/J1 Repeater ...............1 Configuration Instructions ..................2 Requirements.....................2 DIP Switches......................4 LED Operation....................9 Troubleshooting ....................13 Specifications ....................14 IMC Networks Technical Support..............14 Fiber Optic Cleaning Guidelines...............15 Electrostatic Discharge Precautions..............15... -
Page 4: About The Imcv-T1/E1/J1 Repeater
The distances can support up to 100km depending on the module used and the fiber type available. Each iMcV-T1/E1/J1 Repeater includes one RJ-48 connector and one pair of SC or ST fiber optic connectors, which can support any fiber type in MultiMode or SingleMode. -
Page 5: Configuration Instructions
Configuration Instructions The iMcV-T1/E1/J1 Repeater module is factory-configured to use the following default features: T1/E1 Mode Receive Equalizer Gain Limit (EGL) -30 dB (Limited Long Haul) Line Encoding AMI (Passive Mode) Transmit LIU Waveshape (Build-out) DSX-1 (0 to 133 ft) 0 dB CSU... - Page 6 Managed Modules To manage iMcV-T1/E1/J1 Repeater modules, an SNMP agent must be present; the iMediaChassis requires an SNMP management module. For a managed environment, first manually configure all of the desired DIP Switch selectable features to match what will be configured through the SNMP Management Module.
-
Page 7: Dip Switches
Unmanaged Modules Before installing the iMcV-T1/E1/J1 Repeater module into an unmanaged chassis, configure the modules for Host/Remote Units. For further information concerning the remaining DSW support Passive Module, see the Passive Mode section of this manual. DIP Switches All iView... - Page 8 Switch Settings for Switch S2 T1/E1 Selection S2-1: OFF T1 Mode Selected default S2-1: ON E1 Mode Selected Receive Equalizer Gain Limit (EGL) iVIEW S2-2: ON -12 dB (Short Haul) iVIEW S2-2: OFF -43 dB (Long Haul) iVIEW iVIEW S2-2: ON -36 dB (Long Haul) iVIEW S2-2: OFF -30 dB (Limited Long Haul)
- Page 9 S3-10: Factory Configured DO NOT CHANGE Description of DIP Switch-Selectable Options The iMcV-T1/E1/J1 Repeater module includes DIP Switches for hardware settings for the optional features. Some of these switch options are overridden by the SNMP configuration of a managed chassis (refer to the DIP Switch Table section for a list of the iView managed switches).
- Page 10 Line Encoding This option allows the user to set the transmit/receive encoding for HDB3, B8ZS or AMI (default). NOTE There are currently no applications that use any other settings than AMI encoding and NRZ disabled (Passive mode). Changing the encoding setting to anything other than AMI can result in data corruption.
- Page 11 Loopback Selection This option allows the user to set the Loopback location on the module. Loopback is a diagnostic tool that enables the user to test the integrity of the line by allowing the data to be looped back. The following independent loopback locations are included on the module: Analog Loopback Set this switch on the Remote module to loop the data back...
-
Page 12: Led Operation
NO LNK PBEO Only used when the Transmit Data Source option is set to PRBS. This LED will glow amber when the iMcV-T1/E1/J1 Repeater module receives errors and will stay dark when the converter receives a PRBS without errors. Fiber Port LEDs Glows green when the NRZ mode is enabled. - Page 13 The Analog loopback location on the module loops the copper-transmit port to the copper- receive port. The iMcV-T1/E1/J1 Repeater can be configured to use the following loopback test modes: This setting tests the path from the CO copper Local Fiber Loopback Mode port to the Local iMcV-T1/E1/J1 Repeater module fiber port and back.
- Page 14 (DIP Switch S3-3=On and S3-4=On). This configuration allows the user to test the path from the CO copper port to the Local iMcV-T1/E1/J1 Repeater module fiber port and loop it back. The transmitted data is sent unhindered and the received data is ignored.
-
Page 15: Fiber Optic Specifications
(DIP Switch S3-3=On and S3-4=Off). This configuration allows the user to test the path from the CO copper port to the Remote iMcV-T1/E1/J1 Repeater module copper port and loop it back. The transmitted data is sent unhindered and the received data is ignored. -
Page 16: Troubleshooting
Verify that the NO LNK LED for the fiber port is off. For single-strand fiber products, connect a single fiber cable from the Local iMcV-T1/E1/J1 Repeater to the remote iMcV-T1/E1/J1 Repeater. Verify that the NO LNK LED for the fiber port is off. -
Page 17: Specifications
-4°F to +158°F (-20°C to +70° C) Humidity 5 to 95% (non-condensing); 0 to 10,000 ft. altitude Dimensions Single Slot iMcV-Module IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com... -
Page 18: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 19: Safety Certifications
Safety Certifications UL/CUL: Listed to Safety of Information Technology Equipment, including Electrical Business Equipment. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. - Page 20 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. iMcV-T1/E1/J1 Repeater is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
