Summary of Contents for IMC Networks iMcV-T1

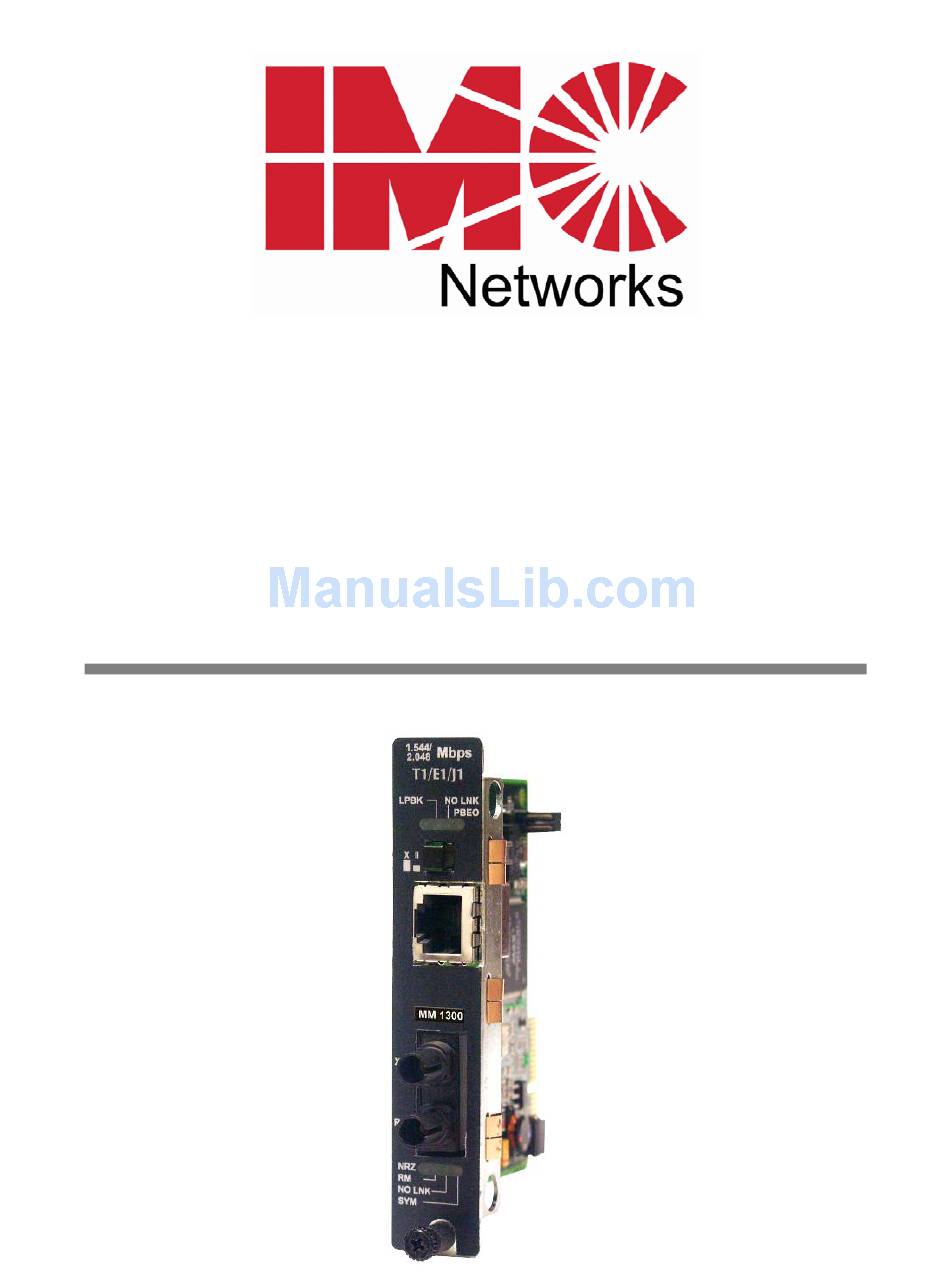

- Page 1 Repeater Operation Manual...
-
Page 2: Fcc Radio Frequency Interference Statement
At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship. -
Page 3: Table Of Contents
Table of Contents FCC Radio Frequency Interference Statement ............ii Warranty......................ii About the iMcV-T1/E1/J1 Repeater..............4 Installation ......................4 Configuration .....................5 Prerequisites ......................5 Description of DIP Switch-Selectable Options ............7 Module LED Functions..................12 Testing ......................13 Fiber Optic Specifications.................16 RJ-48 Pinout ....................16 Specifications ....................17 IMC Networks Technical Support..............17 Fiber Optic Cleaning Guidelines...............18... -
Page 4: About The Imcv-T1/E1/J1 Repeater
NOTES Chassis are also available in Industrial Ethernet (IE) configurations. It is not recommended that the iMcV-T1/E1/J1 module be installed in an 850-33100. The power source in this chassis is not isolated, and cannot support positive reference ground systems typically used in Telco environments. -
Page 5: Configuration
Configuration The iMcV-T1/E1/J1 Repeater module is factory-configured to use the following default features: T1/E1 Mode Receive Equalizer Gain Limit (EGL) -30 dB (Limited Long Haul) Line Encoding AMI (Passive Mode) Transmit LIU Waveshape (Build-out) DSX-1 (0 to 133 ft) 0 dB CSU... - Page 6 Switch S2-2 to the “ON” position on the Remote module (refer to the DIP Switch diagram and table). Managed Modules To manage iMcV-T1/E1/J1 Repeater modules, an SNMP agent must be present; the iMediaChassis requires an SNMP management module. For a managed environment, first manually configure all of the desired DIP Switch selectable features to match what will be configured through the SNMP Management Module.
-
Page 7: Description Of Dip Switch-Selectable Options
Unmanaged Modules Before installing the iMcV-T1/E1/J1 Repeater module into an unmanaged chassis, configure the module hardware-selectable features via DIP Switches located at position S3 and S2 on the PCB (refer to the DIP Switch Table section for more information). The jumpers located at positions JP1 and JP2 are factory configured—... - Page 8 Receive LIU Termination (Line Termination) This option allows the user to set the receive termination. This is used to properly terminate cables in order to prevent signal reflections which can cause signal degradation. Transmit Data Source This option allows the user to set the module to send normal data (default) or to send specific test-patterns of data to determine problems along the cable as a diagnostic tool.
-
Page 9: Remote Management
Remote Management This option allows the user to enable Remote management on the module. The remote management feature is designed to work only on the remote module of the Local/Remote pair. With Remote management enabled, the user can easily perform the following: •... - Page 10 Switch Settings for Switch S2 T1/E1 Selection S2-1: OFF T1 Mode Selected default S2-1: ON E1 Mode Selected Receive Equalizer Gain Limit (EGL) iVIEW S2-2: ON -12 dB (Short Haul) iVIEW S2-2: OFF -43 dB (Long Haul) iVIEW iVIEW S2-2: ON -36 dB (Long Haul) iVIEW S2-2: OFF -30 dB (Limited Long Haul)
- Page 11 Switch Settings for Switch S3 Jitter Attenuator Select S3-1: ON Place Jitter Attenuator on RCV Side S3-1: OFF Place Jitter Attenuator on XMT Side default Remote Management S3-2: ON Remote Management Enabled (only at the REMOTE end) S3-2: OFF Remote Management Disabled (only at the LOCAL end) default Loopback Selection iVIEW iVIEW...
-
Page 12: Module Led Functions
Only used when the Transmit Data Source option is PBEO set to PRBS. This LED will glow amber when the iMcV-T1/E1/J1 Repeater module receives errors and will stay dark when the converter receives a PRBS without errors. Fiber Port LEDs Glows green when the NRZ mode is enabled. -
Page 13: Testing
Verify that the NO LNK LED for the fiber port is off. For single-strand fiber products, connect a single fiber cable from the Local iMcV-T1/E1/J1 Repeater to the remote iMcV-T1/E1/J1 Repeater. Verify that the NO LNK LED for the fiber port is off. - Page 14 The iMcV-T1/E1/J1 Repeater can be configured to use the following loopback test modes: This setting tests the path from the CO copper Local Fiber Loopback Mode port to the Local iMcV-T1/E1/J1 Repeater module fiber port and back. This setting tests the path from the CO copper...
- Page 15 (DIP Switch S3-3=Off and S3-4=On). This configuration allows the user to test the path from the CO copper port to the Remote iMcV-T1/E1/J1 Repeater module fiber port and loop it back. The transmitted data is sent unhindered and the received data is ignored.
-
Page 16: Fiber Optic Specifications
Testing with Pseudorandom Bit Sequence (PRBS) To test the copper segment from the Remote module to the Customer Premises Equipment (CPE) by using PRBS, perform the following: Set the CPE to loopback the signal. Set the Remote module to generate PRBSs (DIP Switch S2-9=On and S2-10=Off). -
Page 17: Specifications
-4°F to +158°F (-20°C to +70° C) Humidity 5 to 95% (non-condensing); 0 to 10,000 ft. altitude Dimensions Single Slot iMcV-Module IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com... -
Page 18: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 19: Safety Certifications
Safety Certifications UL/CUL: Listed to Safety of Information Technology Equipment, including Electrical Business Equipment. CE: The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC) and the Council Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). - Page 20 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. iMcV-T1/E1/J1 is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
