1-Line Dual-Mode - GateWay Fax Systems 90SI User Manual

GateWay Fax Systems, inc.
Configuration
Secure Only
2-Line Dual-
Mode
1-Line Dual-
Mode
1-Line Dual-
Mode with an
A/B Switch
1-Line Dual-
Mode with 910
Option
NOTE: Primary is defined as a secure fax that operates as you would expect, without any unique or unusual
steps. For non-secure fax operation, it means that the COTS fax will automatically answer an incoming non-se-
cure fax call, just like all of the dedicated non-secure faxes you have used. Secondary means that an operator will
have to be present to receive a non-secure fax call.
2 .3 .4 1-Line, Dual-Mode
With this configuration your fax will function as a Secondary non-secure fax as well as your primary secure fax.
Only one phone line is required, however an operator must be present to receive a non-secure fax.
Set the Configuration to (02) 1-Line Dual-Mode. See Section 2.4, Setting Your Chosen Configuration for in-
structions on how to do this.
90si Secure Fax Gateway
5VDC Power
Supply
www.gwfs.com, 877-951-9800, info@gwfs.com
Secure Non-Secure
Operation Operation
Primary n/a
Primary Primary
Primary Secondary
Manual Manual
Secure of Secure of
Non-Sec Non-Sec
Primary Primary
Rear Panel
STE
"Red"
Data Port
Secure Telephone
/ Crypto
(Set to Async 9.6kbps)

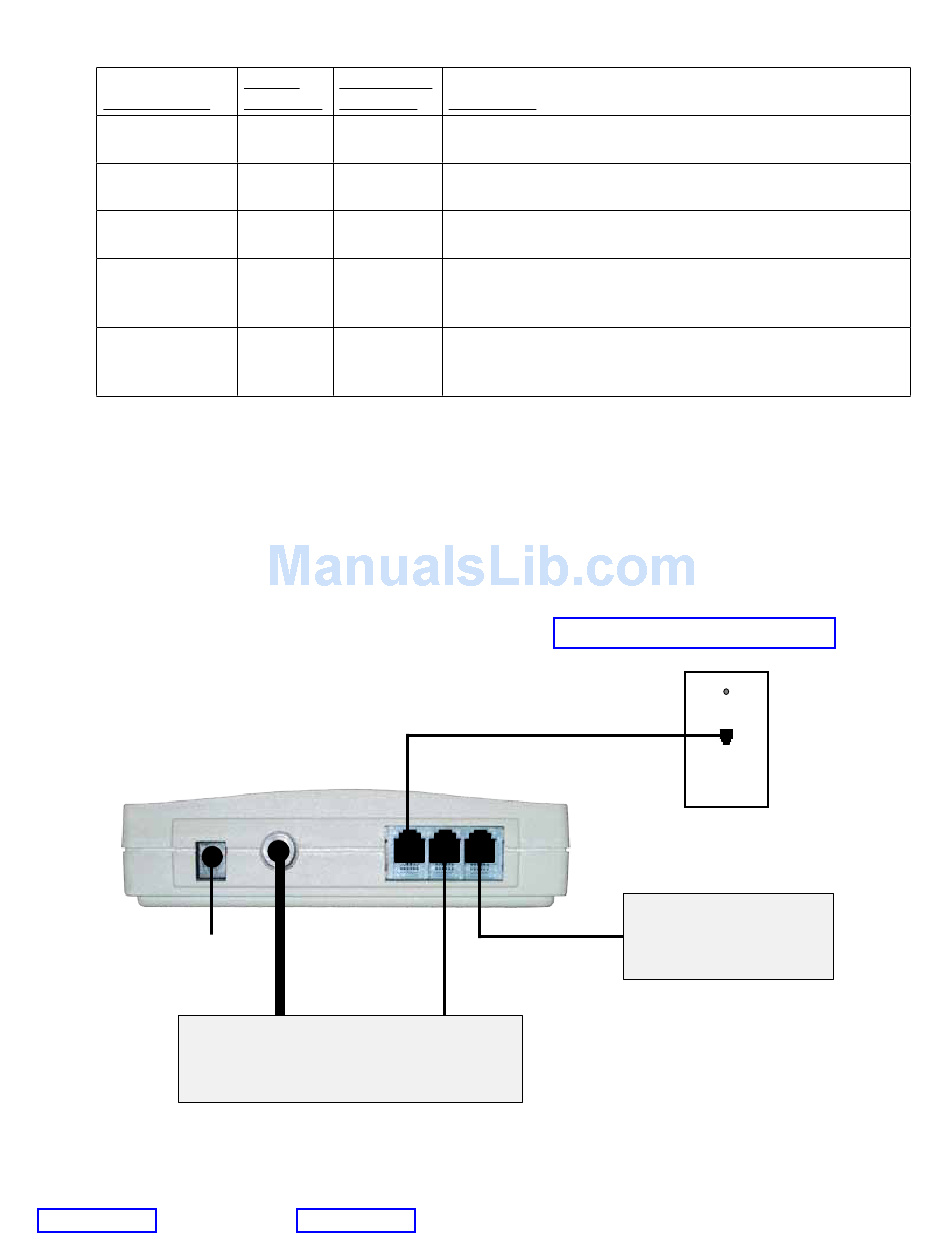

Figure 2: 1-Line, Dual-Mode Configuration
Description
For Secure Fax operation only (factory default setting); See
Section 2.3.1 Secure Only Configuration.
For primary Non-Secure fax and primary Secure fax operation
using 2 separate telephone lines; See Section 2.3.5.
For secondary Non-Secure fax and primary Secure fax opera-
tion using 1 telephone line for all functions; See Section 2.3.4.
For manual, selective Secure and Non-Secure fax operation
using 1 telephone line for either Non-Secure fax OR Secure
operation. See Section 2.3.7.
For primary Non-Secure and primary Secure fax operation,
automatically, using only 1 telephone line. See Section 2.3.6.
TEL LINE
FAX
LINE
PSTN
help line: 877-951-9814
Model 90si Secure Fax Gateway
Phone Line
Telephone
Wall Jack
Commercial-Off-The-Shelf
Fax Machine
(Set to Auto-Answer on 1 Ring)
User's Guide
page 9
