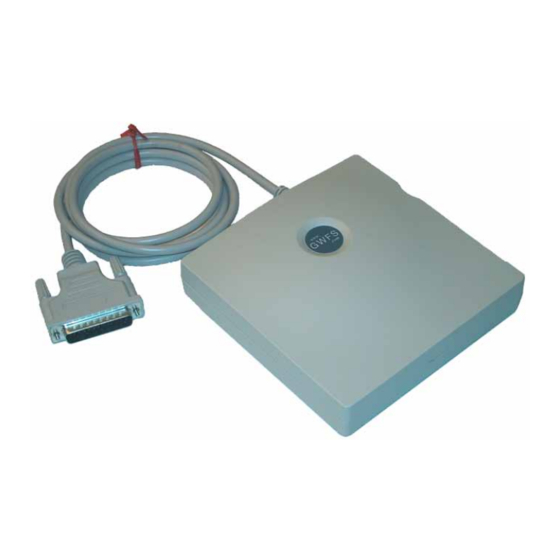

- Page 1 Model 90si Secure Fax Gateway User's Guide GateWay Systems, Inc. Secure Fax Products Virginia, USA Tel: 804-796-1900 Toll-Free: 877-951-9800 Fax: 804-796-1116 E-Mail: info@gwfs.com Web: www.gwfs.com Help Line: 877-951-9814 Revision 4.4 11/4/2010...
-
Page 2: 90Si Quick Reference Guide
Your 90si comes from the factory set for the Secure Only mode, whereby the commercial (COTS) fax connects to the 90si’s FAX jack (the other two phone jacks remain empty) and the 90si’s RS-232 Data cable connects to the Secure Data port of your crypto device. In this configuration the COTS fax can only be used for classified transac- tions with the crypto in Secure Data Mode. -
Page 3: Table Of Contents
What's New ..........5 General Description and Bebefits of the 90si ....... .5 What in the Box . - Page 4 The 90si Front Panel LED's........
-
Page 5: Getting Started
(the 90si like electronics that they build into their faxes) along with the fax machine. Be- ing an external device, you retain your investment in the 90si and replace only the COTS fax machine (at COTS prices) when necessary. -
Page 6: Looking At Your 90Si
GateWay Fax Systems, inc. 1 .3 Looking at your 90si The figures below indicate the location and functions of the 90si buttons, indicators and connectors. Old -vs- New 90si: • Old 90si has DIP switches on bottom. • New Async-Capable 90si does not. -
Page 7: Installation
Secure Voice, Secure Data and Clear Voice modes. It is for this reason that we recommend that you choose one of the more basic COTS faxes to connect to your 90si. All of the COTS faxes automated features will not function in the Secure environment. -
Page 8: Secure Only Configuration (Recommended)
Public or Unclassified documents as well; see Section 2.3.2 Dual-Mode Considerations. If your 90si is factory fresh, it is already pre-set to operate in this mode. If it has been in another location or you are unsure of the current setting, set the Configuration to (01) Secure Only. See Section 2.4, Setting Your Cho- sen Configuration for instructions on how to do this. -
Page 9: 1-Line Dual-Mode
1 telephone line. See Section 2.3.6. TEL LINE PSTN Secure Telephone / Crypto (Set to Async 9.6kbps) Figure 2: 1-Line, Dual-Mode Configuration help line: 877-951-9814 Model 90si Secure Fax Gateway Phone Line Telephone Wall Jack Commercial-Off-The-Shelf Fax Machine LINE (Set to Auto-Answer on 1 Ring) -
Page 10: 2-Line Dual-Mode
877-951-9800, info@gwfs.com TEL LINE Secure Telephone PSTN / Crypto (Set to Async 9.6kbps) Figure 3: 2-Line, Dual-Mode Configuration help line: 877-951-9814 Model 90si Secure Fax Gateway Unclass Fax Phone Line Telephone Wall Jack Commercial-Off-The-Shelf Fax Machine LINE (Set to Auto-Answer on 1 Ring) "Secure"... -
Page 11: 1-Line Dual-Mode With 910 Option
(Set to Async 9.6kbps) Figure 4: 1-Line, Dual-Mode with 910 Option Configuration www.gwfs.com, 877-951-9800, info@gwfs.com TEL LINE PSTN / Crypto help line: 877-951-9814 Model 90si Secure Fax Gateway Commercial-Off-The-Shelf Fax Machine LINE (Set to Auto-Answer on 1 Ring) Phone Model 910... -
Page 12: 1-Line Dual-Mode With An A/B Switch
Setting Your Chosen Configuration If you are using the Secure Only Configuration and your 90si is new from the factory, you need not set the config- uration. If on the other hand your 90si is not factory new or you have chosen one of the Dual-Mode configurations you will need to tell the 90si what configuration you will be using. -
Page 13: Print The Default Settings List
Entering the Default Settings mode is done with the Secure Telephone / Crypto idle (not in Secure Data mode) by pressing and holding the Reset button on the side of the 90si for five (5) to six (6) seconds until both Green and Red lights extinguish. - Page 14 Mil STD Handshake w/FEC (12) Mil STD Broadcast w/o FEC (13) Mil STD Broadcast w/FEC Misc.: (select any) ->(16)<- STE Connected (17) OMNI, Sectera, vIPer, other Connected www.gwfs.com, 877-951-9800, info@gwfs.com help line: 877-951-9814 Model 90si Secure Fax Gateway User's Guide page 14...
-
Page 15: Setting Up Your Encryption Device
Objective: To set the Secure Signalling Mode to SCIP, Secure Data Mode to Asynchronous 9.6 Kbps and SCIP Line Quality to Normal Set your 90si Default Settings to: (05) Full Duplex, (08) Async 9600, (16) STE Connected and your chosen con- figuration (See Section 2.3 Choose a Configuration). -
Page 16: Omni / Omnixi
3, ENTER MENU If your OMNI / 90si does not work after you make the above changes, confirm the following setting. To view these settings press the Menu button followed by each individual code digit followed by Enter. For example, 2,1 would be Menu, 2, Enter, 1, Enter to view the Term Control setting. -
Page 17: General Dynamics Sectera Wireline Terminal
Objective: To set the Secure Data mode to Async, 9600 bps. Set your 90si Default Settings to: (05) Full Duplex, (08) Async 9600, (17) OMNI, Sectera, vIPer, other Con- nected and your chosen configuration (See Section 2.3 Choose a Configuration). -
Page 18: General Dynamics Sectera Viper
Auto-Answer Data Auto Lock The vIPer Red Data Port has a 9-pin D type connector while the 90si ships with a Female DB25 Data Port con- nector. A cable adapter is required as described in the following table. ---vIPer Side---... -
Page 19: Motorola Stu-Iib & Stu-Iiia
Objective: To set Secure Data Mode for 2.4/9.6 Kbps, Full Duplex, Synchronous for use with Mil-Std-188-161/ STANAG 5000 protocols only. Set your 90si Default Settings to: (05) Full Duplex, (10) Mil STD Handshake w/o FEC, (17) OMNI Sectera vIPer other Connected and your chosen configuration (See Section 2.3 Choose a Configuration). -
Page 20: Using Your 90Si
The Easy-Fax 90si STU-III Gateway uses an external power supply. Since the 90si has no ON/OFF switch, the device is “on” as soon as power is applied. To confirm that the 90si is properly powered and ready to operate, ensure that the Green "POWER" light is illuminated and that the Red "FAULT" indicator is extinguished. -
Page 21: Receiving A Public Fax (Dual-Mode Configurations Only)
To send a public (unclassified) fax, simply place the call as you normally would using the fax machine handset, hook button (speakerphone) or one of its' programmed auto-dial buttons. Note: The 90si will not allow you to send a public facsimile while the secure telephone is in the secure data mode. 3 .5 Receiving a Public Fax (Dual-Mode Configurations Only) Receiving a public (unclassified) fax differs depending on whether you are using one or two telephone lines. -
Page 22: Selecting A Transmit Protocol
ISDN line, the overwhelmingly large number of STE's connected to PSTN lines will drive most secure fax users to this mode. As a result, the 90si comes with the Async Protocol (with a baud rate of 9600 bps) set as the factory default. -
Page 23: Setting And Using The Default Transmit Protocol
Setting and Using the Default Transmit Protocol There are two ways to tell the 90si what protocol you wish it to use when transmitting a secure fax. One way is using the Default Protocol Settings described in this section and the other is using the One-Time Codes described in the next section. -
Page 24: Using A One-Time Transmit Protocol Code
One-Time Code and press the Start or Send button. Once your crypto cycles back out of Secure Data mode, the 90si will return to the default settings. -
Page 25: If There's A Problem
Interconnect Cables Insure that all of the cables that connect to the COTS fax, 90si and Secure Telephone are seated properly. It might be a good idea to remove each of them, one at a time, and re-seat the connectors. -
Page 26: Send And Receive A Public Fax
Insure that you can send and receive a public fax. If you are using the Secure Only configuration, temporarily disconnect the fax from the 90si and connect it directly to the outside phone line. When you test receiving a fax, be sure to listen to how may rings occur before the fax answers. -
Page 27: Standard Warranty
Input: 100-240 VAC Auto Sensing, 50-60 Hz, Output: 5 VDC, 4A Regulated, Phys: 4x2.5x1.7 in, .75 Lb, Regula- tory: UL, cUL, CE Physical 90si: 5.52” x 5.52” x 1.5” (WxHxD), 1 lb, 2.5 oz; shipping box: weight 3.5 Lb, 12.5” x 8.5” x 4.5” Standard Warranty 1 year parts-and-labor Included in the Box 90si with integral 6’... -
Page 28: Related Web Links
7 .0 Related Web Links We have provided a few useful weblinks below: Model 90si Secure Fax Gateway: 90si Presentations and Images: 90si Choices: 90si User’s Guide in PDF format: Model 690 Mid-Volume Secure-Fax System: Model 390 Low-Volume Secure-Fax System: Company Information: Technical Help:... -
Page 29: Consumer Information And Fcc Requirements
REN for your calling area. • If your 90si causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice isn’t practical, you will be notified as soon as possible. - Page 30 If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service. • If you experience trouble with the 90si. there are no repairs that can be made by the customer. For repair/ warranty information please contact: GWFS Customer Service http://www,gwfs.com...
-
Page 31: Glossary
90si User’s and Reference Guides. Asynchronous Async for short, Asynchronous refers to the way in which data is passed between the 90si and the attached Secure Phone. Specifically, no physical "clock" signal is generated by the Secure Phone. Instead, the timing data is em- bedded in the data and must be decoded by the 90si and the far end secure fax. - Page 32 Red Data Port The term Red Data Port refers to the RS-232 serial interface on the crypto device to which the 90si's "STE" cable connects. It is also re- ferred to simply as Data Port. RS-232 Recommended Standard 232 is an industry...
- Page 33 "clocked" between the 90si and the Secure Phone using clock signals generated by the Secure Phone. The clock signal tells the 90si what "data rate" the Secure Phone is using. Two-Line Dual-Mode Configuration This 90si configuration allows the attached fax to function as BOTH a secure fax AND a non- secure fax.
