Setting Up Your Encryption Device

The following sections provide step-by-step procedures for setting your secure telephone / encryption device for
Asynchronous 9600bps secure data mode.

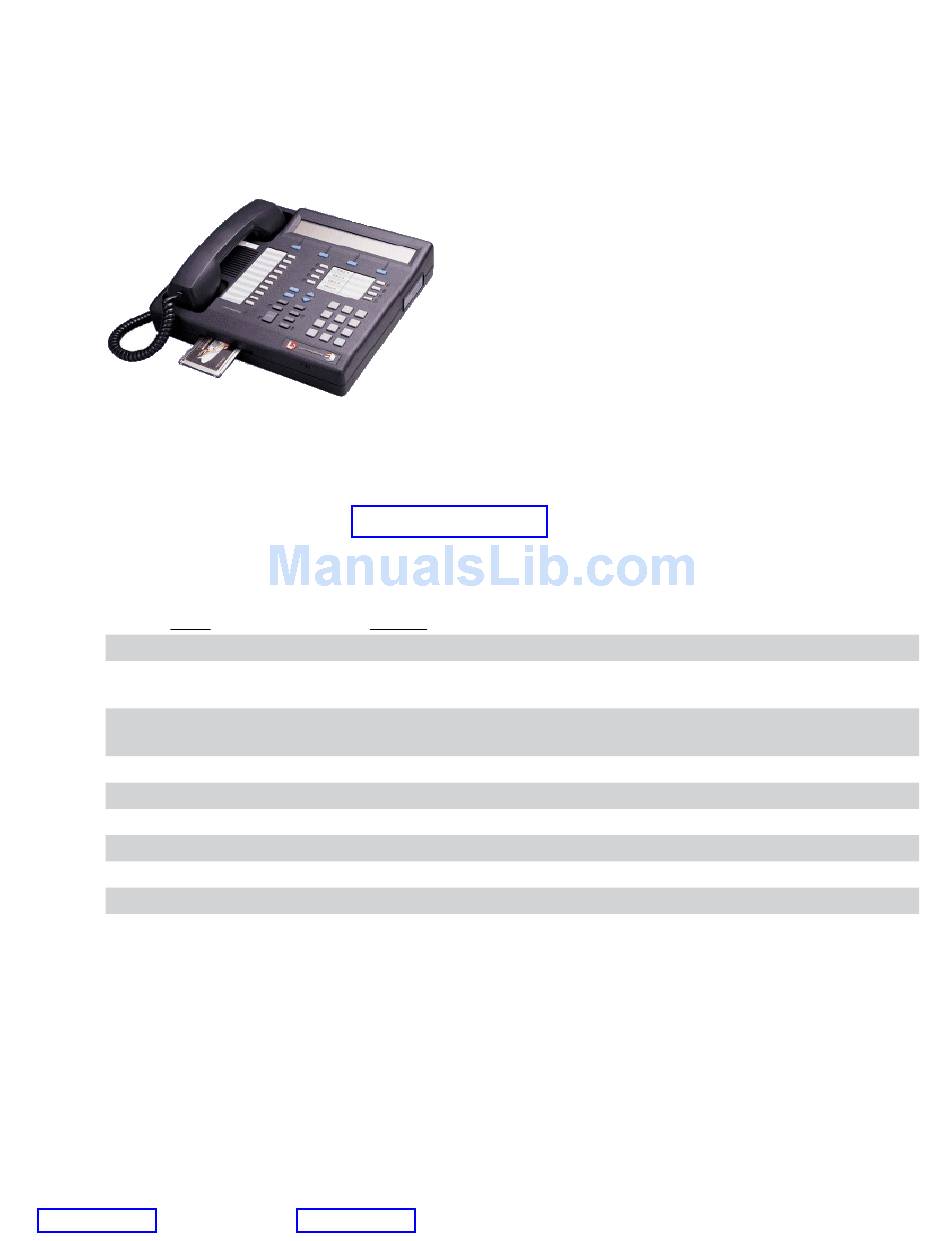

2 .6 .1 L-3 Secure Terminal Equipment (STE)
Objective: To set the Secure Signalling Mode to SCIP, Secure Data Mode to Asynchronous 9.6 Kbps and SCIP
Line Quality to Normal
Set your 90si Default Settings to: (05) Full Duplex, (08) Async 9600, (16) STE Connected and your chosen con-
figuration (See Section 2.3 Choose a Configuration).
For STE's with software V2.4 and later:
While On-Hook (to permanently set)
Press
MODE
SCROLL
CHANGE
CHANGE (until)
SCROLL
CHANGE (until)
SCROLL (until)
CHANGE (until)
SCROLL
MODE
Note that to permanently set the Secure Data mode, the handset must be on-hook. If you do these procedures with
the handset off-hook, the changes hold for the current call only. When you hang up, the Secure Data settings will
revert to the previous settings.
www.gwfs.com, 877-951-9800, info@gwfs.com
Display
SECURE SIGNALLING MODE: SCIP
SECURE DATA: /STU SECURE VOICE (shows current secure data and
secure voice settings)
(Example) SECURE DATA: S19.2 (Synchronous, 19.2Kbps) (shows cur-
rent secure data settings)
SECURE DATA: Asynchronous
(Example) SECURE DATA: 19.2 Kbps
SECURE DATA: 9.6 Kbps
SCIP LINE QUALITY: LOW (Example)
SCIP LINE QUALITY: Normal
(blank display)
help line: 877-951-9814
