Easy-Fax 90si
Secure Facsimile Gateway
Reference Guide
GateWay
www.
GWFS
Fax
Systems, Inc.
.com
Virginia, USA
Toll Free: 1-877-951-9800
Email: help@gwfs.com
http://www.gwfs.com
Revision 3.3
7 January 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Easy-Fax 90si and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GateWay Fax Systems Easy-Fax 90si

Summary of Contents for GateWay Fax Systems Easy-Fax 90si

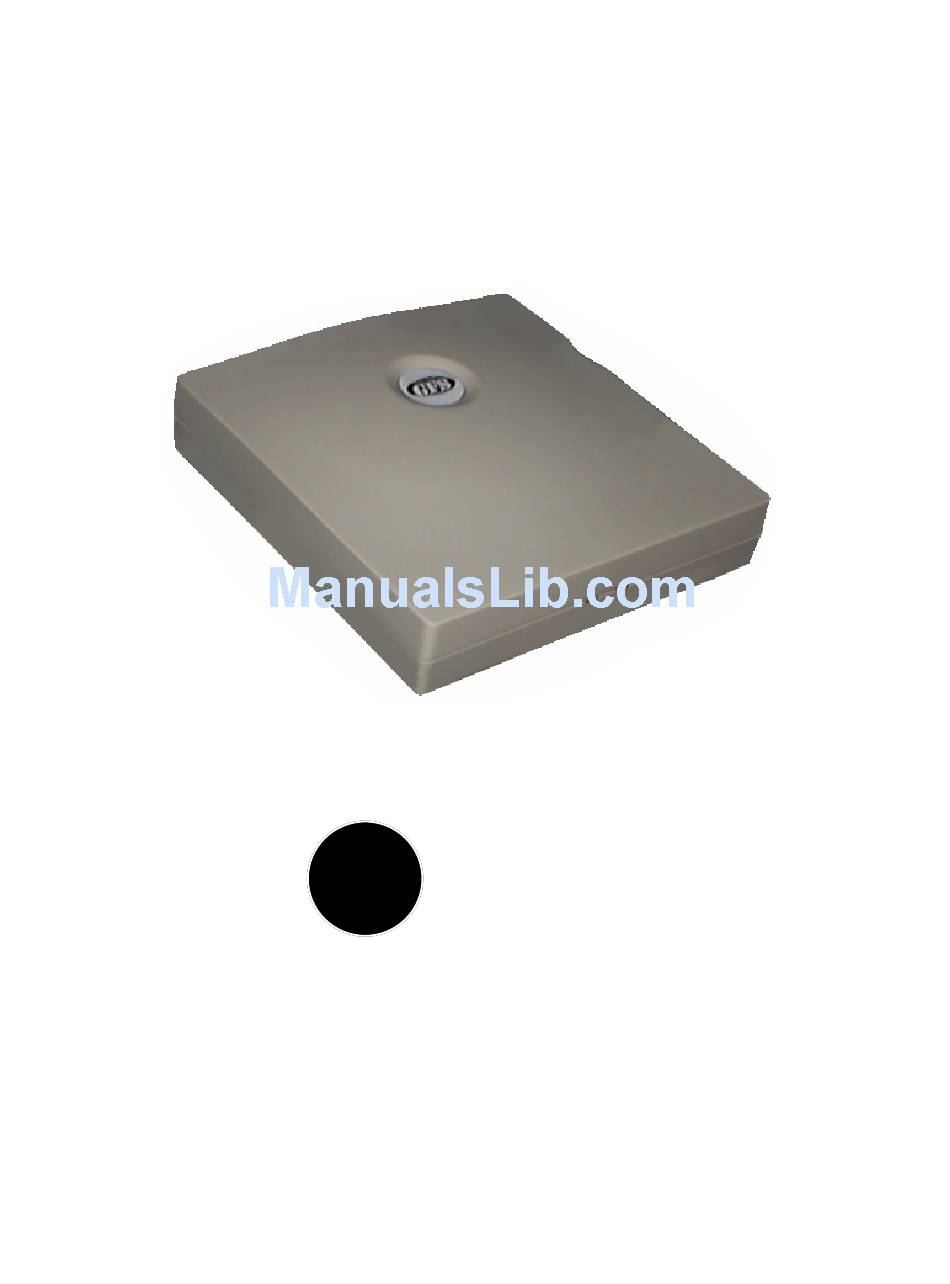

  • Page 1 Easy-Fax 90si Secure Facsimile Gateway Reference Guide GateWay www. GWFS Systems, Inc. .com Virginia, USA Toll Free: 1-877-951-9800 Email: help@gwfs.com http://www.gwfs.com Revision 3.3 7 January 2005...

  • Page 2: Table Of Contents

    Contact GFS Customer Service Glossary of Secure Facsimile Terms *1. GateWay Fax Systems, Inc. would like to gratefully acknowledge the contribution of ETR Technical Services (336-698-9358) for providing the MODEM configuration procedure for the ATT 1100. And 1910 GateWay Fax Systems, Inc., www.gwfs.com, 1-877-951-9800...

  • Page 3: Configuring Your Stu-Iii For The 90Si

    Press Program 3, 6, # 3, 4, # 3, 0, # Program GateWay Fax Systems, Inc., www.gwfs.com, 1-877-951-9800 90si Reference Guide Display Program Mode Operation Complete (Sets Synchronous) Operation Complete (Sets 4.8 Kbps, Full Duplex) SD:48 FDX SYNC (Displays new configuration)

  • Page 4: At&T, Lucent And General Dynamics 1100 (*1)

    NEXT (until…) SELECT NEXT SELECT SELECT SELECT MENU GateWay Fax Systems, Inc., www.gwfs.com, 1-877-951-9800 90si Reference Guide Display MAIN MENU / Secure Voice MAIN MENU / Secure Data Ex. SD:9.6 FDX, ASYNC / 2.4 Full Duplex 9.6 Full Duplex Async Sync SD:9.6 FDX, SYNC / previous menu...

  • Page 5: At&T, Lucent, General Dynamics 1900 Sdd (*1)

    NEXT (until…) SELECT NEXT SELECT SELECT SELECT MENU GateWay Fax Systems, Inc., www.gwfs.com, 1-877-951-9800 90si Reference Guide Display MAIN MENU / Secure Data Ex. SD:9.6 H, ASYNC,8 / 2.4 Full Duplex 9.6 Full Duplex Ex. SD:9.6 F, ASYNC,8 / async SD:9.6 F, ASYNC,8 / sync...

  • Page 6: Ge/Rca 2400

    While Off-Hook (to check set-up and/or change set-up for THIS call ONLY): Press MENU # (NO) * (YES) * (until...) GateWay Fax Systems, Inc., www.gwfs.com, 1-877-951-9800 90si Reference Guide Display RCA STU-III Type I Do You Want To Set term Options? Do You Want To Set Standard Options TONE Dialing in ON/OFF Change? Comm.

  • Page 7: Ge 9600

    While Off-Hook (to check set-up and/or change set-up for THIS call ONLY): Press MENU / DELETE # (NO) * (YES) MENU / DELETE GateWay Fax Systems, Inc., www.gwfs.com, 1-877-951-9800 90si Reference Guide Display GE STU-III Type I (then...) View KSD or ID? Configure Terminal? Control is Local/Change?

  • Page 8: Motorola Sectel 1000/1500

    If your telephone is black in color, make sure that 9.6 is displayed. If either 2.4 or 4.8 are displayed, depress the "MODEM" button until 9.6 is displayed. GateWay Fax Systems, Inc., www.gwfs.com, 1-877-951-9800 90si Reference Guide Display Ex.

  • Page 9: Motorola Sectel Mmt 1500

    If your telephone is black in color, make sure that 9.6 is displayed. If either 2.4 or 4.8 are displayed, depress the "MODEM" button until 9.6 is displayed. GateWay Fax Systems, Inc., www.gwfs.com, 1-877-951-9800 90si Reference Guide Display...

  • Page 10: Communications Ste

    CHANGE SCROLL SCROLL (until...) MODE Note that to permanently set the Secure Data mode, the handset must be on-hook. GateWay Fax Systems, Inc., www.gwfs.com, 1-877-951-9800 90si Reference Guide Display SECURE DATA: A9.6 (Asynchronous, 9.6 Kbps) Secure Data Asynchronous Secure Data Synchronous (Sets Synchronous) Ex.

  • Page 11: 90Si Status Led's

    2.4 Contact GFS Customer Service If all of these steps fail to return the unit to a "ready" state, contact Gateway Fax Systems' Customer Service Toll Free at 1-877-951-9800 or 757-312-9800, via e-mail at help@gwfs.com or via the web at http://www.gwfs.com.

  • Page 12: Glossary Of Secure Facsimile Terms

    Commercial Fax Device: A Commercial-Off-The-Shelf (COTS) "standard" Group III fax machine or computer-based fax device. Dual Mode: A 90si configuration which allows the local fax machine to communicate with both secure and commercial fax machines. FEC: (Forward Error Correction) An option available in the Mil-Std-161 mode that can decrease errors in fax transmission over noisy communication lines.
  • Page 13 90si Reference Guide STU-III: Secure Telephone Unit Generation Three. STU-IIIA: Secure Telephone Unit Generation Three Version A. US Secure telephone that can connect with a STU-IIB. GateWay Fax Systems, Inc., www.gwfs.com, 1-877-951-9800 page 13/13...
