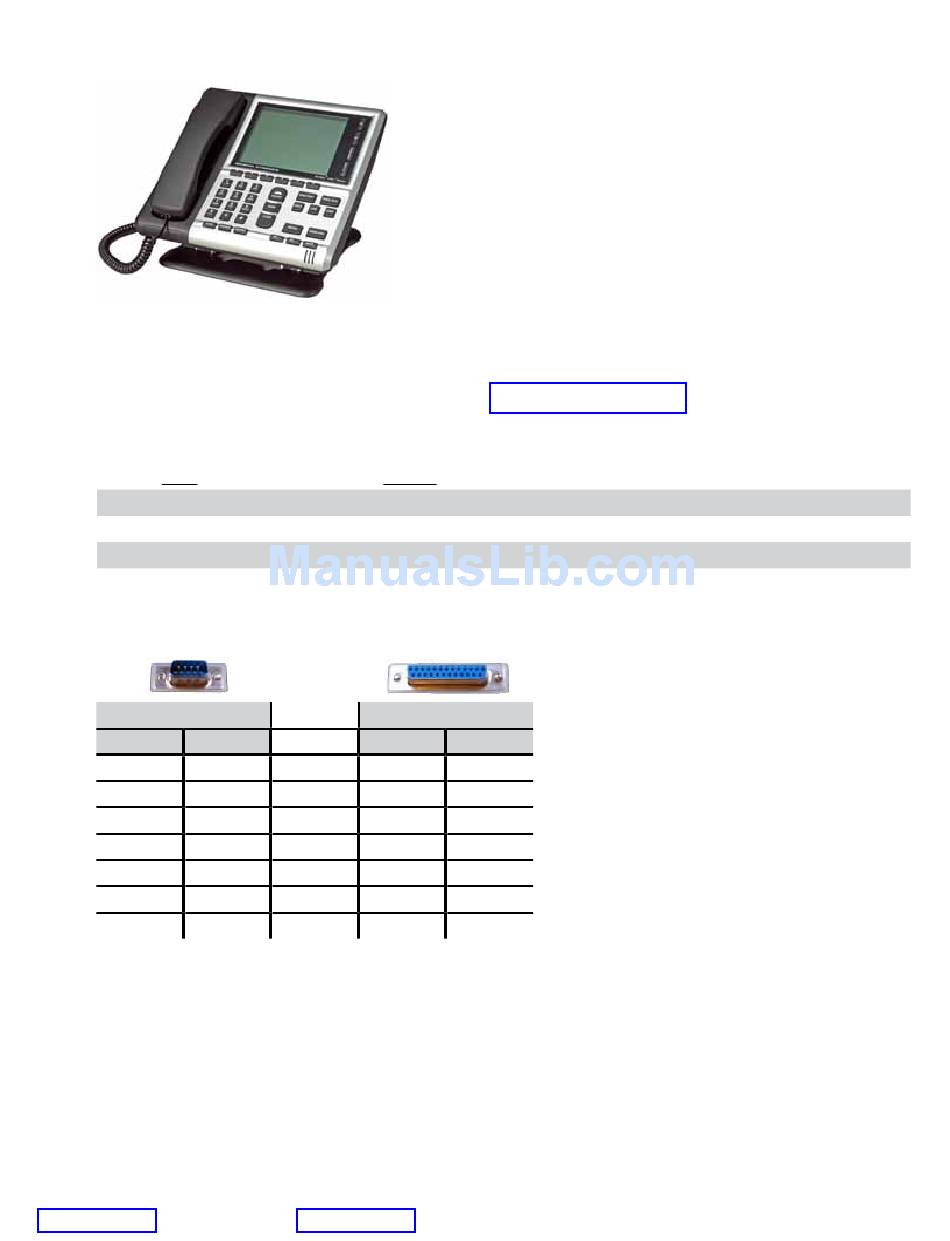

2 .6 .4 General Dynamics Sectera vIPer

Objective: To set the Red Data Port to 9600 bps.
Set your 90si Default Settings to: (05) Full Duplex, (08) Async 9600, (17) OMNI Sectera vIPer other Connected
and your chosen configuration (See Section 2.3 Choose a Configuration).
Insure the following vIPer settings:
Item
Secure Data
Red Data Port Rate
Auto-Answer Data
Auto Lock
The vIPer Red Data Port has a 9-pin D type connector while the 90si ships with a Female DB25 Data Port con-
nector. A cable adapter is required as described in the following table.
---vIPer Side---
vIPer DB9M
TXD
RXD
RTS
CTS
DSR
DTR
GND
www.gwfs.com, 877-951-9800, info@gwfs.com
Setting
Enabled
9600 bps.
Disabled (Enabled for unattended reception of secure faxes)
OFF
---90si Side---
Direction DB25F
3 <--- 2
2 --> 3
4 <-- 4
8 --> 5
6 --> 6
4 <-- 20
5 --- 7
Model 90si Secure Fax Gateway
90si
NOTE:
TD
These pin-outs represent
RD
industry standard 9-pin
RTS
to 25-pin serial data
CTS
interconnect. Such adapters
are widely available.
DSR
DTR
SD
