2 .3 .5 2-Line Dual-Mode

With this configuration your fax will function as your Primary non-secure fax as well as your Primary secure fax.
It requires two separate phone lines, one is your unclassified fax number and the other is your classified phone
number. Incoming Non-Secure fax calls will be answered automatically, as long as the fax is not otherwise pro-
cessing a secure fax. All of the automatic functions of the COTS fax will work in Non-Secure mode.
Set the Configuration to (03) 2-Line Dual-Mode. See Section 2.4, Setting Your Chosen Configuration for in-
structions on how to do this.
90si Secure Fax Gateway
5VDC Power
Supply
www.gwfs.com, 877-951-9800, info@gwfs.com
Rear Panel
"Red"
Data Port
Secure Telephone
/ Crypto
(Set to Async 9.6kbps)

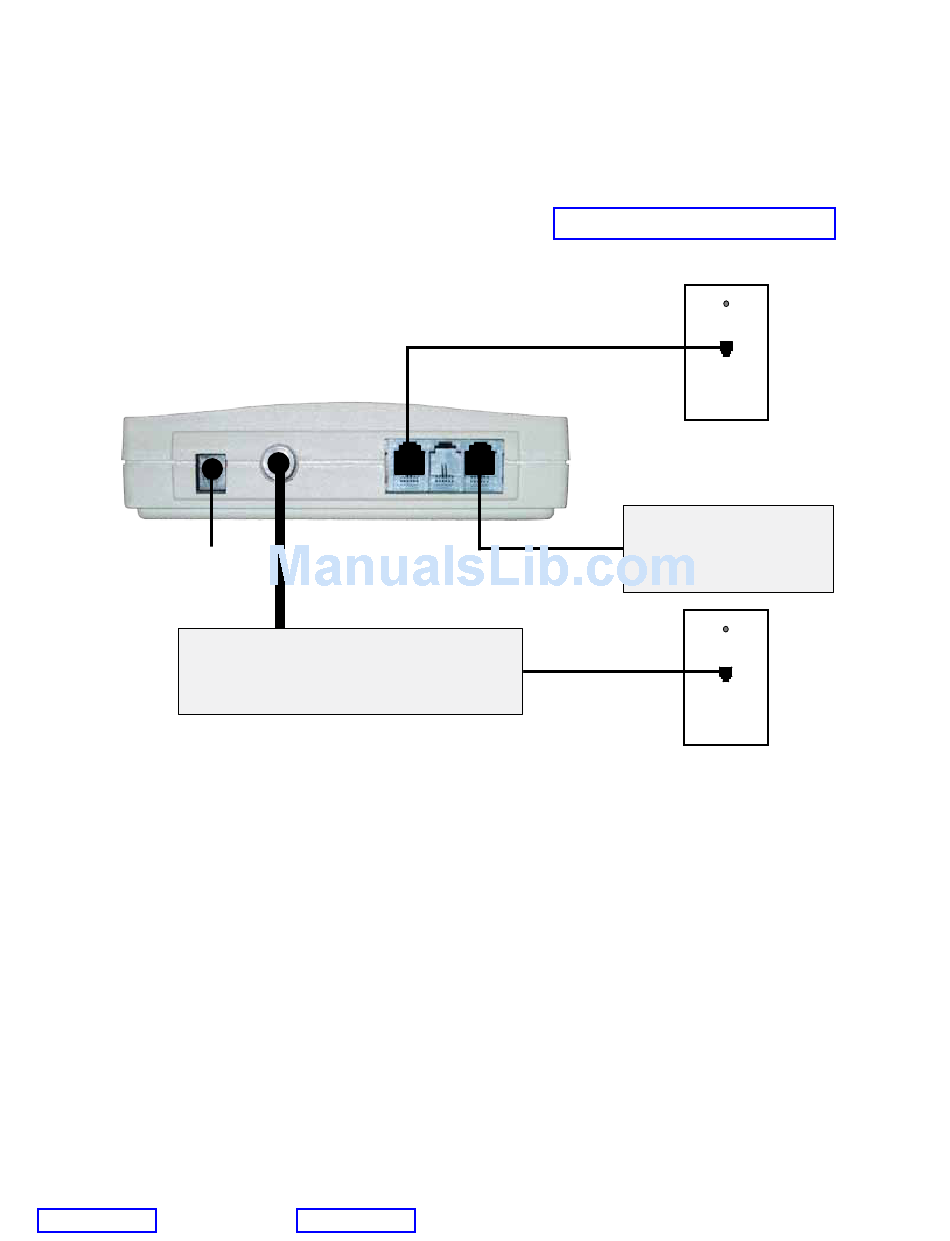

Figure 3: 2-Line, Dual-Mode Configuration
TEL LINE
FAX
LINE
PSTN
help line: 877-951-9814
Model 90si Secure Fax Gateway
Unclass Fax
Phone Line
Telephone
Wall Jack
Commercial-Off-The-Shelf
Fax Machine
(Set to Auto-Answer on 1 Ring)
"Secure"
Phone Line
Telephone
Wall Jack
User's Guide
