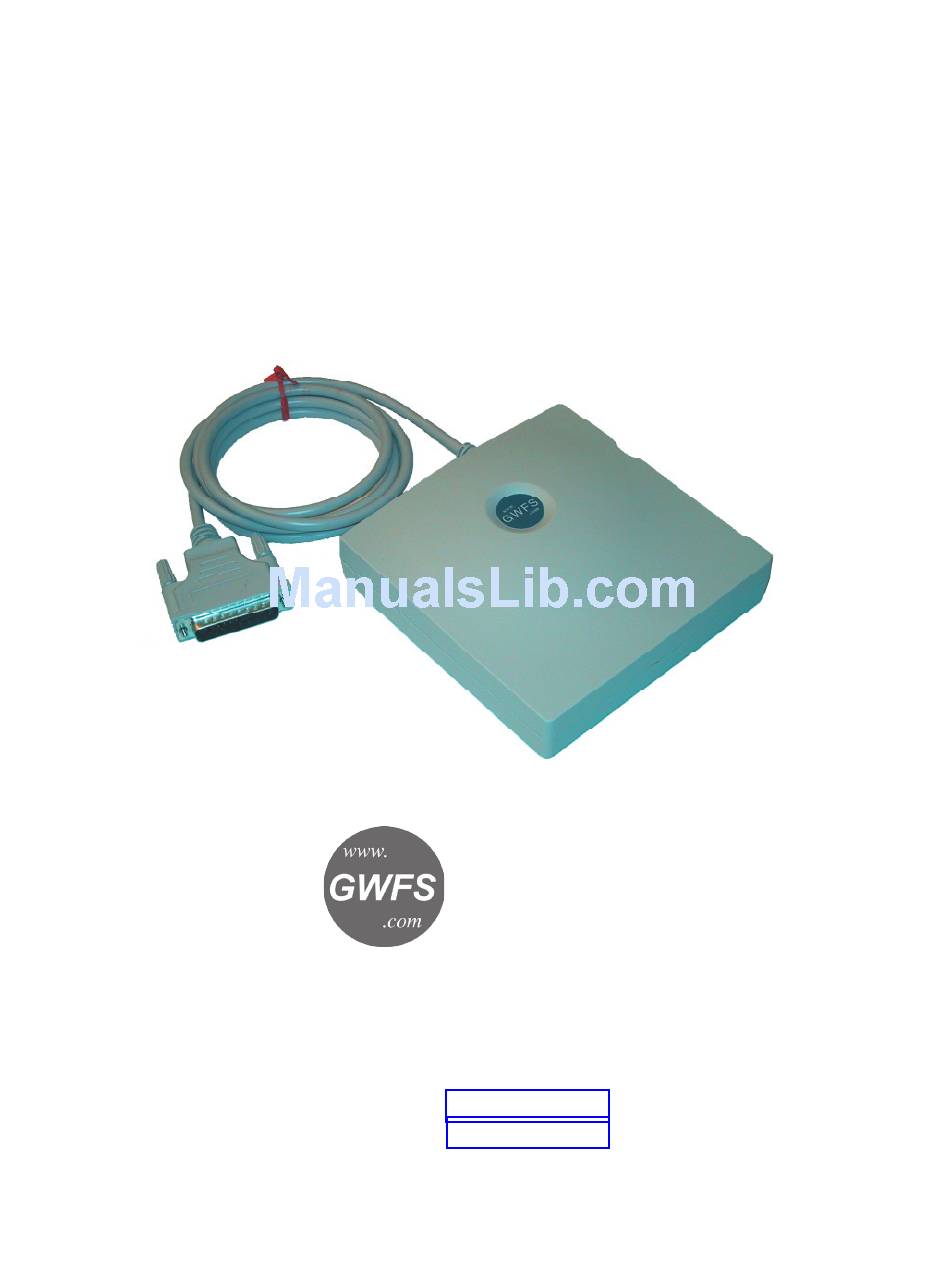

- Page 1 Model 90si Secure Fax Gateway User's Guide GateWay Systems, Inc. Secure Fax Products Virginia, USA Tel: 804-796-1900 Toll-Free: 877-951-9800 Fax: 804-796-1116 E-Mail: info@gwfs.com Web: www.gwfs.com Help Line: 877-951-9814 Revision 4.3 1/16/2010...
-
Page 2: 90Si Quick Reference Guide
Your 90si comes from the factory set for the Secure Only mode, whereby the commercial (COTS) fax connects to the 90si’s FAX jack (the other two phone jacks remain empty) and the 90si’s RS-232 Data cable connects to the Secure Data port of your crypto device. In this configuration the COTS fax can only be used for classified transac- tions with the crypto in Secure Data Mode. -
Page 3: Table Of Contents
Connecting the COTS fax, 90si and Crypto ........ -
Page 4: Getting Started
(the 90si like electronics that they build into their faxes) along with the fax machine. Be- ing an external device, you retain your investment in the 90si and replace only the COTS fax machine (at COTS prices) when necessary. -
Page 5: Looking At Your 90Si
GateWay Fax Systems, inc. Model 90si Secure Fax Gateway User's Guide Looking at your 90si The figures below indicate the location and functions of the 90si buttons, indicators and connectors. Reset Old -vs- New 90si: Button • Old 90si has DIP switches on bottom. -
Page 6: Installation
Secure Voice, Secure Data and Clear Voice modes. It is for this reason that we recommend that you choose one of the more basic COTS faxes to connect to your 90si. All of the COTS faxes automated features will not function in the Secure environment. -
Page 7: Secure Only Configuration (Recommended)
Public or Uncalssified documents as well; see Section 2.3.2 "Dual-Mode Considerations." If your 90si is factory fresh, it is already pre-set to operate in this mode. If it has been in another location or you are unsure of the current setting, set the Configuration to (01) Secure Only. See Section 2.4, Setting Your Cho- sen Configuration for instructions on how to do this. -
Page 8: 1-Line, Dual-Mode
GateWay Fax Systems, inc. Model 90si Secure Fax Gateway User's Guide Secure Non-Secure Configuration Operation Operation Description Secure Only Primary For Secure Fax operation only (factory default setting); See Section 2.3.1. 2-Line Dual- Primary Primary For primary Non-Secure fax and primary Secure fax operation Mode using 2 separate telephone lines;... -
Page 9: 2-Line Dual-Mode
GateWay Fax Systems, inc. Model 90si Secure Fax Gateway User's Guide 2.3.5 2-Line Dual-Mode With this configuration your fax will function as your Primary non-secure fax as well as your Primary secure fax. It requires two separate phone lines, one is your unclassified fax number and the other is your classified phone number. -
Page 10: 1-Line Dual-Mode With 910 Option
Setting Your Chosen Configuration If you are using the Secure Only Configuration and your 90si is new from the factory, you need not set the config- uration. If on the other hand your 90si is not factory new or you have chosen one of the Dual-Mode configurations you will need to tell the 90si what configuration you will be using. -
Page 11: Print The Default Settings List
Currently this feature is unavailable but will be provided to you, at no charge, in a future remote software up- grade. The factory Default Settings List is printed from the 90si to the attached COTS fax and looks like this. 90si Default Settings List: Configuration (select one) -
Page 12: Setting Up Your Encryption Device
GateWay Fax Systems, inc. Model 90si Secure Fax Gateway User's Guide Setting Up Your Encryption Device The following sections provide step-by-step procedures for setting your secure telephone / encryption device for Asynchronous 9600bps secure data mode. 2.6.1 L-3 Secure Terminal Equipment (STE) Objective: To set the secure data mode to Asyncronous 9.6Kbps. -
Page 13: Omni / Omnixi
(to exit) If your OMNI / 90si does not work after you make the above changes, confirm the following setting. To view these settings press the Menu button followed by each individual code digit followed by Enter. For example, 2,1 would be Menu, 2, Enter, 1, Enter to view the Term Control setting. -
Page 14: General Dynamics Sectera
GateWay Fax Systems, inc. Model 90si Secure Fax Gateway User's Guide 2.6.3 General Dynamics Sectera Objective: To set the Secure Data mode to Async, 9600 bps. 2.6.4 General Dynamics VIPER www.gwfs.com, 877-951-9800, info@gwfs.com help line: 877-951-9814 page 14... -
Page 15: Motorola Stu-Iib & Stu-Iiia
GateWay Fax Systems, inc. Model 90si Secure Fax Gateway User's Guide 2.6.5 Motorola STU-IIB & STU-IIIA Objective: Objective: To set Secure Data Mode for 2.4/9.6 Kbps, Full Duplex, Synchronous for use with Mil-Std- 1881-161/STANAG 5000 and Modified G3 Protocols only. -
Page 16: Using Your 90Si
The Easy-Fax 90si STU-III Gateway uses an external power supply. Since the 90si has no ON/OFF switch, the device is “on” as soon as power is applied. To confirm that the 90si is properly powered and ready to operate, ensure that the Green "POWER" light is illuminated and that the Red "FAULT" indicator is extinguished. -
Page 17: Receiving A Public Fax (Dual-Mode Configurations Only)
To send a public (unclassified) fax, simply place the call as you normally would using the fax machine handset, hook button (speakerphone) or one of its' programmed auto-dial buttons. Note: The 90si will not allow you to send a public facsimile while the secure telephone is in the secure data mode. Receiving a Public Fax (Dual-Mode Configurations Only) Receiving a public (unclassified) fax differs depending on whether you are using one or two telephone lines. -
Page 18: Selecting A Transmit Protocol
ISDN line, the overwealmingly large number of STE's connected to PSTN lines will drive most secure fax users to this mode. As a result, the 90si comes with the Async Protocol (with a baud rate of 9600 bps) set as the factory default. -
Page 19: Ricoh/Compat Protocols (Synchronous)
Setting and Using the Default Transmit Protocol There are two ways to tell the 90si what protocol you wish it to use when transmitting a secure fax. One way is using the Default Protocol Settings described in this section and the other is using the One-Time Codes described in the next section. -
Page 20: Using A One-Time Transmit Protocol Code
The Green light will blink a number of times. When it illuminated steady the 90si is ready send using the Mil STD Handshake w/o FEC protocol. Notes: *1 Most fax machines have a button that when depressed, returns dial-tone from the telephone system. This but- ton is often labled Hook, Manual Dial, Monitor, On Hook Dial or something to that effect. -
Page 21: If There's A Problem
Interconnect Cables Insure that all of the cables that connecte to the COTS fax, 90si and Secure Telepnone are seated properly. It might be a good idea to remove each of them, one at a time, and re-seat the connectors. -
Page 22: When All Else Fails
Insure that you can send and receive a public fax. If you are using the Secure Only configuration, temporarily disconnect the fax from the 90si and connect it directly to the outside phone line. When you test receiving a fax, be sure to listen to how may rings occur before the fax answers. -
Page 23: Digital Interface Specifications
Input: 100-240 VAC Auto Sensing, 50-60 Hz, Output: 5 VDC, 4A Regulated, Phys: 4x2.5x1.7 in, .75 Lb, Regula- tory: UL, cUL, CE Physical 90si: 5.52” x 5.52” x 1.5” (WxHxD), 1 lb, 2.5 oz; shipping box: weight 3.5 Lb, 12.5” x 8.5” x 4.5” Standard Warranty 1 year parts-and-labor Included in the Box 90si with integral 6’... -
Page 24: Related Web Links
We have provided a few useful weblinks below: Model 90si Secure Fax Gateway: http://www.gwfs.com/90si.html 90si Presentations and Images: http://www.gwfs.com/90si/more.html 90si Choices: http://www.gwfs.com/Choices/90sichoices.html 90si User’s Guide in PDF format: http://www.gwfs.com/Header/TechnicalHelp/90siusers.pdf Model 690 Mid-Volume Secure-Fax System: http://www.gwfs.com/690.html Model 390 Low-Volume Secure-Fax System: http://www.gwfs.com/390.html Company Information: http://www.gwfs.com/Footer/Moved.html... - Page 25 REN for your calling area. • If your 90si causes harm to the telephone network, the telephone company may discontinue your service temporarily. If possible, they will notify you in advance. But if advance notice isn’t practical, you will be notified as soon as possible.
- Page 26 If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service. • If you experience trouble with the 90si. there are no repairs that can be made by the customer. For repair/ warranty information please contact: GWFS Customer Service http://www,gwfs.com...
-
Page 27: Glossary
Handshake Async for short, Asynchronous refers to the A signaling option in the Mil-Std-161 mode way in which data is passed between the 90si in which the transmitting fax device looks for and the attached Secure Phone. Specifically, acknowledgements during a fax transmission. - Page 28 fidential or classified information that must be serial interface on the crypto device to which transmitted in a secure manner. This term is the 90si's "STE" cable connects. It is also re- alternately used to describe the equipment used ferred to simply as Data Port.
- Page 29 "clocked" between the 90si and the Secure Phone using clock signals generated by the Secure Phone. The clock signal tells the 90si what "data rate" the Secure Phone is using. Two-Line Dual-Mode Configuration This 90si configuration allows the attached fax to function as BOTH a secure fax AND a non- secure fax.
