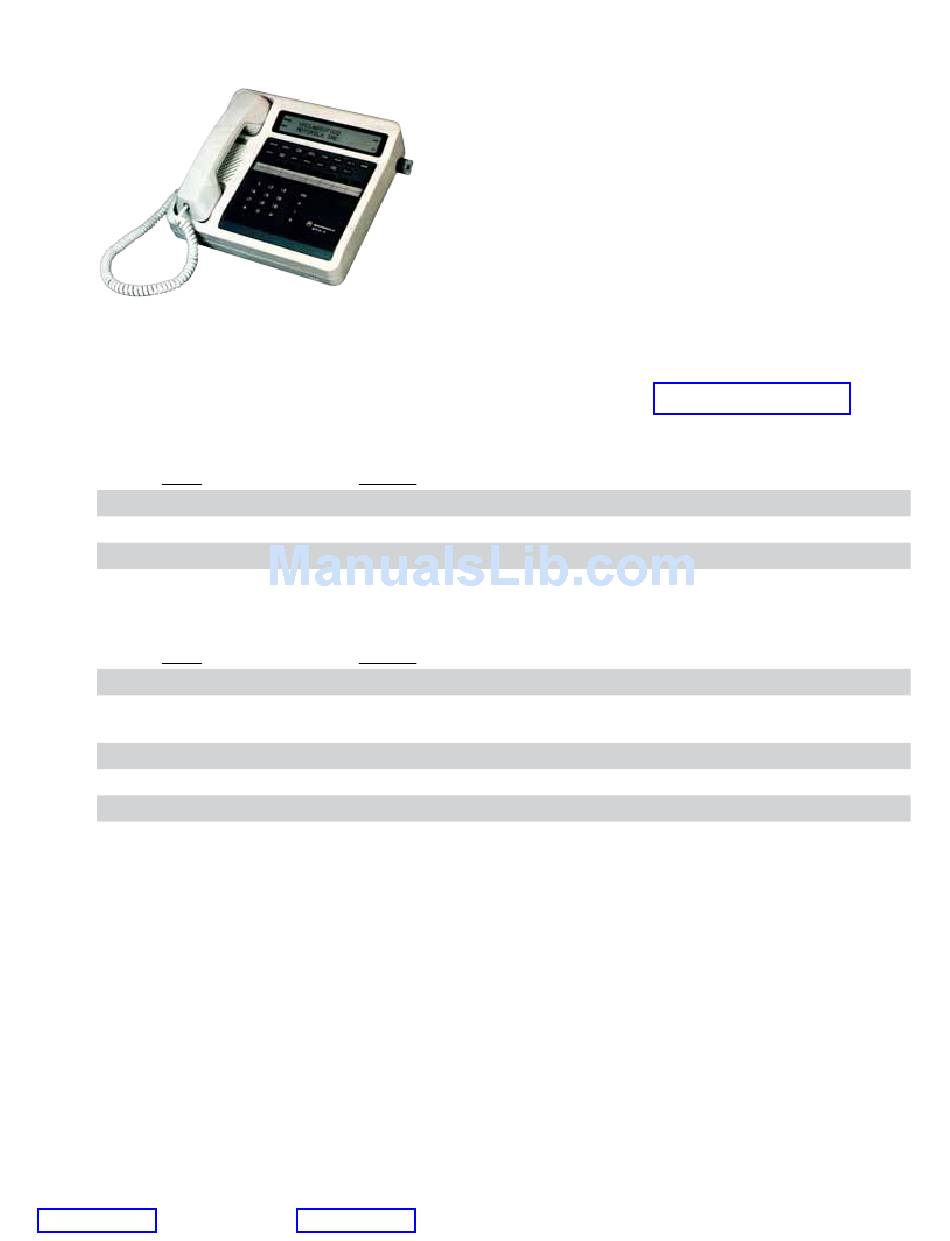

2 .6 .5 Motorola STU-IIB & STU-IIIA
Objective: To set Secure Data Mode for 2.4/9.6 Kbps, Full Duplex, Synchronous for use with Mil-Std-188-161/
STANAG 5000 protocols only.
Set your 90si Default Settings to: (05) Full Duplex, (10) Mil STD Handshake w/o FEC, (17) OMNI Sectera
vIPer other Connected and your chosen configuration (See Section 2.3 Choose a Configuration).
While Off-Hook and in CLEAR mode:
Press
PRGM
SCROLL (unitl...)
PRGM
While On-Hook:
Press
PRGM
SCROLL
*
SCROLL (until...)
#
PRGM
Note:
Make sure that "HD" DOES NOT appear in the display. If it does, press the "HALF-DUPLEX" button to make it
disappear.
www.gwfs.com, 877-951-9800, info@gwfs.com
Display
(Example) DATA = 2400 ASYNC
DATA = SYNCHRONOUS
PRGM (current call status displayed)
Display
PRGM (enunciator in display)
PLEASE WAIT (and then)
# for COMSEC * TO SET OPTIONS
PRESS SCROLL TO CONTINUE
(Example) DATA=2400 ASYNC # TO CHANGE
DATA=SYNCHRONOUS # TO CHANGE
PRGM (current call status displayed)
help line: 877-951-9814
