To send a public (unclassified) fax, simply place the call as you normally would using the fax machine handset,
hook button (speakerphone) or one of its' programmed auto-dial buttons.
Note: The 90si will not allow you to send a public facsimile while the secure telephone is in the secure data mode.
3 .5

Receiving a Public Fax (Dual-Mode Configurations Only)

Receiving a public (unclassified) fax differs depending on whether you are using one or two telephone lines.
Please insure that your COTS fax set to auto-answer as a fax on 1 or 2 rings.
With a Two-Line Dual-Mode configuration, public (unclassified) faxes will be received unattended.
With a One-Line Dual-Mode configuration the following procedure applies:
Step
1.
2.
3.
3 .6

90si Status Lights

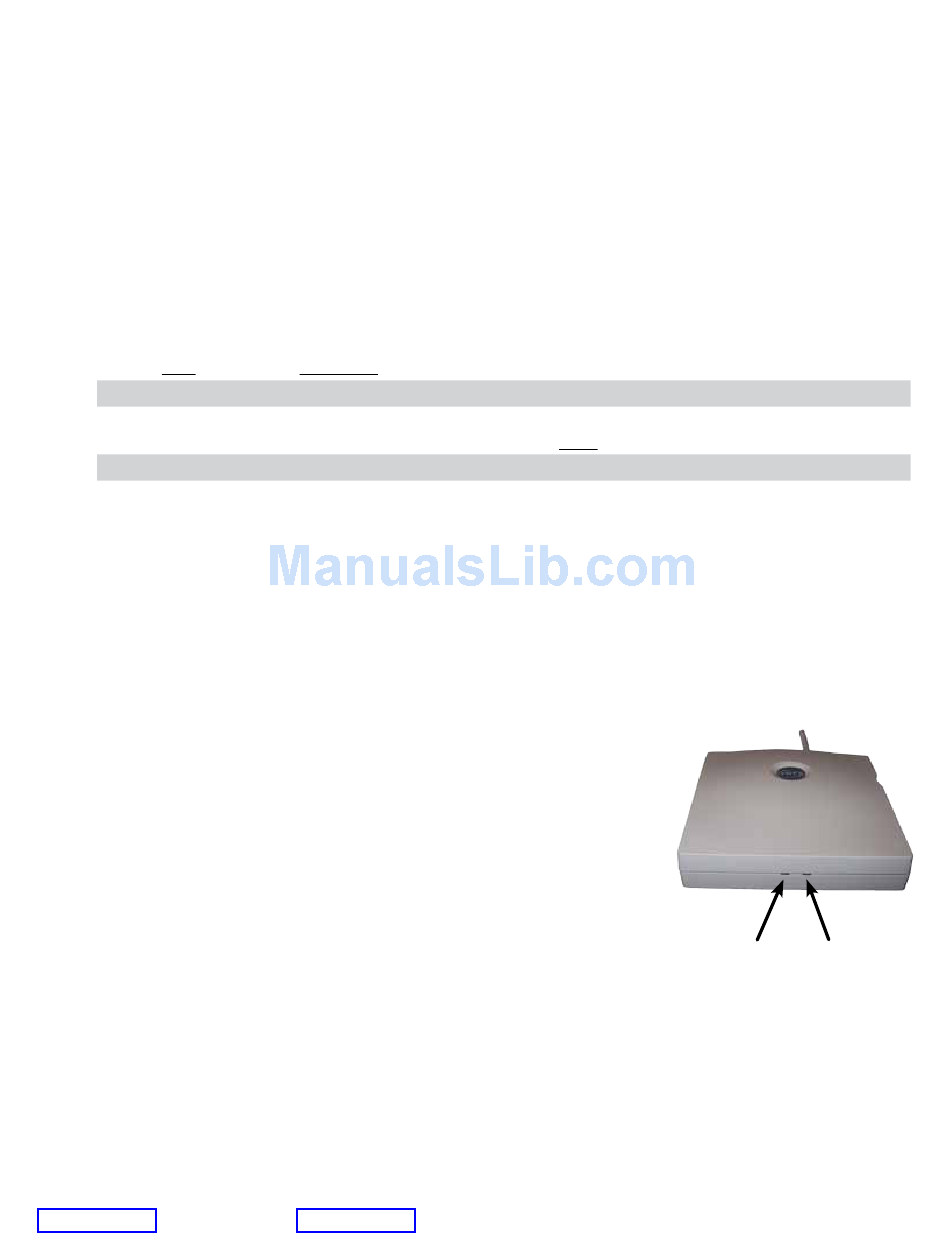

The 90si has two rectangular LED's protruding from the front of the unit as shown in this picture. One is green
and is labeled (on the bottom of the unit) POWER, the other is red and is labeled FAULT. They are used together
to indicate different status and error conditions as described below.

Power-up:

Note: Before applying power to the 90si, make sure that all cables are securely connected and that your commer-
cial fax device is in Auto-Receive (Fax) mode and answers on 1 or 2 rings.
There are a series of LED indications during the 90si power-up sequence. Be-
fore power is supplied to the unit, both LED's will be extinguished. When power
is initially applied, the green "POWER" LED will flash intermittently indicating
that a self-test is in progress. Once self-test is successfully completed, the green
"POWER" LED will illuminate. The 90si is now in the "ready" state.

Communication Errors:

If an error occurs during a reception or transmission of a fax, the red "FAULT"
LED will illuminate. This indicates that a communications error has occurred.
The unit will still operate. The red "FAULT" LED will go out after 90 seconds
or once a new transmission begins.

System Errors:

Flashing green and red LED's indicate that the 90si has detected an internal failure during self-test at power up, or
during normal operation of the unit. If this occurs, press the white "RESET" button located on the right side of the
unit. This will restart the 90si and should return it to the "ready" state (green "POWER" LED on, red "FAULT"
LED off). If it does not, depress the "RESET" button a second time. If this is ineffective, unplug the unit from the
wall, wait a moment, and plug it back in.
www.gwfs.com, 877-951-9800, info@gwfs.com
Procedure
Answer the incoming call on your secure telephone
Once the caller indicates a public fax document, is forthcoming, depress the "aster-
isk" (*) key on the secure telephone twice
Standby as the fax is received and printed
help line: 877-951-9814
Model 90si Secure Fax Gateway
Power
Indicator
(Green)
User's Guide
Fault
Indicator
(Red)
page 21
