General information
General information
About the Cisco TelePresence Server 7010
The Cisco TelePresence Server 7010 (TelePresence Server) is a technologically advanced media processor,
combining continuous presence high definition video conferencing and the highest possible voice quality.
Package contents
The following items are included with the TelePresence Server. Verify that you have these items before
installing the device:
Console cable
n
Power cable
n
Rack mounting kit
n
Port and LED locations
The following diagrams show the positions of ports and LEDs on the front and rear of the unit.

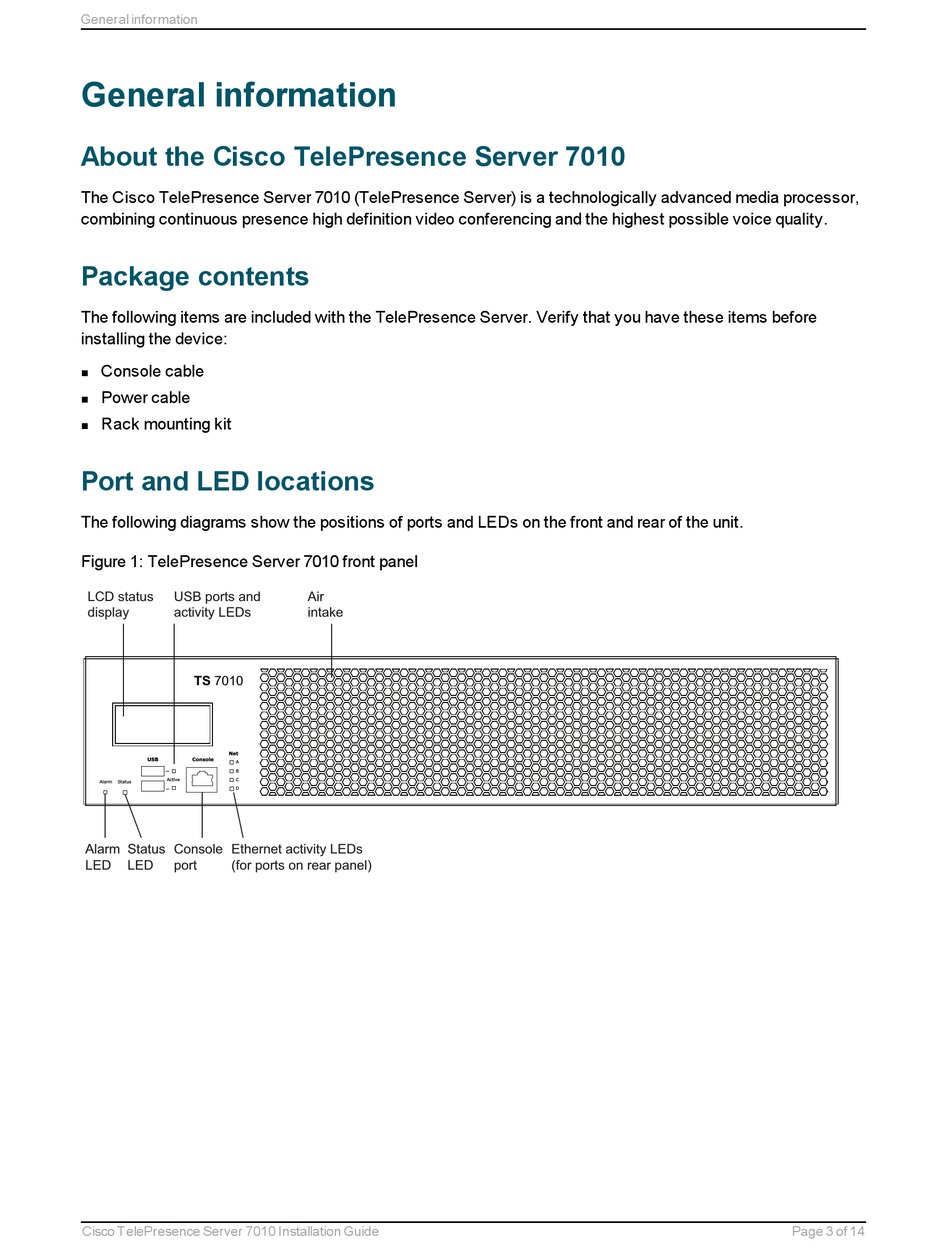

Figure 1: TelePresence Server 7010 front panel
LCD status
USB ports and
display
activity LEDs
TS 7010
Net
USB
Console
A
B
Active
C
Alarm
Status
D
Alarm
Status
Console
Ethernet activity LEDs
LED
LED
port
(for ports on rear panel)
Cisco TelePresence Server 7010 Installation Guide
Air
intake
Page 3 of 14
