General information

About the Cisco TelePresence Server 7010

The Cisco TelePresence Server 7010 (Cisco TS 7010) is a technologically advanced
media processor, combining continuous presence high definition video conferencing
and the highest possible voice quality.

Package contents

The following items are included with the Cisco TS 7010. Verify that you have these
items before installing the device:
Console cable

Power cable

Rack mounting kit


Port and LED locations

Figure 1 and Figure 2 show the position of ports and LEDs on the unit.

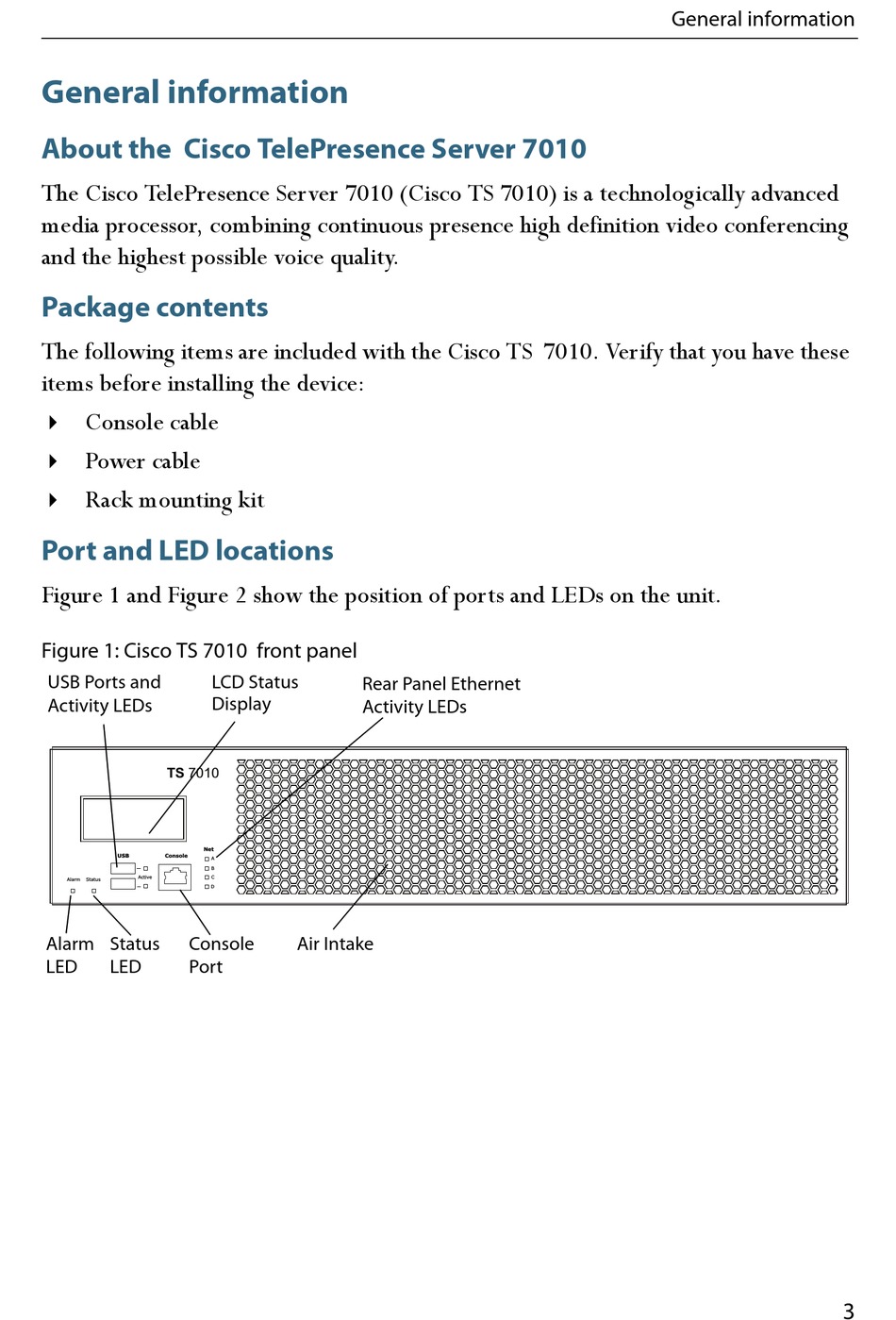

Figure 1: Cisco TS 7010 front panel
USB Ports and
Activity LEDs
TS 7010
Net
USB Console
A
B
Active C
Alarm Status
D
Alarm Status Console
LED LED Port
LCD Status
Rear Panel Ethernet
Display
Activity LEDs
Air Intake
General information
3
