General information

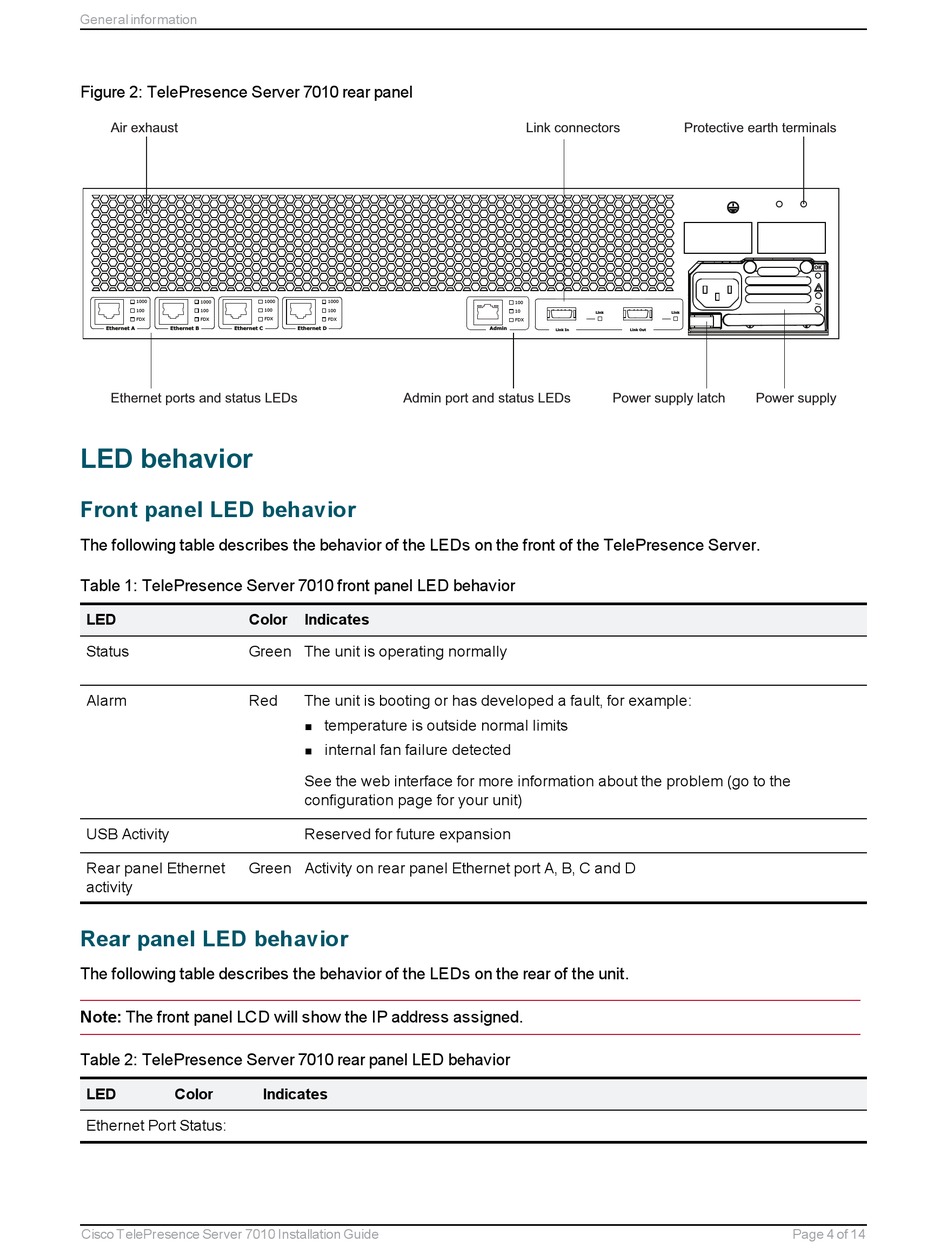

Figure 2: TelePresence Server 7010 rear panel
Air exhaust
1000 1000
100 100
FDX FDX
Ethernet C
Ethernet A Ethernet B
Ethernet ports and status LEDs

LED behavior

Front panel LED behavior

The following table describes the behavior of the LEDs on the front of the TelePresence Server.
Table 1: TelePresence Server 7010 front panel LED behavior
LED Color
Status Green The unit is operating normally
Alarm Red
USB Activity
Rear panel Ethernet Green Activity on rear panel Ethernet port A, B, C and D
activity

Rear panel LED behavior

The following table describes the behavior of the LEDs on the rear of the unit.
Note: The front panel LCD will show the IP address assigned.
Table 2: TelePresence Server 7010 rear panel LED behavior
LED Color
Ethernet Port Status:
Cisco TelePresence Server 7010 Installation Guide
1000 1000
100 100
FDX FDX
Ethernet D
Admin port and status LEDs
Indicates
The unit is booting or has developed a fault, for example:
temperature is outside normal limits
n
internal fan failure detected
n
See the web interface for more information about the problem (go to the
configuration page for your unit)
Reserved for future expansion
Indicates
Link connectors
100
10
Link
FDX
Admin
Link In Link Out
Power supply latch
Protective earth terminals
OK
!
Link
Power supply
