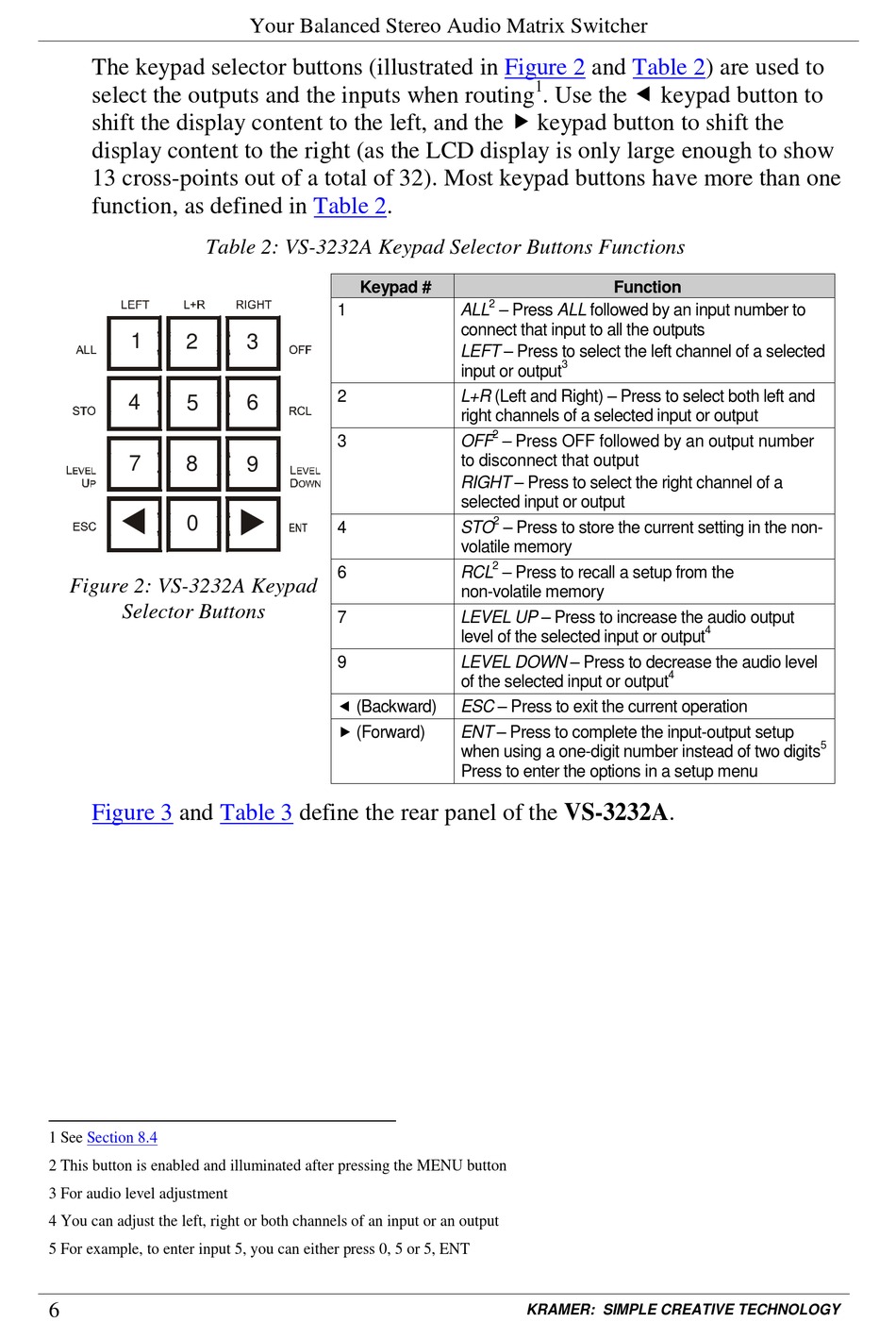

The keypad selector buttons (illustrated in
select the outputs and the inputs when routing
shift the display content to the left, and the  keypad button to shift the
display content to the right (as the LCD display is only large enough to show
13 cross-points out of a total of 32). Most keypad buttons have more than one
function, as defined in

Table 2: VS-3232A Keypad Selector Buttons Functions

1
2
4
5
7
8
0
Figure 2: VS-3232A Keypad
Selector Buttons
Figure 3
and
1 See
Section 8.4
2 This button is enabled and illuminated after pressing the MENU button
3 For audio level adjustment
4 You can adjust the left, right or both channels of an input or an output
5 For example, to enter input 5, you can either press 0, 5 or 5, ENT
6
Your Balanced Stereo Audio Matrix Switcher
Table
2.
Keypad #
1
3
2
6
3
9
4
6
7
9
 (Backward)
 (Forward)
Table 3
define the rear panel of the VS-3232A.
Figure 2
and
. Use the  keypad button to
1
Function
2
ALL
– Press ALL followed by an input number to
connect that input to all the outputs
LEFT – Press to select the left channel of a selected
3
input or output
L+R (Left and Right) – Press to select both left and
right channels of a selected input or output
2
OFF
– Press OFF followed by an output number
to disconnect that output
RIGHT – Press to select the right channel of a
selected input or output
2
STO
– Press to store the current setting in the non-
volatile memory
2
RCL
– Press to recall a setup from the
non-volatile memory
LEVEL UP – Press to increase the audio output
level of the selected input or output
LEVEL DOWN – Press to decrease the audio level
of the selected input or output
ESC – Press to exit the current operation
ENT – Press to complete the input-output setup
when using a one-digit number instead of two digits
Press to enter the options in a setup menu
KRAMER: SIMPLE CREATIVE TECHNOLOGY
